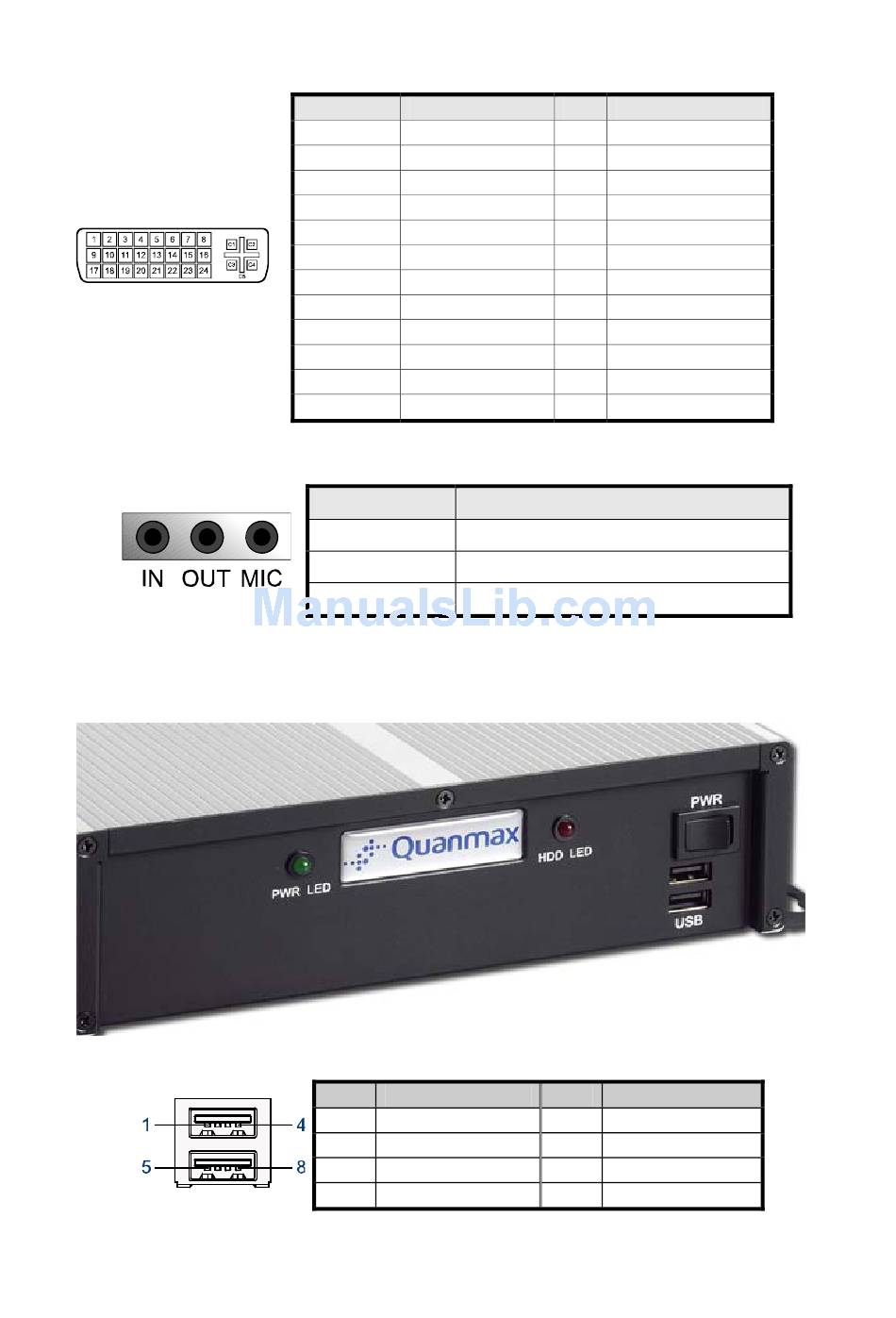

Front I/O Panel
QDSP-2020 User's Manual
Pin Signal Name
1 TX2N
3 GND
5 TX5P
7 SD_DATA
9 TX1N
11 GND
13 TX4P
15 VGA_EN
17 TX0N
19 GND
21 TX6P
23 TCLP

Table 8 DVI-I Connector (DVI)

Connector Function
MIC MIC In
OUT LINE Out
IN LINE In

Table 9 Audio Connectors (Audio)

USB2.0 Type A Connector
Pin Signal Name
1 +5V
2 USB1-
3 USB1+
4 GND
26
Pin Signal Name
2 TX2P
4 TX5N
6 SD_CLK
8 VSYNC
10 TX1P
12 TX4N
14 VGA_PWR
16 HPD
18 TX0P
20 TX6N
22 GND
24 TXLN
Pin Signal Name
5 +5V
6 USB0-
7 USB0+
8 GND
Chapter 5
