Internal Jumpers

Jumper Settings
To ensure correct system configuration, the following section describes how to set the
jumpers to enable/ disable or change functions. For jumper descriptions, please refer
to the table below.
1
2
QDSP-2020 User's Manual

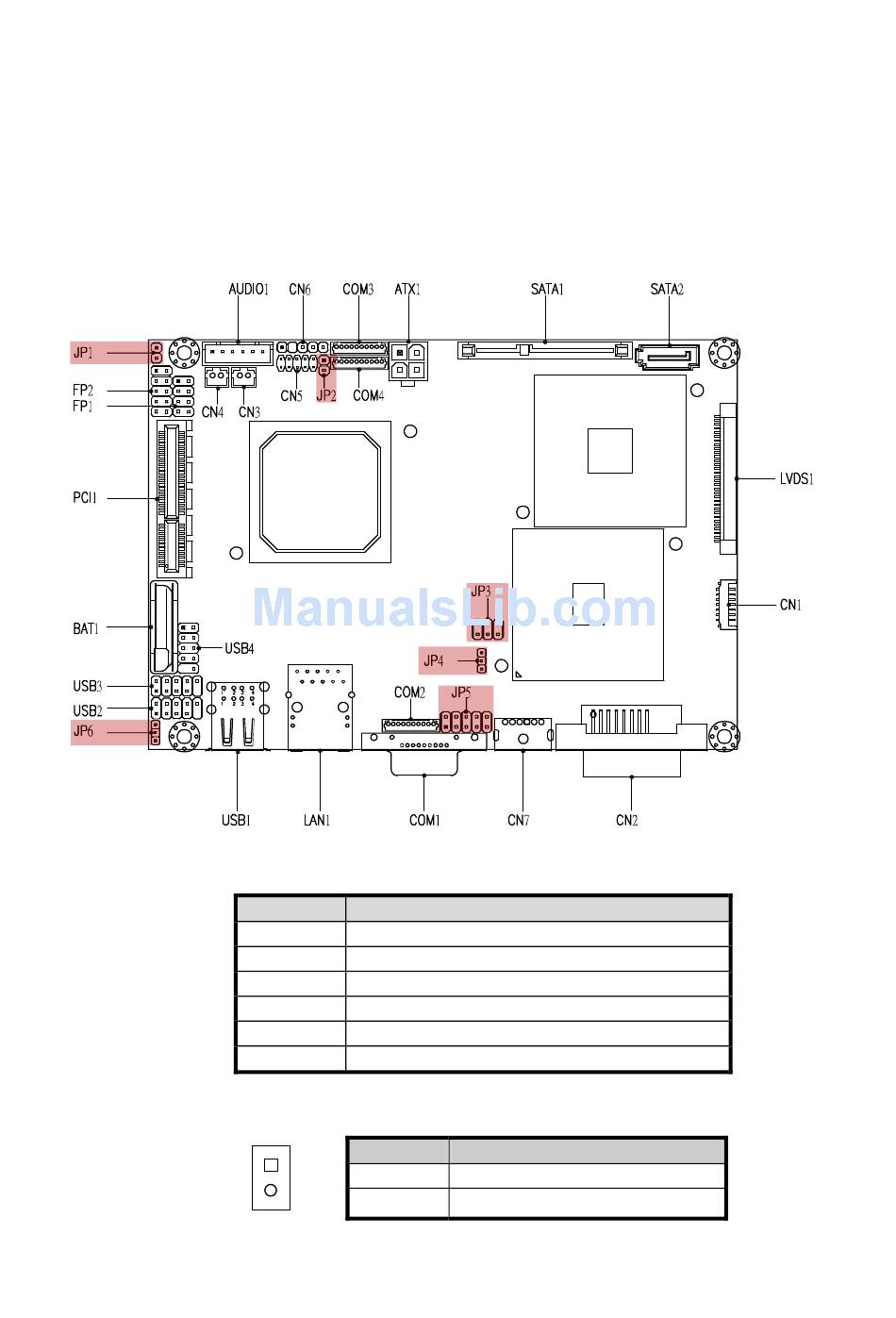

Figure 11 Jumper Locations

Label Function
JP1 Clear CMOS Selection
JP2 Power Mode Selection
JP3 Backlight & Panel Power Selection
JP4 Backlight Enable Selection
JP5 KB/MS Connector Selection
JP6 USB POWER SELECT

Table 10 Jumper List

Jumper
Open
Short

Table 11 JP1 Clear CMOS Selection

Status
Normal Operation (Default)
Clear CMOS
27
Chapter 5
