Installing a Mini PCI Card

The KUBE-8110 provides space for one Mini PCI expansion card as shown in Figure 2-3 above. To install a
Mini PCI card fully insert card into the slot, then press down to lock the card in place.

Installing a Wi-Fi Antenna

The KUBE-8110 provides an opening to install a Wi-Fi antenna, shown in Figure 1-2. KUBE-8110
Mechanical Layout - Rear Panel. To install a Wi-Fi antenna, remove the circular pre-cut punch-out and
secure the antenna to the chassis.

Wall Mounting

The KUBE-8110 comes with two L-brackets for wall mounting. Secure the L-brackets to the chassis as
shown using the screws provided.

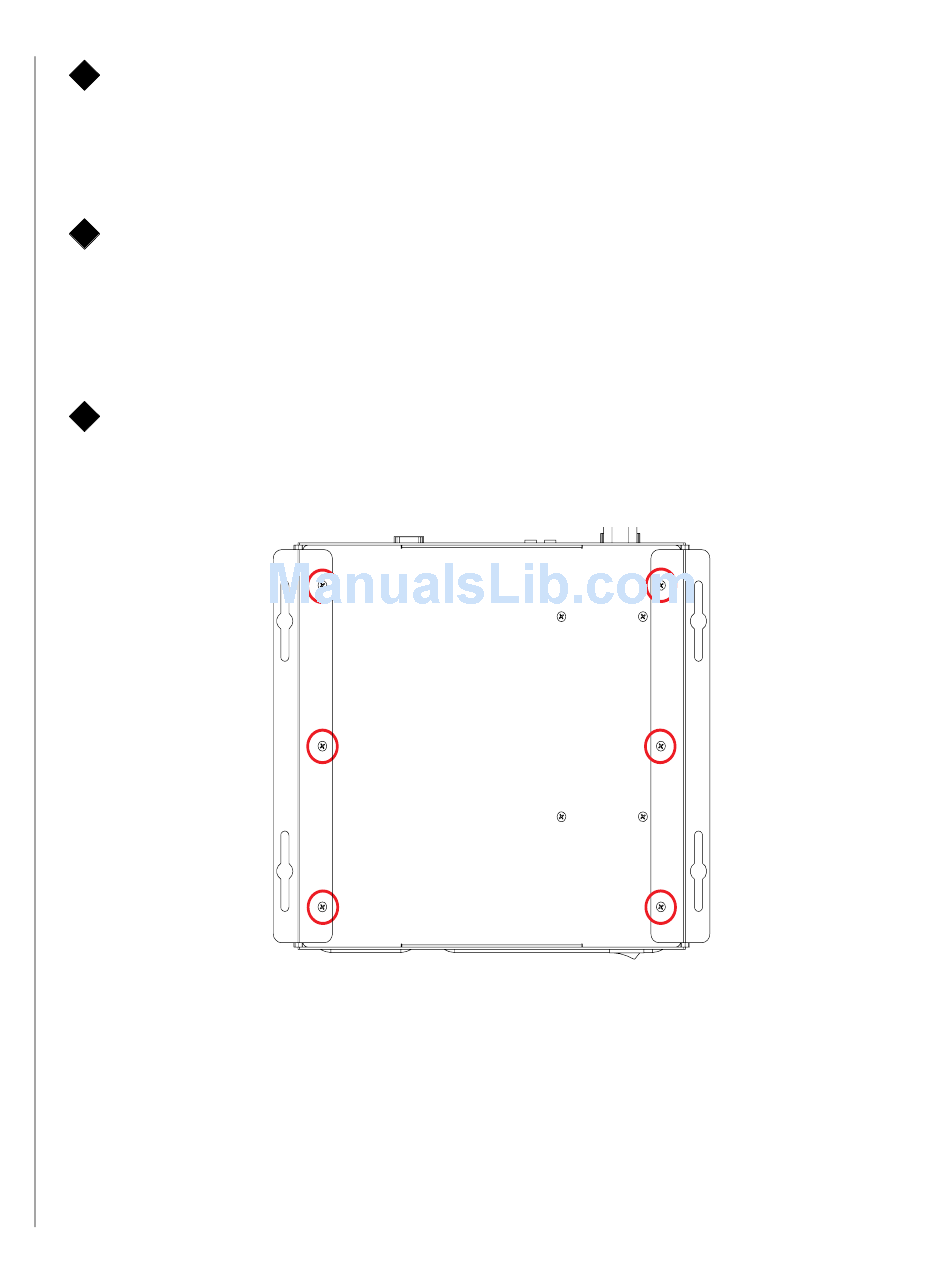

Figure 2-7. Secure the wallmount L-brackets to the KUBE-8110 chassis

Refer to Figure 1-3. KUBE-8110 Mechanical Dimensions for wallmount hole spacing. The shape of the
screw holes allows the KUBE-8110 to be mounted with the Front Panel facing either up or down, and
provides for easy removal of the chassis for repair of maintanence. Use standard M4 or M5 screws to
mount the KUBE-8110.
2-8 KUBE-8110 User's Guide
