Assembly/Disassembly
Accessing Internal Components
Before opening your system, make sure to turn it off and disconnect the
power sources to prevent electric shock or system damage.
Follow the procedure described below to access the system's internal components
1.
Loosen the 10 flathead screws from the front and rear panels and the flathead
screws from each side.
2.
Loosen the 4 roundhead screws from top of the chassis cover.
3.
Lift the chassis cover up and off of the chassis base. See figure below for the
locations of the internal components of the system.
Main Board
QDSP-2020 User's Manual
Chapter 2

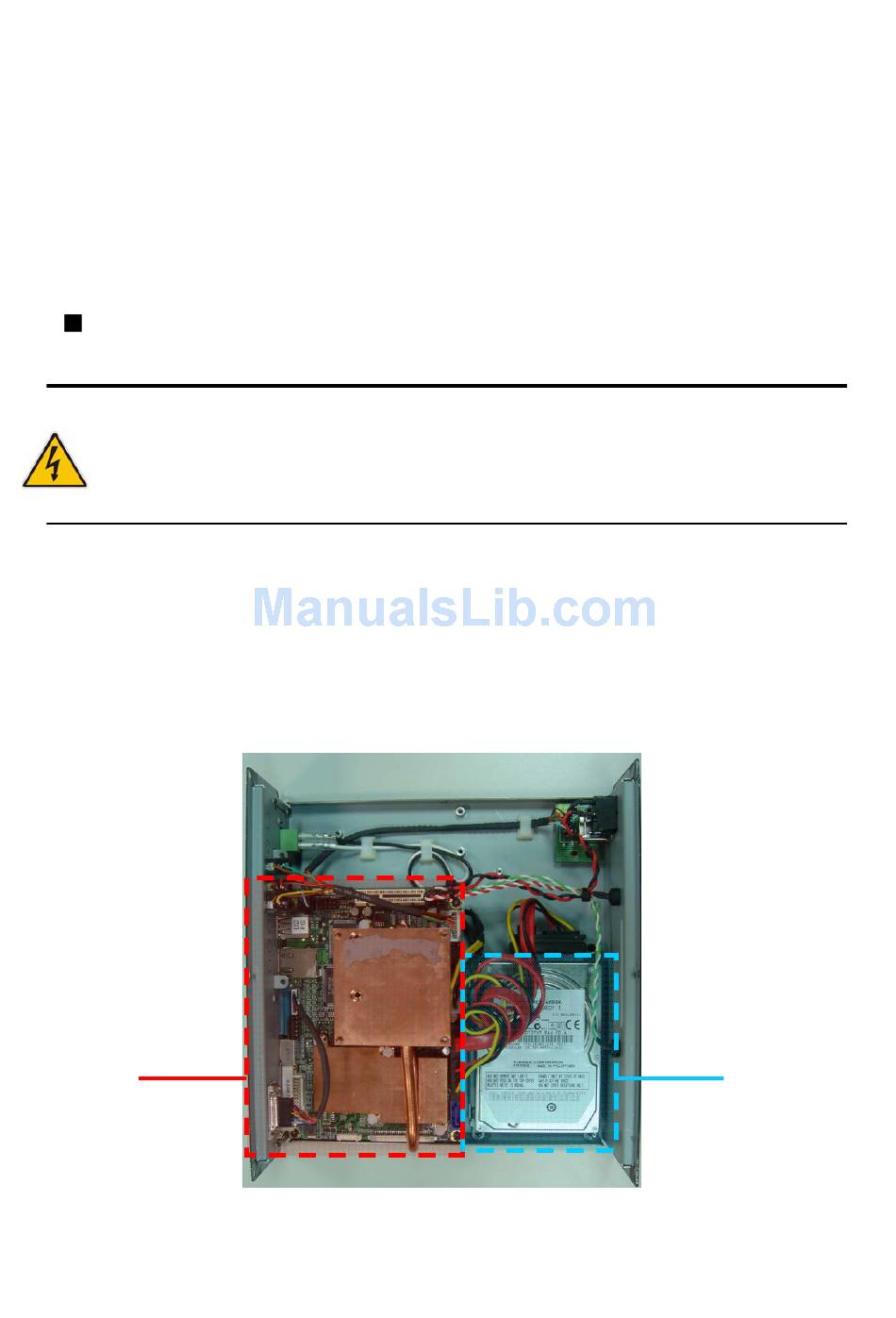

Figure 2 Mechanical Layout - Internal Components
WARNING
17
Chapter 2
HDD
