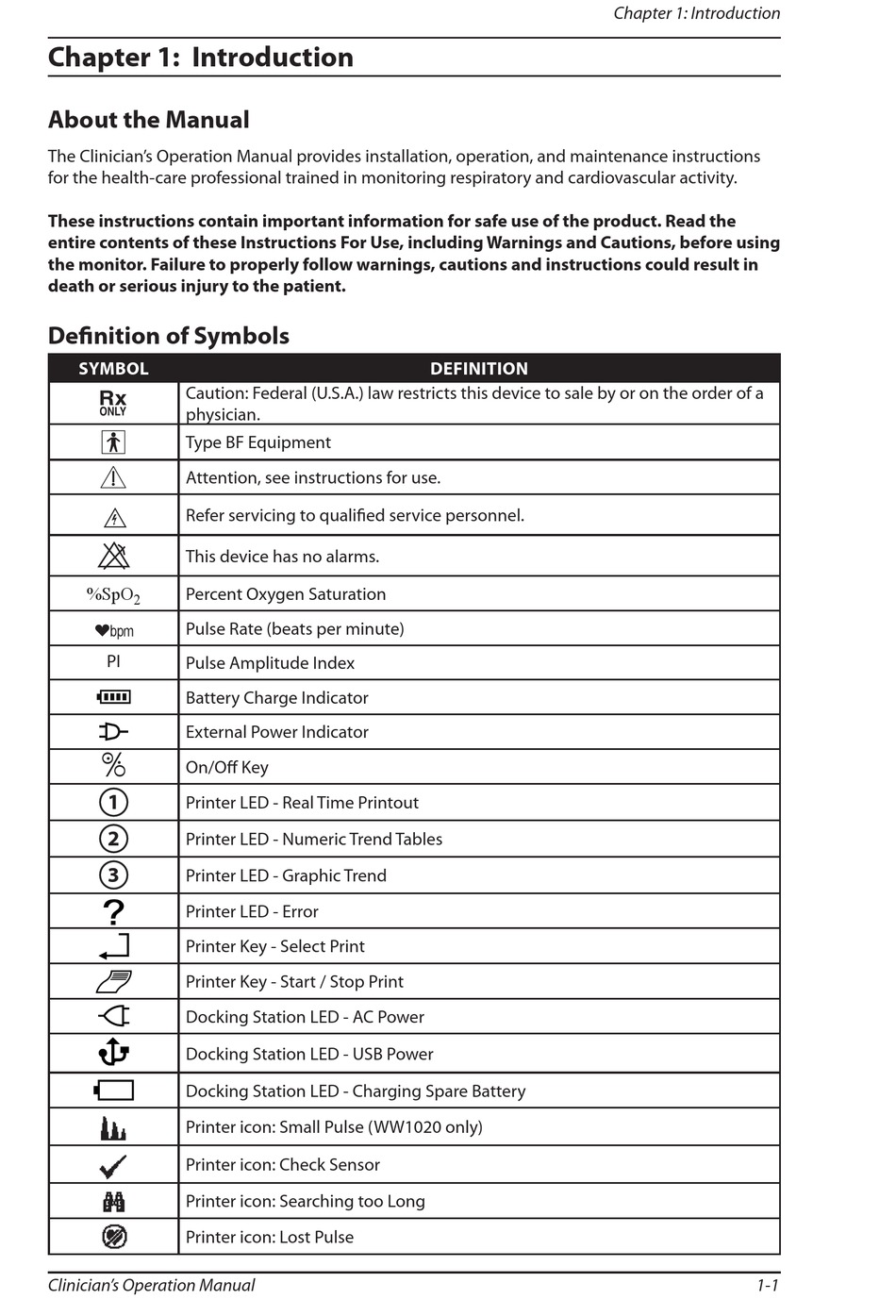

Chapter 1: Introduction

About the Manual

The Clinician's Operation Manual provides installation, operation, and maintenance instructions
for the health-care professional trained in monitoring respiratory and cardiovascular activity.
These instructions contain important information for safe use of the product. Read the
entire contents of these Instructions For Use, including Warnings and Cautions, before using
the monitor. Failure to properly follow warnings, cautions and instructions could result in
death or serious injury to the patient.

Definition of Symbols

SYMBOL
Caution: Federal (U.S.A.) law restricts this device to sale by or on the order of a
6
physician.
R
Type BF Equipment
f
Attention, see instructions for use.
Refer servicing to qualified service personnel.
7
This device has no alarms.
%SpO
Percent Oxygen Saturation
2
p
Pulse Rate (beats per minute)
PI
Pulse Amplitude Index
Battery Charge Indicator
External Power Indicator
x
On/Off Key
1
Printer LED - Real Time Printout
2
Printer LED - Numeric Trend Tables
3
Printer LED - Graphic Trend
Printer LED - Error
Printer Key - Select Print
Printer Key - Start / Stop Print
Docking Station LED - AC Power
Docking Station LED - USB Power
Docking Station LED - Charging Spare Battery
Printer icon: Small Pulse (WW1020 only)
Printer icon: Check Sensor
Printer icon: Searching too Long
Printer icon: Lost Pulse
