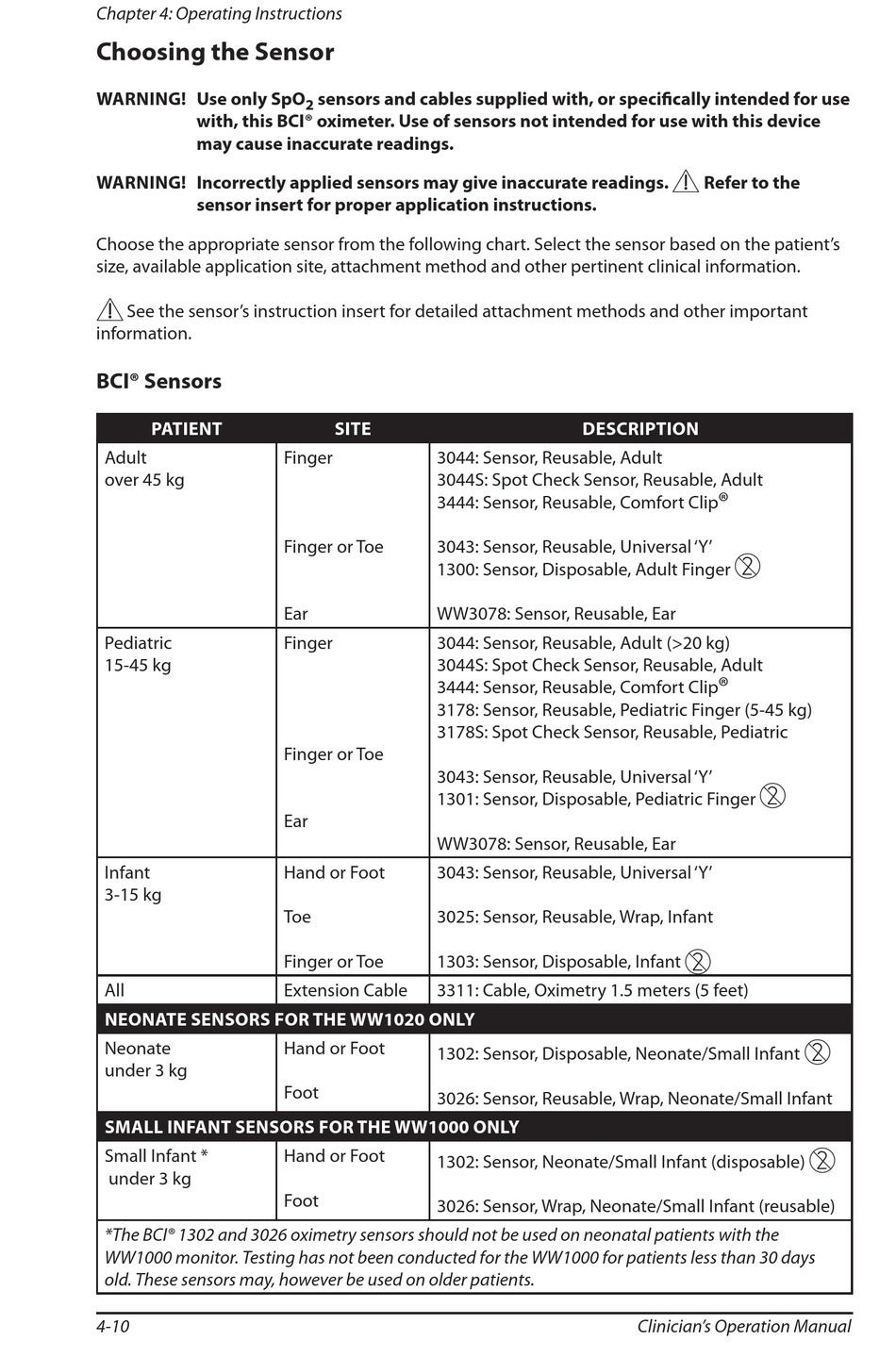

Chapter 4: Operating Instructions

Choosing the Sensor

WARNING! Use only SpO
with, this BCI® oximeter. Use of sensors not intended for use with this device
may cause inaccurate readings.
WARNING! Incorrectly applied sensors may give inaccurate readings.
sensor insert for proper application instructions.
Choose the appropriate sensor from the following chart. Select the sensor based on the patient's
size, available application site, attachment method and other pertinent clinical information.
f
See the sensor's instruction insert for detailed attachment methods and other important
information.
BCI® Sensors
PATIENT
Adult Finger
over 45 kg
Finger or Toe
Ear
Pediatric Finger
15-45 kg
Finger or Toe
Ear
Infant Hand or Foot
3-15 kg
Toe
Finger or Toe
All Extension Cable
NEONATE SENSORS FOR THE WW1020 ONLY
Neonate Hand or Foot
under 3 kg
Foot
SMALL INFANT SENSORS FOR THE WW1000 ONLY
Small Infant * Hand or Foot
under 3 kg
Foot
*The BCI® 1302 and 3026 oximetry sensors should not be used on neonatal patients with the
WW1000 monitor. Testing has not been conducted for the WW1000 for patients less than 30 days
old. These sensors may, however be used on older patients.
4-10
sensors and cables supplied with, or specifically intended for use
2
SITE
3044: Sensor, Reusable, Adult
3044S: Spot Check Sensor, Reusable, Adult
3444: Sensor, Reusable, Comfort Clip
3043: Sensor, Reusable, Universal 'Y'
1300: Sensor, Disposable, Adult Finger
WW3078: Sensor, Reusable, Ear
3044: Sensor, Reusable, Adult (>20 kg)
3044S: Spot Check Sensor, Reusable, Adult
3444: Sensor, Reusable, Comfort Clip
3178: Sensor, Reusable, Pediatric Finger (5-45 kg)
3178S: Spot Check Sensor, Reusable, Pediatric
3043: Sensor, Reusable, Universal 'Y'
1301: Sensor, Disposable, Pediatric Finger
WW3078: Sensor, Reusable, Ear
3043: Sensor, Reusable, Universal 'Y'
3025: Sensor, Reusable, Wrap, Infant
1303: Sensor, Disposable, Infant
3311: Cable, Oximetry 1.5 meters (5 feet)
1302: Sensor, Disposable, Neonate/Small Infant
3026: Sensor, Reusable, Wrap, Neonate/Small Infant
1302: Sensor, Neonate/Small Infant (disposable)
3026: Sensor, Wrap, Neonate/Small Infant (reusable)
