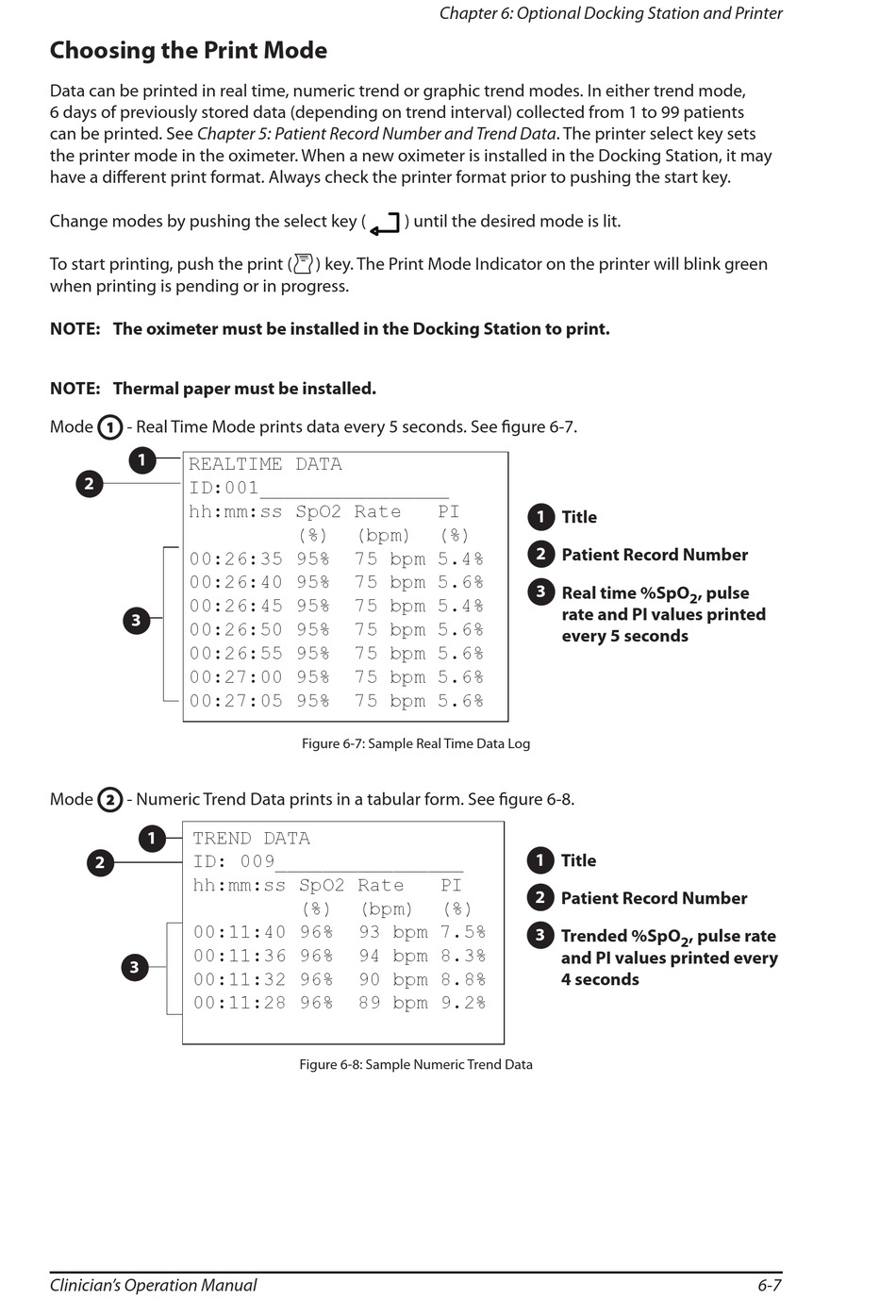

Choosing the Print Mode

Data can be printed in real time, numeric trend or graphic trend modes. In either trend mode,
6 days of previously stored data (depending on trend interval) collected from 1 to 99 patients
can be printed. See Chapter 5: Patient Record Number and Trend Data. The printer select key sets
the printer mode in the oximeter. When a new oximeter is installed in the Docking Station, it may
have a different print format. Always check the printer format prior to pushing the start key.
Change modes by pushing the select key (
To start printing, push the print (
when printing is pending or in progress.
NOTE: The oximeter must be installed in the Docking Station to print.
NOTE: Thermal paper must be installed.
Mode - Real Time Mode prints data every 5 seconds. See figure 6-7.
1
1
REALTIME DATA
2
ID:001________________
hh:mm:ss SpO2 Rate
00:26:35 95%
00:26:40 95%
00:26:45 95%
3
00:26:50 95%
00:26:55 95%
00:27:00 95%
00:27:05 95%
Mode - Numeric Trend Data prints in a tabular form. See figure 6-8.
2
TREND DATA
1
ID: 009________________
2
hh:mm:ss SpO2 Rate
00:11:40 96%
00:11:36 96%
3
00:11:32 96%
00:11:28 96%
Clinician's Operation Manual
Chapter 6: Optional Docking Station and Printer
) until the desired mode is lit.
F
) key. The Print Mode Indicator on the printer will blink green
PI
(%) (bpm) (%)
75 bpm 5.4%
75 bpm 5.6%
75 bpm 5.4%
75 bpm 5.6%
75 bpm 5.6%
75 bpm 5.6%
75 bpm 5.6%
Figure 6-7: Sample Real Time Data Log
PI
(%) (bpm) (%)
93 bpm 7.5%
94 bpm 8.3%
90 bpm 8.8%
89 bpm 9.2%
Figure 6-8: Sample Numeric Trend Data
1 Title
2
Patient Record Number
3
Real time %SpO , pulse
2
rate and PI values printed
every 5 seconds
1
Title
2
Patient Record Number
3
Trended %SpO , pulse rate
2
and PI values printed every
4 seconds
6-7
