NOTE! To slow charge the WW1090 Lithium-Ion (Li+) Rechargeable Battery Pack, install the
Battery Pack in the oximeter and connect to USB power. Slow charging may take 20
hours or more. USB power cannot charge the spare Li+ Rechargeable Battery Pack
in the Docking Station.
NOTE: USB power may fail if AC power is interrupted to its PC or powered USB hub. Always
use charged batteries in the oximeter.

WW1090 Lithium-Ion (Li+) Rechargeable Battery Pack

The Docking Station (when powered by the WW1095 AC Power Supply) will charge two WW1090
Lithium-Ion (Li+) rechargeable battery packs simultaneously. It will recharge the currently
installed oximeter battery pack as well a spare pack mounted in the Docking Station battery
charger.
The WW1090 Lithium-Ion (Li+) rechargeable battery pack is placed in the dock as shown in figure
6-3. When the battery is charging, the indicator (
charged, the indicator (
yellow LED. See Chapter 9: Troubleshooting for details.
NOTE: The battery in the Docking Station battery charger cannot power the oximeter
without being installed in the oximeter. In the event of loss of power to the Docking
Station, the spare battery will not automatically provide power.

Installing the Oximeter to the Dock

The WW1020/WW1000 is placed bottom first into the Docking Station facing out as shown in
figure 6-3. Confirm that good connection is made by observing that the oximeter's external power
indicator ( ) is lit.

Downloading Data to PC

Data may be sent to a computer through the Docking Station using the WW1089 USB Interface
Cable. See Chapter 7: Connecting to a PC for details.
Clinician's Operation Manual
Chapter 6: Optional Docking Station and Printer
) lights solid green. Battery or charging errors are indicated by a

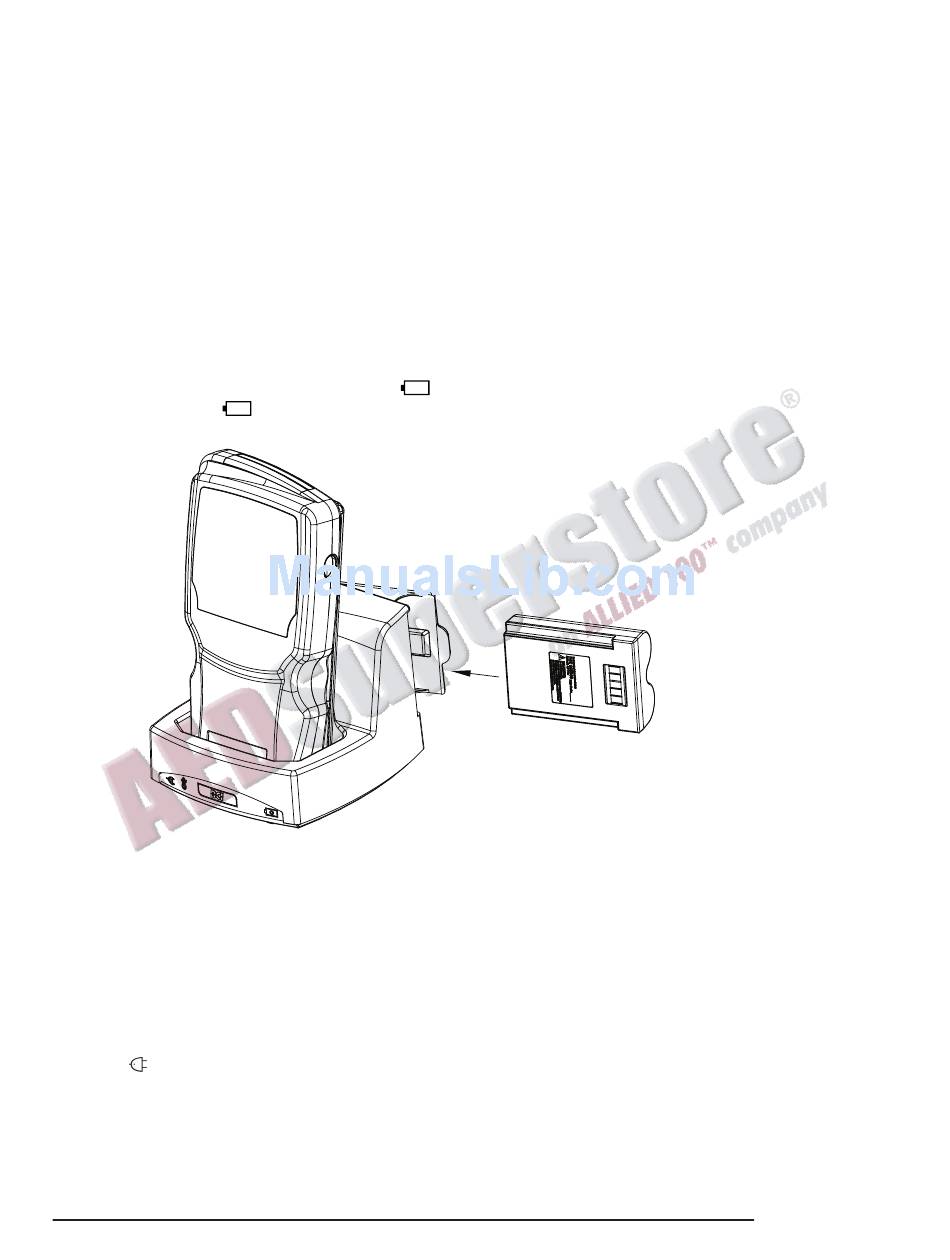

Figure 6-3: Connecting the Rechargeable Battery Pack
) flashes green. After the battery is fully
6-3
