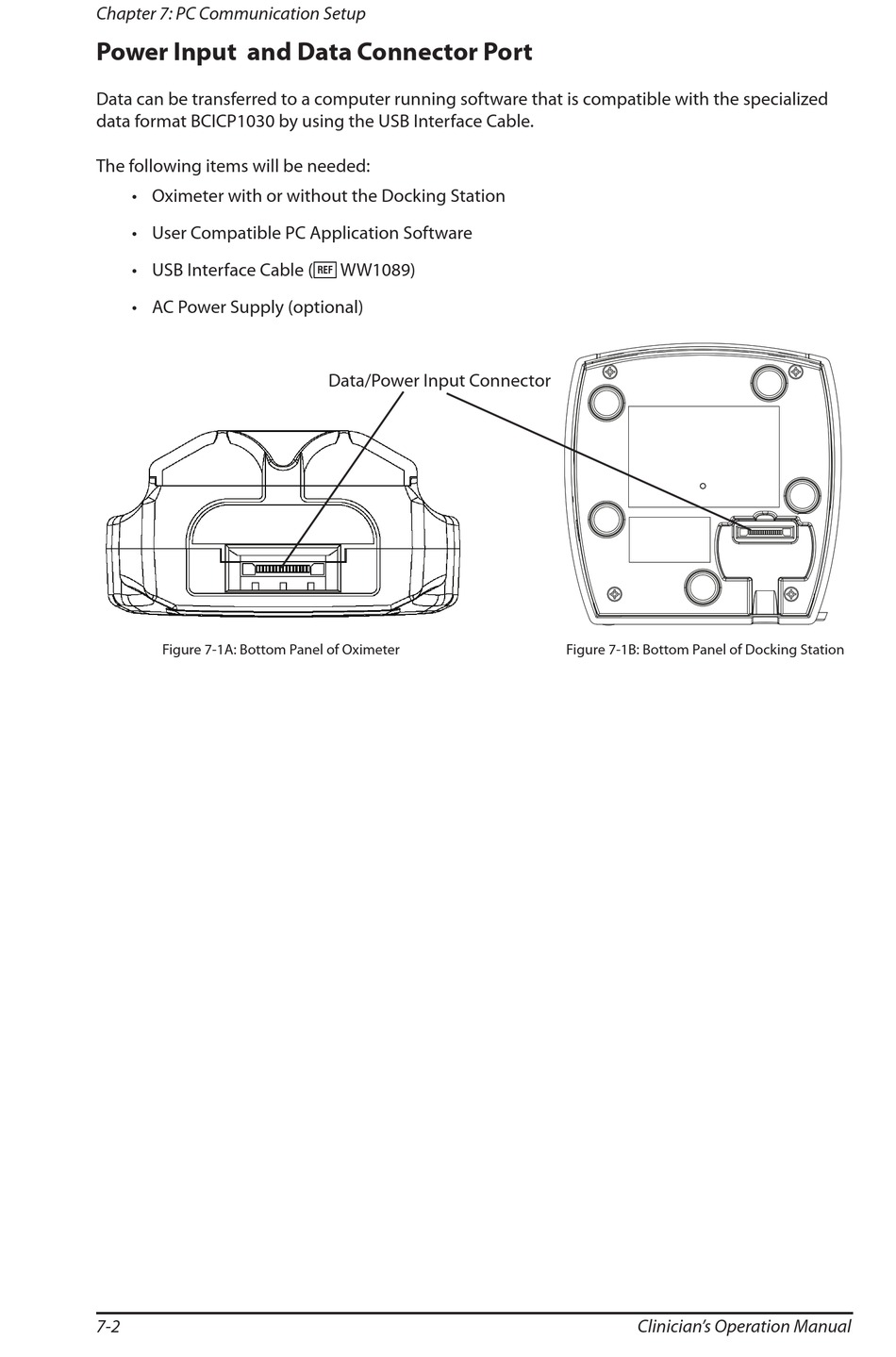

Chapter 7: PC Communication Setup
Power Input and Data Connector Port
Data can be transferred to a computer running software that is compatible with the specialized
data format BCICP1030 by using the USB Interface Cable.
The following items will be needed:
•
Oximeter with or without the Docking Station
•
User Compatible PC Application Software
•
USB Interface Cable (
•
AC Power Supply (optional)
Figure 7-1A: Bottom Panel of Oximeter
7-2
< WW1089)
Data/Power Input Connector
Figure 7-1B: Bottom Panel of Docking Station
Clinician's Operation Manual
