Monitor Back and Bottom Panels

1
1 Sensor / RS232 Connector
The sensor or an extension cable attaches here. With the sensor removed, trend data can
be downloaded from this connector using an RS232 serial interface cable. See Chapter 7:
Connecting to a PC for details.
Sensor Storage Slot
2
®
Reusable BCI sensors can be securely stored here when not in use by using a WW1080
Sensor Cradle.
Battery Compartment
3
This compartment holds the disposable batteries or the rechargeable battery pack.
Data Input/Output or Power Input Connector
4
This connector can accept the AC power adapter or the USB cable. The docking station uses
this connector for both power and data.
Clinician's Operation Manual
2
3

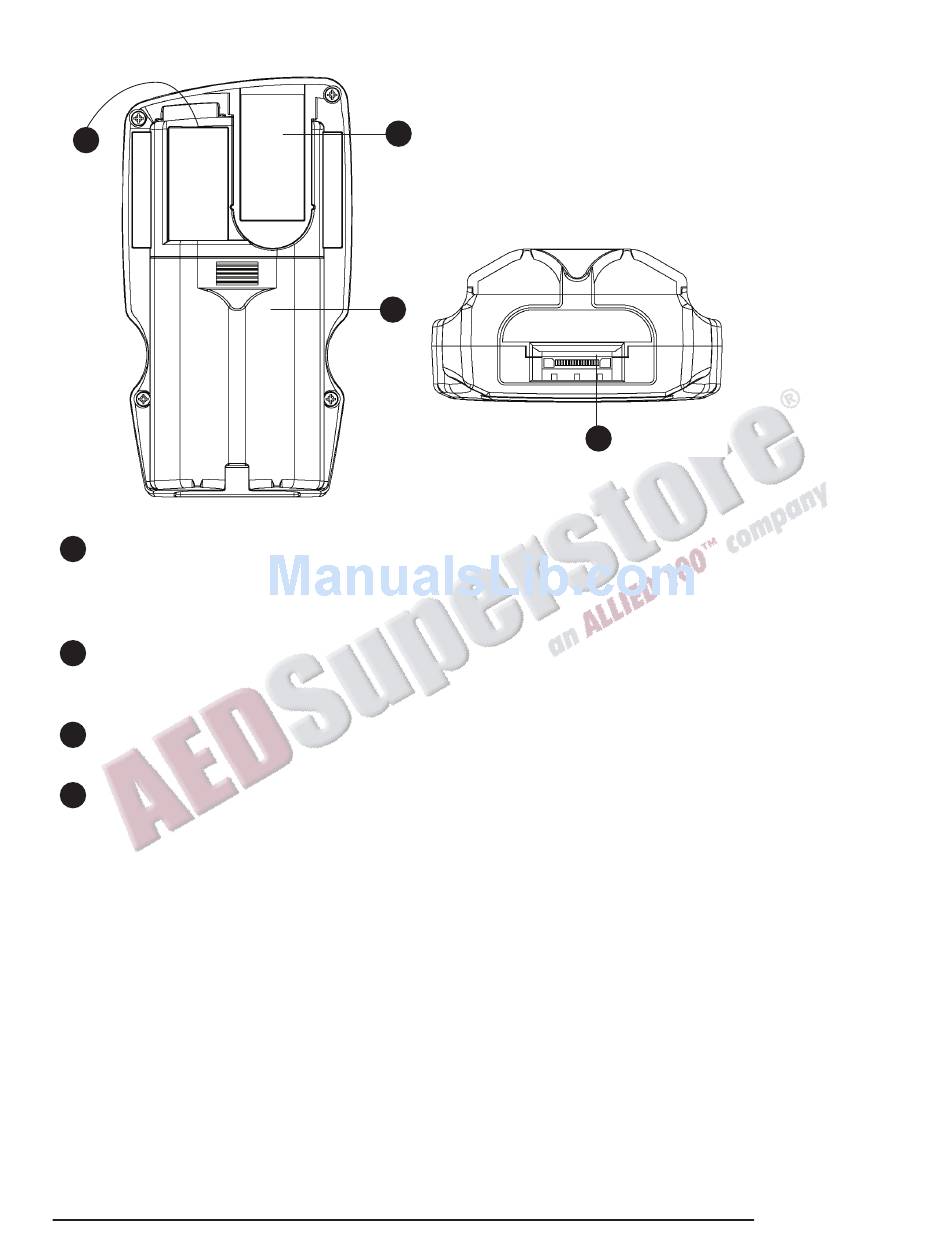

Figure 3-3: Monitor Back and Bottom Panels
