Chapter 6: Optional Docking Station and Printer

Docking Station

1
AC Power Indicator
1
This indicator will light when AC power is connected to the Docking Station.
USB Power Indicator
2
This indicator will light when a USB cable is connected to the Docking Station, but AC power
is not.
Charging Spare Battery Indicator
3
This indicator will flash green when the WW1090 Lithium-Ion (Li+) rechargeable battery
pack is charging. After the battery is fully charged, the indicator lights solid green. Battery or
charging errors are indicated by a yellow LED. See Chapter 9: Troubleshooting for details.

Powering the Docking Station

WARNING! Do not plug the Docking Station AC power supply into an outlet controlled by a
wall switch.
WARNING! Do not allow any moisture to contact the AC power supply connectors, or a
safety hazard may result. Ensure that hands are thoroughly dry before handling
the AC power supply.
WARNING! Do not place the Docking Station in the patient's bed or crib. Do not place the
Docking Station on the floor.
WARNING! Failure to place the Docking Station away from the patient may allow the
patient to turn off, reset, or damage the monitor, possibly resulting in the
patient not being monitored. Make sure the patient cannot reach the monitor
from their bed or crib.
The WW1095 AC Power Supply provides power to the Docking Station and connected accessories.
Connect the AC Power Supply to the dock using the data port or Power Input Connector. The
Docking Station's AC power indicator (
Station has built-in intelligence that prioritizes available power to the oximeter, printer and
chargers. If USB power is used for the Docking Station, some accessories may not operate.
When the WW1089 USB interface cable is connected to the Docking Station, data can be
transferred from the oximeter's data port through the Docking Station to a compatible device. If
the USB cable is used without AC power, the USB (
to the oximeter.
NOTE! The WW1090 Lithium-Ion (Li+) Rechargeable Battery Pack can be fast charged by
installing it in the oximeter and supplying power, using the AC Power Supply either
directly or through the Docking Station. The WW1090 Li+ Rechargeable Battery
Pack can also be fast charged by installing it directly in the Docking Station and
supplying power using the AC Power Supply.
6-2
2

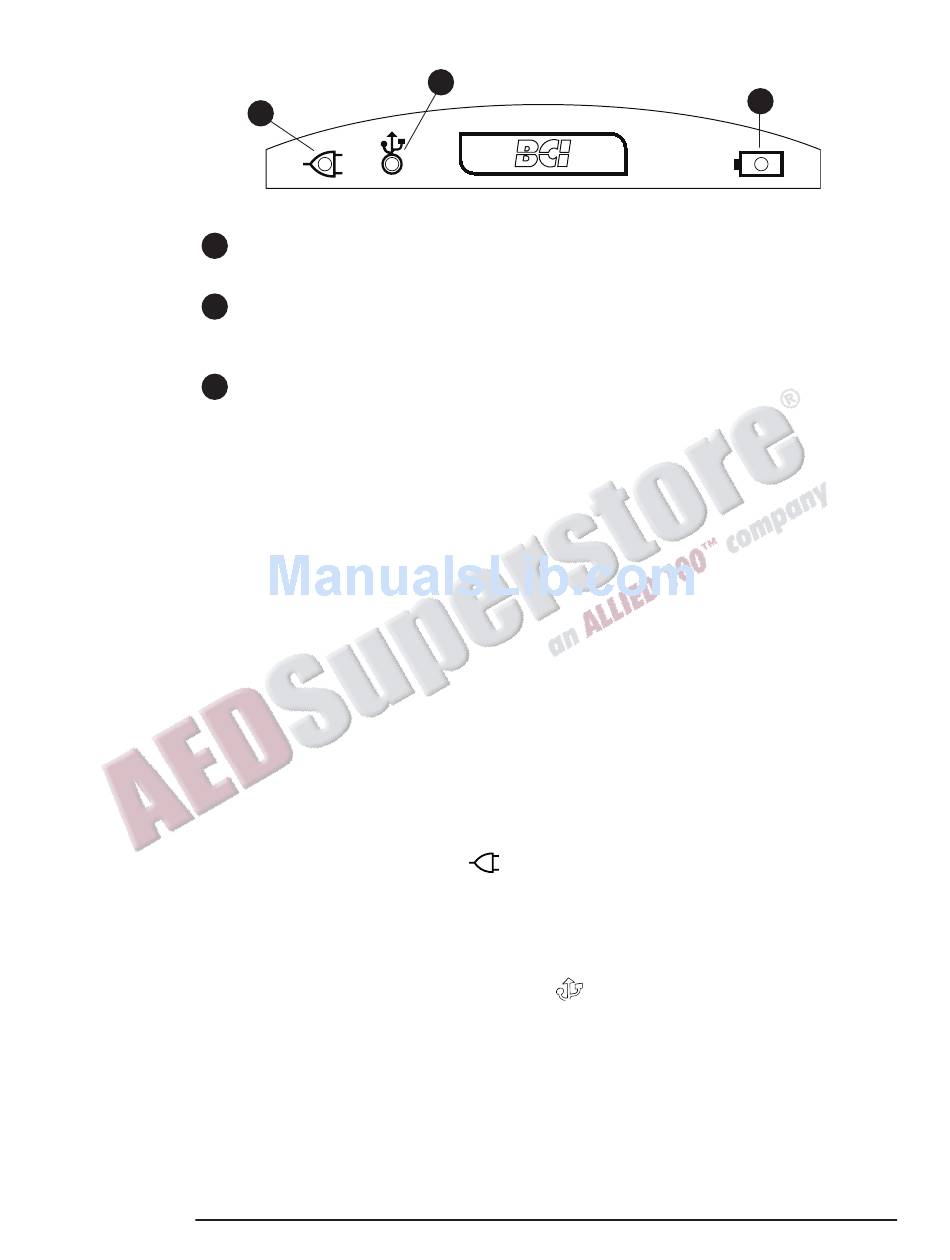

Figure 6-2: Indicators on Docking Station Front Panel
) will light when AC power is connected. The Docking
3
) indicator is lit, and USB power is available
