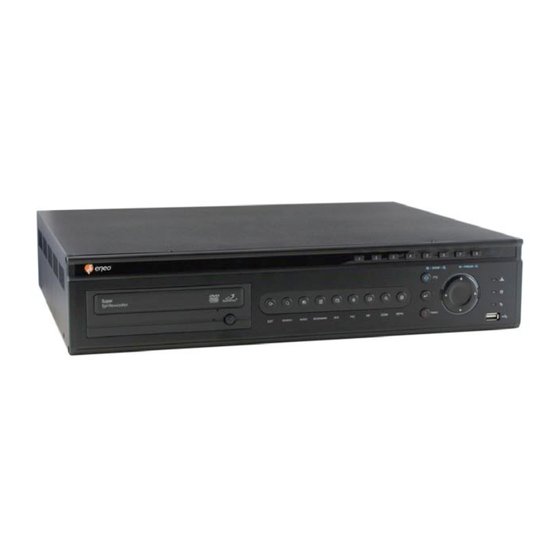

Eneo BCR-3004 Operating Instructions Manual

Digital video recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operating Instructions
Digital Video Recorder
BCR-3004, BCR-3008 und BCR-3016


Advertisement

Table of Contents
loading

Related Manuals for Eneo BCR-3004

Summary of Contents for Eneo BCR-3004

  • Page 1 Operating Instructions Digital Video Recorder BCR-3004, BCR-3008 und BCR-3016...

  • Page 2: Table Of Contents

    Contents . Safety Instructions / Maintenance ........................3 . Product Features ..............................4 3. Function of Buttons ............................5 3. Front Panel ..............................5 3. Rear View ..............................7 3.3 Connector Pin ............................8 4. Installation ............................... 0 4. Connections ............................0 4. Hardware Installation .......................... 5. Display Configuration ............................6 5. Current Status ............................7 5. Display Status .

  • Page 3: Safety Instructions / Maintenance

    1. Safety Instructions / Maintenance • Read these safety instructions and the operation manual first before you install and commission the unit. • Keep the manual in a safe place for later reference. • The system may only be commissioned and maintained by personnel authorized to do this and it must only be carried out in accordance with relevant standards and guidelines. • Never cover the ventilation slots to avoid overheating. • Never insert metal objects or any other items into the vents. This may permanently damage the unit. • P rotect your unit from contamination with water and humidity to prevent it from permanent damage. Never switch the unit on when it gets wet. Have it checked at an authorized service center in this case. • Never operate the units outside of the specifications as this may prevent their functioning. • D o not operate the unit beyond their specified temperature, humidity or power ratings. Operate the unit only at a temperature range of +5°C to +40°C and at a humidity of max. 80%. • The unit should be protected against excessive heat, dust, damp and vibration. • Do not place any heavy objects on the unit. • To disconnect the power cord of the unit, pull it out by the plug. Never pull the cord itself. • P ay attention when laying the connection cable and observe that the cable is not subject to heavy loads, kinks, or damage and no moisture can get in. Do not attempt to disassemble the camera board from the dome.

  • Page 4: Product Features

    • Alarm Inputs / Outputs • Pentaplex Operation • MPEG-4 Video Compression • Recording Speed: BCR-3004: 00 ips. max. BCR-3008, BCR-3016: 00 ips. max. • Video Resolution 704x576 Pixels max. • BCR-3004, BCR-3008, BCR-3016: 30GByte SATA HDD ( Hard Disks max.) BCR-3004, BCR-3008, BCR-3016: 80GByte SATA HDD (no HDD extention possible) BCR-3004, BCR-3008, BCR-3016: .07, resp. .3TByte SATA HDD (no HDD extention possible) • Recording Modes: Time, Motion, Alarm and Emergency • Secondary Storage / Archiving via USB and DV-RW • Multiple Language On-screen Menu Control • RS-3/RS-485 Ports (PC and Telemetry Control) • Ethernet Connectivity (Remote Viewer Program incl.) Enhanced Viewer Software included.

  • Page 5: Function Of Buttons

    3. Function of Buttons 3.1 Front Panel 4 Channel DVR Layout 8 Channel DVR Layout 16 Channel DVR Layout...
  • Page 6 NOTE: This manual covers the 4 channel, 8 channel and 16 channel digital video recorders. For simplicity, the illustrations and descriptions in this manual refer to the 16 channel model. Name Description Indicating operation status PANIC Emergency recording (Enables pre-configured force recording) Function Key EXIT Button used to stop PANIC mode, Play Back mode SEARCH Search recorded data on HDD MODE Switch screen division from full screen to 6 split screen...

  • Page 7: Rear View

    3.2 Rear View 4 Channel DVR 8 Channel DVR 16 Channel DVR...

  • Page 8: Connector Pin

    NOTE: You cannot mix NTSC and PAL equipment. For example you cannot use a PAL camera and a NTSC monitor. Name Description RS485 Terminal block type (for PTZ and other External Devices) RELAY Output Terminal block type (Relay Output) SENSOR Input Terminal block type (Sensor Input) DE-5 female socket (VGA Output to CRT or TFT LCD Monitors) ETHERNET RJ-45 Type connector (0/00Mbps) RS232C D-sub 9 pin female (External devices for to control DVR) CAMERA Auto detecting NTSC/PAL Cameras ( BNC type .0Vp-p/75 ohm) LOOP Camera Loop out (BNC type .0Vp-p/75 ohm) MAIN MONITOR Auto detecting NTSC/PAL Composite Monitor (BNC type .0Vp-p/75 ohm) SPOT (Call monitor) Auto detecting NTSC/PAL Composite Monitor (BNC type .0Vp-p/75 ohm)
  • Page 9 3.3.3 LAN Details Details TX+ (Data Transmission) N/C (Normal Close) TX- (Data Transmission) R/X- (Data Transmission) RX+ (Data Transmission) N/C (Normal Close) N/C (Normal Close) N/C (Normal Close) 3.3.4 CAMERA input & LOOP output Camera Input Loop Output 3.3.5 External Device Connection: Connection with PTZ camera, sensor, relay output 4 Channel Details Details Details Details RS485 D- RS485 D+ AL COMM AL NC AL NO ALARM GND...

  • Page 10: Installation

    16 Channel Details Details Details Details RS485 D- RS485 D+ AL COMM AL NC AL NO AL COMM AL NC AL NO ALARM 6 ALARM 5 ALARM 4 ALARM 3 ALARM  ALARM  ALARM 0 ALARM 9 ALARM 8 ALARM 7 ALARM 6 ALARM 5 ALARM 4 ALARM 3 ALARM  ALARM  4. Installation 4.1 Connections TCP/IP Alarm Sensor Remote Control TCP/IP Camera RS-3C Printer RX Box...

  • Page 11: Hardware Installation

    4.2 Hardware Installation 4.2.1 Rack Mounting . Remove the cross head screws (four on each side) located near the front panel on the right and left side of the unit. . Secure the rack mount brackets to each side using same cross head screws that were just removed. 3. Install the unit into the 9 inch wide rack (follow the rack manufacturer’s instructions.) 4.2.2 HDD (Hard Disk Drive) connection CAUTION ! Electrostatic discharges Any electrostatic energy coming in contact with the hard disk or other sensitive internal parts can damage them permanently. Improper handling could void the warranty of the hard disk. When working with electrostatic sensitive devices such as a hard disk or the Divar unit, make sure you use a static-free workstation. DANGER ! Electrical voltage Risk of electric shock Before installation of the hard disk, unplug the power cord of the DVR and wait for at least 30 seconds. . Connect Main Board and HDD using SATA cable and HDD power cable. . For the single Hard Drive installation make sure you install the HDD onto HDD location. 3. For the two Hard Disk Drive installation make sure you install the first HDD onto HDD location and then install the second HDD onto HDD location. 4. Install the HDD(s) to the HDD bracket by using the bolts (included in the package). 5. Attach the HDD bracket into the bottom case.
  • Page 12 4 Channel HDD Cable Connectiom HDD Fix 8 Channel HDD Cable Connectiom 16 Channel HDD Cable Connectiom...

  • Page 13: Power Cable

    4.2.3 Camera Rear view of camera Connect cameras to the camera input on rear panel of DVR marked CAMERA IN. 4.2.4 Monitor Connect the video output marked MONITOR to VIDEO-IN of Main Monitor. 4.2.5 Power Cable Connect DC V, 6.67A Adaptor to the back side of Power Jack for proper operation of HDDs and optical drive. Before turning on, be sure all necessary devices such as Power adaptor, cameras and Monitor are connected properly to DVR! NOTE: This unit is for 12VDC. Inadequate supply of power may cause breakdown. Must use UL approved surge protector and highly recommend UL approved UPS power strip for unwanted shutdown of the DVR unit.

  • Page 14: Other Devices

    4.2.6 SPOT Monitor installation (Call Monitor) Optional: Connect BNC type monitor for SPOT monitor installation (Call Monitor). 4.2.7 Other Devices 4 Channel 8 Channel...
  • Page 15 16 Channel RS-3C: Control DVR through RS-3C port RS-485: Control external device such as PTZ Cameras (Pin No. ~  at Terminal Block) RELAY Output: (Pin No.3 ~8 at Terminal Block) SENSOR Input: (Pin No.0 ~ 3 / No. 5 ~ 8 / No. 0 ~ 3 / No. 5 ~ 8 at Terminal Block) GND: Ground (Pin No. 9 / No. 4 / No. 9 / No. 4 at Terminal Block) ETHERNET: Connection to LAN, WAN and Internet VGA: Connection to VGA Monitor (CRT, TFT LCD Monitor) User can change resolution in MONITOR SETUP / VGA SETUP / VGA RESOLUTION...

  • Page 16: Display Configuration

    5. Display Configuration Current Status Display current Date/Time and Hard Disk allocation (Live view screen) Display playback time, show percentage of Hard Disk allocation and speed of play back (Play back screen) Display Status Display status icons Popup Menu Monitoring popup menu in live mode Playback popup menu in playback mode PTZ control popup menu in PTZ mode Toolbar Playback toolbar, PTZ toolbar...

  • Page 17: Current Status

    5.1 Current Status 5.1.1 Date/Time Live mode: show current date & time Playback mode: show recorded date & time of the playback image 5.1.2 HDD Live mode: HDD recorded space is marked red on the percentage bar. Available remaining days/time at current record mode is shown. Playback mode: Shows percentage of playback. 5.1.3 Playback Mode In Playback mode, F stands for Forward playback, B for Backward playback. The numbers show playback speed. (Example.) F 6x, B x 5.2 Display Status Stop Recording, Not Recording Continuous Recording in progress Motion Recording in progress Alarm Recording in progress Panic Recording in progress Motion detected Alarm-In detected HDD Overwrite...

  • Page 18: Popup Menu

    5.3 Popup Menu There are three types of Popup Menu: . „MONITORING” popup menu . „PTZ CONTROL” popup menu 3. „PLAYBACK” popup menu The Popup menus are provided for easy navigation and detail configuration. See each sectional explanation for invoking popup menus. 5.3.1 MONITORING Popup Menu The „MONITORING” popup menu is invoked by pressing „Menu” button located in front of the DVR, „Menu” button located on the remote controller and right mouse button while in Live display. In full screen mode: All sub-menus are activated. In split screen mode: PTZ, Zoom, PIP menus are not activated. In 6 split screen mode: Previous Page, Next Page, PTZ Control, Zoom, PIP are not activated. 1) GOTO CHANNEL (Single channel camera selection) Select „GOTO CHANNEL” from „MONITORING” popup menu. Navigate by using directional button in frontal keypad and directional button on remote controller or by using the mouse. Off to the side another selectable list with camera labels will appear (Default camera labels are CAM~CAM6). Choose the desired camera by selecting the label and single channel view of the camera selection will appear. 2) SPLITTER (2x2, 3x3, 4x4 Split, Previous page, Next Page) Select „SPLITTER” from „MONITORING” popup menu.
  • Page 19 • Previous Page By selecting „PREVIOUS PAGE” option in full screen mode, screen display view will switch screen to lower number channel. (After channel , it rotates to channel 6.) In split screen mode, clicking Previous Page menu will switch screen to lower number channel groups. e.g. [ch//3/4] –> [ch3/4/5/6] –> [ch9/0//] –> [ch5/6/7/8] In 6 split display mode, this function is not available. • Next Page By selecting „NEXT PAGE” option in full screen mode, screen display view will switch screen to higher number channel. (After channel 6, it rotates to channel ). In split screen mode, clicking Next Page menu will switch screen to higher number channel groups. e.g. [ch//3/4] –> [ch5/6/7/8] –> [ch9/0//] –> [ch3/4/5/6] In 6 split display mode, this function is not available. 3) PTZ CONTROL (invokes PTZ Control Toolbar and Virtual Joystick) Select „PTZ CONTROL” from „MONITORING” popup menu. NOTE: By pressing button marked „PTZ” on frontal key pad or remote controllers on single channel view will invoke PTZ Control Toolbar and Virtual Joystick as well.
  • Page 20 4) FREEZE (On / Off) Select „FREEZE” from „MONITORING” popup menu. NOTE: By pressing button marked „FRZ” on frontal key pad or remote controllers will freeze the screen and hitting it one more time will release it. Select „ON” that appears on expanded window from „FREEZE” selection to freeze the frame and „Off” to release the screen freeze. In Full screen mode, FRZ icon appears and screen freezes. In split screen mode, FRZ icon appears and all channels freeze. 5) ZOOM: On / Off (Available only for live view) Zoom option may be enable on live view by selecting single channel view then from the „Monitoring” popup menu select „Zoom” then select „On” to enable Zoom.
  • Page 21 After selecting „DISPLAY” and a window will appear with „OSD”, „MAIN”, „SPOT” and „VGA” tabs. Select „MAIN” tab and here you can configure sequence interval. 7) PIP: On / Off Picture in Picture (PIP) mode will be enabled by selecting PIP button on the remote con- troller or in frontal keypad. With mouse operation, PIP will be enabled from „MONITORING” popup menu then selecting „PIP”. From here you have an option to select „ON” or „OFF” to enable and disable PIP. To configure PIP, from „Monitoring” popup menu select „Setup Menu” you will see setup menu with five large icons. Very first icon on the left is „Display” icon and within „Display” icon you will see „DISPLAY”, „CAMERA”, „AUDIO” and „REMOTE CONTROL” options. Then select „Display” list option item.
  • Page 22 After selecting „DISPLAY” and a window will appear with „OSD”, „MAIN”, „SPOT” and „VGA” tabs. Select „MAIN” tab and here you can configure PIP and DURATION. PIP positioning option may be selected from „PIP” section in „MAIN” window. There are 8 positions ranging from 0~7. See below for each position. PIP Position location 8) Panic (Force recording) Panic recording will be enabled by selecting „PANIC” from ‘MONITORING” popup. Panic recording may be enabled from „MONITORING” popup menu then selecting „PANIC”. Choosing „ON” will enable Panic record mode and „OFF” will disable Panic record mode. Panic mode indicator will be shown after Panic mode has been enabled. It will appear on upper left corner of the screen as show on the picture below. Example of panic Indicator...
  • Page 23 Image quality and frame rate of Panic record mode is configurable in „SETUP MENU” as shown below. Choose second icon from the left and choose „SETUP”. Upon selecting „SETUP” list option item from second icon in „SETUP MENU” a window will appear with three tabs marked „CHANNEL”, „EVENT” and „PANIC”. Choose „PANIC” tab and you will be able to configure „RESOULTION”, „QUALITY” and „FPS” (Frames per second) for every individual channels. 9) Playback Press „PLAYBACK” from „MONITORING” popup menu or from search menu, and Playback Control Toolbar pops up as below and begin playback of recorded data on HDD. Freeze, Slow/Fast (reverse) playback control is available with Playback Control Toolbar. Playback Control Toolbar...
  • Page 24 10) Search The „SEARCH” option is accessible only by ADMIN and MANAGER accounts as default. Regular users may enter search option if given authority by admin. (User authority explained further in Chapter 6.6, item 4). In the „SEARCH” option you may enable „CALANDER SEARCH”, „EVENT SEARCH” and „BOOKMARK SEARCH”. By clicking on „SEARCH” option from „MONITORING” popup it will immediately open the search option window as illustrated below. Detailed configuration of all the Search option will be explained in Chapter 7 of this manual. 11) Setup Menu Only Admin and Manager have full authority to access and change all settings on all Sub-Menus. () Setup Group indication: it indicates which icon selection is made. () Option list: it list all possible options by Setup Group selection (3) Setup Group icon: there are 5 setup group icons „DISPLAY”, „RECORD”, „EVENT”, „NETWORK” and „SYSTEMS” (4) User Account indication: shows type of user account selected. Detailed description of all setup menu items are explained in Chapter 5. of this manual.
  • Page 25 5.3.2 PTZ CONTROL Popup Menu The „PTZ CONTROL” popup menu is available after invoking PTZ Control Toolbar and Virtual Joystick. (see page 9 item „3) PTZ CONTROL” ) Press „Menu” button on remote controller or frontal key pad. For the mouse operation right mouse button click to invoke „PTZ CONTOL” popup menu Upon clicking „SELECT CHANNEL” selectable list of all camera labels will appear. Choose the camera label desired to move to the camera for PTZ control. Upon clicking „GOTO PRESET” selectable list of camera preset labels will appear. (default „POSITION ”~ „POSITION 0”). Select the preset position to view programmed preset position. The „SET PRESET” option is used to configure preset as seen on the screen. The „CLEAR PRESET” option is used to delete preset configured by „SET PRESET” option. First identify preset you want to delete then use „GOTO PRESET” option to select proper preset number. When PTZ is moved to the desired preset to delete then select „CLEAR PRESET” to delete the preset. Tour: Pan/Tilt on all directions Pattern: Move designated PRESET position in order Auto Pan: Pan left/right automatically Power: On/Off Light: Light on at night Wiper: Wipe moisture or water drops Pump: Pump water to remove dust Device Menu: Show OSD Menu of PTZ camera Exit PTZ Control: Exit and go back to Live view mode NOTE: Detailed operation of „PTZ CONTROL” menu is illustrated on Chapter 7.1.5 PTZ. Menus from 1) to 7) may not be available according to PTZ camera models.

  • Page 26: Playback Popup Menu

    5.3.3 PLAYBACK Popup Menu While in Playback mode, press „Menu” button on remote controller or frontal key pad. For the mouse operation right mouse button click to invoke „PLAYBACK” popup menu. Upon clicking „GOTO CHANNEL” selectable list of all camera labels will appear. Choose the camera label desired to move to the camera for PLAYBACK control. Upon clicking „SPLITTER” selectable list that indicates following: x SPLIT 3x3 SPLIT 4x4 SPLIT PREVIOUS PAGE NEXT PAGE NOTE: 2x2 SPLIT will enable playback view displaying 4 camera defaulting view of camera 1 ~ camera 4. By selecting „PREVIOUS PAGE” it will show camera 13 ~ camera 16. By selecting „NEXT PAGE”...

  • Page 27: Toolbar

    5.4 Toolbar 5.4.1 PLAYBACK Toolbar Button Function Go to the first image Move to the beginning of playback Decrease speed Playback speed decreases in forward playback (Playback speed increases in backward playback) Backward playback Playback in reverse direction Previous image Shows previous image in single still picture Freeze Freeze playback Next image Shows next image in single still picture Forward Playback Playback in forward direction Increase speed Playback speed increases in forward playback (Playback speed decreases in backward playback) Go to the last image Move to the end of playback Exit Exit playback mode, and return to live mode 5.4.2 PTZ Toolbar PTZ Control Toolbar Button Function TELE Zoom in WIDE Zoom out NEAR Focus near Focus far Virtual Joystick...

  • Page 28: Dvr Setup

    6. DVR Setup 6.1 Operation 6.1.1 Main Menu Setup Group Icon Available List Option items Display DISPLAY, CAMERA, REMOTE CONTROL Record SETUP, SCHEDULE, BACKUP Event ALARM, MOTION, VIDEO LOSS, ALARM-OUT, BUZZER Network LAN, NOTIFICATION System INFORMATION, DATE/TIME, STORAGE, USER, LOGOUT...
  • Page 29 6.1.2 Map of Screens...
  • Page 30 6.1.3 Initialization When powered on, messages displays in order. System will check for connected HDDs. If no HDD is connected, it will move to the next message. To skip checking HDD, click SKIP button or press MENU button. Once initialization is completed, live screen displays.
  • Page 31 6.1.4 System Login Window ) Press right button of mouse or press „MENU” button located on remote controller or frontal keypad, and „MONITORING” popup appears. ) Click „SETUP MENU”, and Login window pops up. NOTE: If the auto login is enable you may not see the „LOGIN” screen when entering into „SETUP MENU” option. 3) Click User and you can select user grade from the scroll box. 4) Input  to 8 digit number password of the selected user grade <– : Backspace X : Clear all Default Password: Admin: blank (NUL) Manager:  User ~User 8 :  ~ 9...

  • Page 32: Display

    6.2 Display 6.2.1 DISPLAY List Option Item In the „DISPLAY” option on „MAIN SETUP” screen you will see window with 4 tabs „OSD”, „MAIN”, „SPOT” and „VGA”. 1) OSD Tab Window OSD tab in „DISPLAY” window allows you to select what information will be displayed in Live and Playback screen. • DATE/TIME: Check checkbox to display Date/Time on Live screen. • PERCENTAGE BAR: Check checkbox to display recorded percentage on HDD on Live screen. • CAMERA TITLE: Check checkbox to display Camera Title on live screen. • SCHEDULE RECORD TYPE: Check checkbox to dis- play currently recording type: Alarm, Motion, Time. • ALARM/MOTION EVENT: Check checkbox to display Alarm/Motion icon on Live screen. • BOOT LOGO: Check checkbox to display Logo when system boots. • TRANSPARENCY: Adjust transparency using Left Right arrow buttons (from -3 to +3).
  • Page 33 2) MAIN Tab Window To enable sequencing of camera the „EVENT POPUP” should be at „OFF” setting. The „EVENT POPUP” will enable the event triggered camera to display on single channel view on the live view. • SEQUENCE MODE: Define layout to sequence between Full ch and 4ch split. • SEQUENCE INTERVAL: Set sequence interval to , , 3, 4, 5, 0, 5, 0, 30 seconds. • EVENT POPUP: Select „ON” or „OFF” to enable popup screen for event trigger. • POPUP EVENT TYPE: Select event trigger type between motion detection and Alarm. • POPUP DWELL: Set dwell time between , , 3, 4, 5, 0, 5, 0, 30 seconds. • PIP: Set location of picture in picture window (Upper part: 0~, Middle part: 3~4, Lower part: 5~7 ) • DURATION: Set dwell time for the PIP between , , 3, 4, 5, 0, 5, 0, 30 seconds NOTE: In case events are (Motion or Alarm) simultaneously triggered on several channels then channel 1 has the first priority to pop up.
  • Page 34 Check checkbox of camera channel to activate Spot output. 4) VGA Tab Window In VGA Tab window is the location for configuring VGA type monitor. DVR must have VGA Card pre installed (Optional purchase item) to connect DVR to TFT LCD or CRT monitors. Please check the resolution range of your VGA monitor first and select „VGA RESOLUTION” among list below: (see your monitor manual for supported resolution settings) Supported VGA Resolutions 640 x 480 / 60Hz 800 x 600 / 60Hz 04 x 768 / 60Hz 80 x 04 / 60Hz 640 x 480 / 75Hz 800 x 600 / 75Hz 04 x 768 / 75Hz 80 x 04 / 75Hz...
  • Page 35 6.2.2 CAMERA List Option Item The „CAMERA” list option item is selectable from „DISPLAY” group icon. By selecting „CAMERA” list option item, window with two tabs appears. („CAMERA” tab and „PTZ” tab.) 1) CAMERA Tab Window In „CAMERA” tab window you can set the title and adjust the color, hue, and contrast of each camera. • NO.: Click the „NO. (Number)” button to show the „COPY SETTINGS” popup menu. • TITLE: You can change the Title of each camera using the virtual keyboard (Maximum  letters) • COVERT: If the option is set to „ON” the channel will not be displayed on the Live View screen. • ADJUSTMENT: You can adjust the brightness, contrast, saturation, hue, and horizontal position of each camera. Click the „TITLE” of the camera to display the virtual keyboard. You can change the title of each camera using virtual keyboard. NOTE: After typing in the title, press the Set button to save title. • The Title can be a maximum of  letters.
  • Page 36 Set communication speed among 9600, 900, 38400, 57600 and 500. (bps) • PAN: Left Right movement • TILT: Up Down movement • ZOOM: Zoom In Out • FOCUS: Focus Near Far Available PTZ Protocol list Manufacturer Protocol Type PELCO PELCO-D, PELCO-P Samsung SCC-64 MULTIX Unitech DRX50A, DSC30S eneo Fastrax IIE NOVUS NOVUS-C, NOVUS-C, N-CONTROL VIDO AU-GXX ONIX ON-D Sin Tech SU30 SENSORMATIC SENSORMATIC LILIN MERIT LILIN ACCUDOME AUCOME Model...
  • Page 37 6.2.3 REMOTE CONTROL list option item The „REMOTE CONTROL” list option item is selectable from „DISPLAY” group icon. By selecting „REMOTE CONTROL” list option item, window with two tabs appears. („RS3” tab and „REMOTE CONTROL” tab) 1) RS232 Tab Window Configuration for RS-3 is performed in „RS3” tab window • BAUDRATE: Set value among 00, 400, 4800, 9600, 900, 38400, 57600, 500. (bps) • DATA BITS: Set value from 5 to 8 • STOP BITS: Set value between  and  • PARITY: Set value among None, Odd and Even 2) REMOTE CONTROL Tab Window Configuration for remote controller is performed in „REMOTE CONTROL” tab window • Remote Control Type: Set Remote Control Type to set configuration for supplied remote controller. Set remote Control Type among 7 types: SINGLE, UNIVERSAL- ~ UNIVERSAL-6. • For multiple DVR control with one remote controller you need a universal type remote controller.

  • Page 38: Record

    6.3 Record 6.3.1 Setup These are three profiles that BCR series support: Channel: Set recording for Continuous recording Event: Set recording for Alarm and Motion detection. Panic: Set recording for panic recording The record will perform on a profile basis Recording Priority (PANIC > EVENT > CHANNEL) 1) Channel Set recording quality of each channel in continuous mode only Applicable schedule: Time, Time+Motion, and Time+Alarm • No.: Click to popup Copy Setting box. • Resolution: Set resolution among CIF, H-D & D. • Quality: Set recording quality among Low, Normal, High and Very High. • FPS: Set frames per second among , , 3, 4, 5, 6, 7(8), 0(), 5(5) & 30. • Overwrite: Check checkbox to enable recording over the oldest data once all available storage space has been used.
  • Page 39 2) Event Set recording quality of each channel when event occurs. Applicable schedule: Motion, Alarm, and Motion+Alarm 3) Panic Set recording quality of each channel in panic mode...
  • Page 40 4) Record Profile Example NOTE: PLEASE READ BELOW CAREFULLY FOR PROPER RECORD SETUP. Recording setup (resolution, quality, and fps of each camera) must be selected properly in order to record in every occasion. Channel Profile Event Profile CH1 Setting: Time-lapse record only. No record when event occurs in CH as ‘No Record’ is selected in Event Resolution (Time Mode in Schedule Setup) CH2 Setting: Event record only. No record during time-lapse. (Motion, Alarm, and M+A Mode) CH3 Setting: Time-lapse record. And also record when event occurs in CH (Time Mode) CH4 Setting: No record during time-lapse. No record when event occurs in CH CH3 Setting in other modes (T+M and T+A Mode in Schedule) Time-lapse record. And also record when event occurs either in CH or CH3 • If you choose ‘No Record’, there will be no recorded data. • When event occurs, event profile will be activated. Panic Profile...
  • Page 41 • When PANIC mode is triggered, all resolution-selected channels (cameras) will activate and start to record regardless modes in schedule. • PANIC recording can be started in both Live OSD and Front Key. 6.3.2 SCHEDULE List Option Item By clicking the „SCHEDULE” list option item in „RECORD” setup group icon the „SCHEDULE” tab window will appear. Here you set Time and Type of Schedule recording for each channel: • Record Type: Time: continuous recording ALARM-IN: sensor in MOTION: motion detection OFF: no recording Channel button: Click to popup the Copy Setting box. In normal cases (Unless you press Panic button), DVR records based on the schedule established in the Schedule. The Default mode is continuous recording. Click the square that represents the recording type, then select the cells to apply record type selection. You may click the hours to apply settings to certain hour of every week day or click on days to apply settings to all the hours available for day selected. Click on all to apply it to every hour every day. NOTE: RED: Alarm-In GREEN: Motion BLUE: Time YELLOW: Alarm + Motion SKY: Alarm + Time PURPLE: Motion + Time TRANSPARENT: Off...
  • Page 42 6.3.3 BACKUP List Option Item The „BACKUP” list option item is selectable from „RECORD” group icon. By selecting „BACKUP” list option item, window with „CDRW BACKUP” tab and „USB BACKUP” tab appears. 1) CDRW BACKUP Tab Window Recorded Video Information • FROM: Start time of recorded data on HDD • TO: End time of recorded data on HDD Backup Information • MEDIA: Available storage size of the inserted optical media (CDR media / DVD+ or – R media) • FROM: Start time of recorded video data to backup on optical media drive • TO: End time of recorded video data to backup on optical media drive • BACKUP SIZE: Total size of data to be backed up ranging from MB to space available on inserted optical media. • CHECK BACKUP SIZE: This button is used in two scenarios.
  • Page 43 2) USB BACKUP Tab Window Recorded Video Information • FROM: Start time of recorded data on HDD • TO: End time of recorded data on HDD Backup Information • MEDIA: Available storage size of the inserted solid state media (USB memory stick only) • FROM: Start time of recorded video data to backup on USB memory media device • TO: End time of recorded video data to backup on USB memory media device • BACKUP SIZE: Total size of data to be backed up ranging from MB to space available on inserted USB memory media device • CHECK BACKUP SIZE: This button is used in two scenarios: . To calculate the end time by selecting FROM and BACKUP SIZE setting . To calculate the backup size by selecting FROM and TO setting • STATUS: Message shows current status of system • BACKUP FILE NAME: Create backup file name by initiating virtual keyboard box NOTE: When there is message ‘MEDIA ERROR’...

  • Page 44: Event

    6.4 Event 6.4.1 ALARM List Option Item The „ALARM” list option item is selectable from „EVENT” group icon. By selecting „ALARM” list option item, „ALARM-IN” tab window appears. 1) ALARM-IN Tab Window Set sensor On / Off and Dwell time for each channel in case external sensor activates. • NO.: Click the „NO. (Number)” button to show the „COPY SETTINGS” popup menu. (There are alarm channels 1~4 shown by default). • TYPE: Set external sensor input NO/NC/OFF for each camera. • BEEP: Set beeping sound „ON” or „OFF” in the event of triggering of alarm.
  • Page 45 6.4.2 Motion List Option Item The „MOTION” list option item is selectable from „EVENT” group icon. By selecting „MOTION” list option item, window with „SETUP” tab and „ACTION” tab appears. 1) SETUP Tab Window Set Motion Detection setting for each channel • NO. : Click the „NO. (Number)” button to show the „COPY SETTINGS” popup menu. (There are alarm channels 1~4 shown by default). • TYPE: Set motion mask setting „ON” or „OFF” for each channel. • BEEP: Set beeping sound „ON” or „OFF” in case motion event occurs.
  • Page 46 NOTE: Default Setting of DVR is ‘CLEAR ALL’ which means deactivate all. User must select mask zone firstly, before set ‘Motion’ scheduled Recording. 2) ACTION Tab Window Set Alarm-Out On / Off for each channel in case motion is detected. NO.: Click the „NO. (Number)” button to show the „COPY SETTINGS” popup menu. • ALARM-OUT: Set „ON” or „OFF” for sending alarm signal to relay output terminal 6 channel DVR has  and  out ports...
  • Page 47 6.4.4 ALARM-OUT List Option Item The „ALARM-OUT” list option item is selectable from „EVENT” group icon. By selecting „ALARM-OUT” list option item, window with „SETTING” tab and „SCHEDULE” tab appears. 1) SETTING Tab Window • DURATION: Output dwell time for Alarm-Out when trigger by Alarm/Motion/Video-Loss events configurable between  to 99 seconds. 2) SCHEDULE Tab Window • DAY: Select day of a week for output selectable by ALL, MONDAY ~ SUNDAY, WEEKDAY and WEEKEND. • START TIME: Select start time for output • End time: Select end time to end output • MODE: Select mode among Event, On, and Off Event: On in case of Alarm or Motion On: Always On, regardless of Event Off: Always OFF, regardless of Event • OUT1: Mark checkbox to send signal to relay output terminal  (Pin 5). • OUT2: Mark checkbox to send signal to relay output terminal  (Pin 6).

  • Page 48: Network

    6.4.5 BUZZER List Option Item The „BUZZER” list option item is selectable from „EVENT” group icon. By selecting „BUZZER” list option item, window with „BUZZER” tab appears. In this window configuration of Buzzer to be on or off is set. • KEY BEEP: Set „ON” or „OFF” to enable and disable audible beep for mouse, frontal key pad or remote controller entry. • VIDEO LOSS: Set „ON” or „OFF” to enable and disable audible beep for Camera Loss. • ALARM-IN: Set „ON” or „OFF” to enable and disable audible beep for detection of external sensor input. • MOTION DETECT: Set „ON” or „OFF” to enable and disable audible beep when motion is detected. If Buzzer Menus are Off, buzzer will not be activated even Alarm/Motion/Loss Menus are On. 6.5 Network 6.5.1 LAN List Option Item The „LAN” list option item option is selectable from „NETWORK” group icon. By selecting „LAN” list option item, window with „ETHERNET” tab, „DDNS” tab and „TRANSMISSION” tab appears. 1) ETHERNET Tab Window Setup to enable viewing live screen or searching/backup recorded data on HDD remotely over the network. •...
  • Page 49 • IP ADDRESS popup: In case of Static IP, Type IP address in IP ADRESS window. • PORT: Port setup is configurable between 0 to 65000. 50000 is default port for the DVR. Some networks may require router or firewall configuration to enable in-coming and out-going ports to be opened. Consult your network administrator to open assigned port for the DVR. • WEBSERVER: Select the checkbox ON or OFF to enable and disable Web Server option. Number: WEBSERVER PORT number (Default Web Server port is 80) If the number is 90, connect to http://4.06..95:90/. • GATEWAY popup: Is available by pressing the GATEWAY button. (STATIC IP only) • SUBNET popup: Is available by pressing the SUBNET button. (STATIC IP only) 2) DDNS Tab Window Set DDNS Server Connection. • DDNS ON/OFF: Select On to enable, Off to disable the DDNS option. • DDNS SERVER: Input server domain name address. Input server domain name, or select Static IP to input IP address manually.
  • Page 50 3) TRANSMISSION Tab Window Image of selected channel will be transmitted to Viewer of IRS. Default setting: all channels selected 6.5.2 NOTIFICATION List Option Item The „NOTIFICATION” list option item is selectable from „NETWORK” group icon. By selecting „NOTIFICATION” list option item, window with „SETTING” tab, „EMAIL” tab and „EVENT” tab appears. 1) SETTING Tab Window Set notification for both e-mail and event server. • RETRY COUNT: Number of times of retrial (Set from ~30) • SEND INTERVAL: Send information either when set time expires or when number of event reaches set duration. • SEND CONDITION: Send information for the selected event to e-mail or Event server.
  • Page 51 2) EMAIL Tab Window • SEND E-MAIL ON/OFF: Select ON to enable, OFF to disable • SEND SEVER IP: Enter the SMTP (out going mail) server IP. • SEND PORT: Enter the SMTP (out going mail) server port number obtained from your ISP. (in many cases your Internet Service Provider may have special setting requirements or restriction for SMTP settings. You may have to obtain an email account service that provides SMTP relay service that lets you bypass the ISP restrictions.) Set send server port number from 0 to 65000. • AUTHENTICATION: enable the check box if your ISP or email account provider requires server authentication for outgoing mail services. • SEND SEVER ID: Enter the e-mail user ID or ID to authenticate with SMTP (provided by ISP or e-mail accounts provider) using the virtual keyboard. • SEND SEVER PW: Enter the e-mail PW or PW to authenticate with SMTP (provided by ISP or e-mail accounts provider) using the virtual keyboard. • SENDER: Enter the sender’s e-mail address.

  • Page 52: System

    6.6 System The „INFORMATION” list option item is selectable from „SYSTEM” group icon. By selecting „INFORMATION” list option item, window with „INFORMATION” tab appears. 6.6.1 INFORMATION List Option Item • LANGUAGE: Set language of System Menu between English, French, Spanish, Italian, Portuguese, Dutch, Russian, German, Turkish and Polish. • VERSION: Displays current firmware version for the DVR. • UPGRADE SW: Button used to upgrade current firmware. • IMPORT SETUP: Bring setup values saved to USB media device. You can apply same setup value of a DVR to other DVRs easily. (Popup windows will appear and examples are illustrated on next page) • EXPORT SETUP: Save current setup value to USB storage. (Popup windows will appear and examples are illustrated on next page) • DEFAULT ALL: Factory default for all menus. (See Appendix A, page 96) If you run Default All, Time/Date and Password will all be defaulted. After Default All you must set time/date and clear HDD for normal operation.
  • Page 53 Click Upgrade SW button, and pop-up box appears. • Storage Status: Shows firmware update progress. • Upgrade File: Name of file to upgrade • Information: Shows error code in case of error Recording will stop while upgrading. Click IMPORT SETUP button, and import window pops up. • FILE NAME: Show name of the file in USB which contains setup value • INFORMATION: Displays error code in case of error Click EXPORT SETUP button to save DVR’s setup value to USB • EXPORT: Save export setup value to USB Click on SYSTEM LOG button to show systems log saved by the DVR unit. Shows list of Start/End time of Panic Recording, Start/End time of Schedule recording, and WHO/ WHEN logged in/out. • DATE/TIME: Date and time of event • EVENT INFORMATION: Event type (Panic record, start/stop, Schedule record start/ stop, HDD full record stop, etc) • PAGE BOX: Current page / Total pages (maximum pages retained are ,048 pages).
  • Page 54 6.6.2 DATE/TIME List Option Item The „DATE/TIME” list option item is selectable from „SYSTEM” group icon. By selecting „DATE/TIME” list option item, window with „DATE/TIME” tab, „HOLIDAY” tab and „TIME SYNC” tab appears. 1) DATE/TIME Tab Window Set Date/Time of the DVR unit. • DATE: Set Year, Month, Day. Year can be set from 008 to 099. • TIME: Set Hour, Minute, Second • DATE FORMAT: Choose date format among YY/MM/DD, MM/DD/YY and DD/MM/YY. • MONTH FORMAT: Choose month format between numbers and letters. • TIME FORMAT: Choose -hour mode (am./pm.) or 4-hour-mode. • TIME ZONE: Select area zone, and input current time. (GMT+09:00) Seoul –> GMT standard time + 09:00 = Time of Seoul, Korea. • USE DST checkbox: Check box for Daylight Saving Time.
  • Page 55 2) HOLIDAY Tab Window Set national holidays or holidays on calendar to record as setting for Sunday in Schedule Record Setup. The „HOLIDAY” setting allows the option to preset all Holidays on the DVR calendar. You can then specify to record with the „HOLIDAY” settings on the „SELECT DAY OF WEEK” in the „SCHEDULE RECORD” setup. • ADD: Click the „ADD” button and today’s month and day will be added on the screen. Click month and day to change the date of the holiday. („ADD” option must be selected first to add and change the month and date. After adjusting all setting „SAVE” button confirms the changed selection. Without clicking on „ADD” button „MONTH” and „DATE” parameters are not selectable.) • DELETE: to delete the holiday schedule you must select the check box located on far right hand side and then click the „DELETE” button. • SELECT DAY OF WEEK: Set selected day of week as holiday. (Default is Sunday) • : Current Page/Total Pages 01/01 • LEFT ARROW BUTTON : Previous page • RIGHT ARROW BUTTON : Next page •...
  • Page 56 to the DVR due to unforeseen restriction with SNTP provider. If this event happens please obtain a different SNTP server IP address and retry. • RETRY COUNT: Select from  to 30 retries • INTERVAL: Automatic Sync Interval (0.5, , , 3, 4, 5, 6, , 4 hours) • LAST SYNC TIME: Shows time of Last Sync. 6.6.3 STORAGE List Option Item The „STORAGE” list option item is selectable from „SYSTEM” group icon. By selecting „STORAGE” list option item, window with „INFORMATION” tab appears.
  • Page 57 6.6.4 USER List Option Item The „USER” list option item is selectable from „SYSTEM” group icon. By selecting „USER” list option item, window with „USER” tab appears. Set password for each user grade or check Auto Login checkbox for auto Login. • USER: Choose between admin, manager, user  ~ user 8. • PASSWORD: Set password for each user grade. (Maximum 8 characters. Upon selecting „EDIT” button it invokes „CHANGE PASSWORD” popup window. Detailed illustration is shown on next page) • AUTHORITY: Admin can set authority to access to setting menu for each user grade. (Upon selecting „EDIT” button it brings up „AUTORITY SETUP” popup window. Detailed illustration is shown below on this page) • AUTO LOGIN: Logs in automatically to setup menu without asking User and Password when turning the DVR power on. • AUTO LOGOUT: Logs out automatically when certain time passes. Time can be set to , , 3, 4, 5, 0 minutes. If you click „EDIT” in „PASSWORD” section, CHANGE PASSWORD window pops up. Click Current Password, CURRENT PASSWORD window pops up. Password is from  digit to 8 digit number.
  • Page 58 If you click „EDIT” in „AUTHORITY” section and AUTHORITY SETUP window pops up. Set authority to access for each user type using this method. Administrator account has all the menu item enabled and it is only required Corresponding user type will have authority to access certain menu item and those access items are shown with check box enabled. Only Admin has authority to enable checkbox. 6.6.5 LOGOUT List Option Item The „LOGOUT” list option item is selectable from „SYSTEM” group icon. By selecting „LOGOUT” list option item, window with „LOGOUT” warning message box appears. 1) Warning message box • This message box will log out current user account used to access the system. When menu operation or search operation is initiated system will require log in process again for access rights. • Log out is alternative way to lock certain features for unwanted access to the DVR unit.

  • Page 59: Dvr Operation

    7. DVR Operation 7.1 Live Monitoring Once DVR completes its initialization, live screen displays on connected monitor with live audio through connected speaker. Default mode is displaying all connected camera channels at once. Pressing a certain camera channel button will switch display to full screen mode of the camera channel. This mode continues unless other mode is selected. Press MODE button on frontal key pad or remote controller to switch to other display formats. From MONITORING popup menu, , 4, 9, 6 split display mode is available, and by pressing MODE button on the frontal key pad and remote controller, , 4, 6, 8, 9, 3, 6 split display mode is available. PIP, Zoom, FRZ, Sequence will not function while in Playback mode. 7.1.1 PIP When PIP button is pressed, one channel displays on the full monitor screen while another small screen displays in inset window in sequence. Set sequence interval from MENU - Display - Display - Main - Sequence Interval. (Detailed configuration examples are available for PIP on pages ~) Press PIP button again or switch to other display format to exit PIP mode. While in PIP mode, PTZ Control, Freeze, Zoom, Sequence will not function. 7.1.2 ZOOM Press ZOOM button to zoom in x. Press the button again or switch to other display format to return to normal size. Move selected frame by mouse control or arrow keys. Zoom function is available only in full screen mode. While in zoom mode, PTZ Control, Freeze, Sequence, PIP will not function. (Detailed configuration examples are available for ZOOM on page 0) 7.1.3 FRZ Press FRZ button to freeze image. Press the button again or switch to other display format to exit freeze mode. While in FRZ mode, PIP, Zoom, Sequence, PTZ Control will not function...
  • Page 60 7.1.4 SEQ While in full screen mode, press SEQ button on frontal key pad or the remote controller to cause channel of connected cameras to display sequentially according to the preset dwell time. Access MENU - Display - Display - Main - Sequence Interval Popup for dwell time setup. (illustration available in page 33) Access MENU - Display - Display - Main - Sequence Mode Popup for channel display mode. (illustration available in page 33) Press the button again or switch to other display format to exit sequence mode. While in sequence mode, PTZ Control, Freeze, Zoom, PIP will not function. Freeze Zoom Sequence  full screen mode 4 split ~ 3 split display mode 6 split display mode In playback mode Setup root Menu –> Display –> Display Setup Menu –> Display –> –> Main –> Sequence Mode Display –> Main –> / Sequence Interval Sequence Interval 7.1.5 PTZ User with PTZ Control Authority can control PTZ cameras. (Access Menu - System - User - Authority and check checkbox for user authority for PTZ control. Illustrated on page 58) Access Menu - Display - Camera - PTZ to setup PTZ model, PTZ ID, and Baud rate. (illustrated on page 36)
  • Page 61 For PAN left and right, press LEFT and RIGHT buttons, and for TILT up and down, press UP and DOWN buttons. For ZOOM IN, press Wide button, and for ZOOM OUT, press Tele button. For focusing, press NEAR or FAR buttons. Button Function Button Function 1 / TELE 11 / GOTO ZOOM IN GOTO PRESET 2 / WIDE 12 / AUTO ZOOM OUT AUTO SCAN 3 / NEAR FOCUS NEAR TILT UP 4 / FAR FOCUS FAR TILT DOWN 5 / ON POWER ON PAN LEFT 6 / OFF POWER OFF PAN RIGHT 7 / OPEN...
  • Page 62 Please refer to the user’s manual provided by PTZ camera manufacturer for proper settings. Some functions may not be supported, depending on the detailed specification of camera. Popup-Menü zur PTZ-Steuerung Easy PTZ control with mouse operation: With virtual joystick, user can control PAN left/right, TILT up, down with mouse operation. Button Function TELE Zoom in WIDE Zoom out NEAR Focus near Focus far OPEN Iris open CLOSE Iris close EXIT Exit PTZ control JOYSTICK Pan/Tilt control...

  • Page 63: Event Monitoring

    7.2 Event Monitoring Event Monitoring Setup () For event monitoring, user must have authority for Schedule and Event. (Access Menu - System - User - Authority and check Schedule and Event. Illustrated on page 58) () Access Menu - Record - Schedule to set Recording type for Alarm-In or Motion. (illustrated on page 4) (3 To see event you must configure items below: • Alarm: Menu - Event - Alarm-Out (illustrated on page 47) • Motion: Menu - Event - Motion - Action (illustrated on page 46) • Video Loss: Menu - Event - Video Loss (illustrated on page 46) (4) You may control what is being seen on the OSD by selecting checkbox of Alarm/Motion Event from MENU –...

  • Page 64: Mouse Operation

    7.3 Mouse Operation For easy operation while live monitoring, user can use mouse (PS) instead of key buttons. In split screen mode, double clicking a certain channel screen will switch the channel into a full screen mode. Double clicking the screen again will return to previous split display mode. Click right button of mouse while live monitoring and popup menu appears as below: Live monitoring popup menu Live monitoring popup menu in full screen mode in split screen mode Click Freeze, Zoom, Sequence, PIP menu, and it will function the same as pressing FRZ, ZOOM, SEQ, PIP buttons. Click right button of mouse in Live mode, and popup menu appears as below: • Goto Channel: Select channel to display in full screen mode. • x Split: Display in 4 split screen mode • 3x3 Split: Display in 9 split screen mode • 4x4 Split: Display in 6 split screen mode...

  • Page 65: Record

    7.4 Record Record Setup (refer to Chapter 6.3 for record setup details) () For Record, user must have authority for Record. (Access Menu - System - User - Authority and check Record, (illustrated on page 58) () For Continuous record: Access Menu - Record - Setup - Channel - Resolution and set record quality settings. For event record: Access Menu - Record - Setup - Event - Resolution and set record quality settings. For panic record: Access Menu - Record - Setup - Panic - Resolution and set record quality settings. If you choose ‘No Record’, there will be no recorded data.

  • Page 66: Calendar Search

    7.5.1 Calendar search Recorded data displays in calendar Search. • << Shows previous month • >> Shows next month • Goto: Date, Time • Goto st box: Shows date in YY-MM-DD format to search. • Goto nd box: Shows Hour to search. Change Hour from 0~3 by clicking the box. • Goto 3rd box: Shows Minute to search. Change Minute from 0~59 by clicking the box. • Goto 4th box: Shows Second to search. Change Second from 0~59 by clicking the box. • Preview: Playback for 0 seconds from the set date/time and return to calendar search. • Playback: Playback from the set date/time • Exit: Exit search menu Year can be set from 007 to 099. (Years with recorded data can be changed.) Days with recorded data will display on the calendar with white numbers. Click the number, and information of selected date and time appears as below. • If dots are white, it means it contains recorded data. If dots are black, it has no recorded data. • Select white dot, or input time in ‘Goto’ box, and press Preview / Playback to begin playback.

  • Page 67: Event Search

    Yellow cubic contain recorded data of alarm + motion recording Cyon cubic contain recorded data of alarm + time recording Small Dots doesn’t contain recorded data.  dot/cubic is  minute. 7.5.2 Event search Recorded data for Event (Motion, Alarm, Loss, Panic) displays in Event Search. • << Shows previous month • >> Shows next month • First: Date/Time of the first event recorded • Last: Date/Time of the last event recorded • Exit: Exit search menu Click date from the calendar, and event list of the day will display. Year can be set from 008 to 099. (Years with recorded data can be changed.) Click Time of event you wish to see and click PREVIEW or PLAYBACK. • ALL TYPE: Event selection that shows in ALL TYPE is Motion, Alarm, Loss, and Panic. List of selected event will be shown. • CHANNEL: Channel selection showing ch~6ch. List of selected channel will be shown. • RETURN: Return to first page of calendar menu of the event search. • PREVIOUS: Shows previous page • NEXT: Shows next page • PREVIEW: Starts playback from set time for 0 seconds and return to Event Search Menu.

  • Page 68: Bookmark Search

    Click ALL TYPE button and you Click CHANNEL button and you can choose a event type to be can choose a channel to be listed listed from scroll box. from the scroll box. 7.5.3 Bookmark search The Bookmark search screen displays a list of the video associated with bookmark in the playback mode. • Time: Shows time of the bookmarked list • Login: Shows user grade who bookmarked the list • Delete Checkbox: Check box of the list to delete • Preview: Starts playback from set time for 0 sec and return to Calendar Search Menu • Playback: Starts playback from set time • Previous: Shows previous page • Next: Shows next page • Exit: Exit search menu Admin or Manager can create bookmark list up to 4 lists each. While in Playback mode, every time Admin or Manager presses the BOOKMARK button, new time data will be created on the list. Bookmark: 09 2009/04/21 06:23:47 When bookmark lists are full, message appears as below: Bookmark Over ! 2008/04/21 06:23:47 Select a time data and click Playback button to playback. Playback will continue till the end time of...

  • Page 69: Playback

    7.6 Playback User who has authority to playback can play recorded data. Set authority from Menu - System - User - Authority. (illustrated on page 58) While in Live mode, user can playback from Monitoring popup menu, or by clicking Playback button from Search menu. • Left arrow button Backward playback • Right arrow button Forward playback • UP arrow button (1/32x, 1/16x, 1/8x, 1/4x, 1/2x ,1x, 2x ,4x ,8x,16x, 32x) Increase forward playback speed; decrease backward playback speed • DOWN arrow button (1/32x, 1/16x, 1/8x, 1/4x, 1/2x ,1x, 2x ,4x ,8x,16x, 32x) Increase backward playback speed; decrease forward playback speed SEARCH / STOP Pressing the STOP button from Playback mode will switch screen to Live mode.

  • Page 70: Network Setup

    7.7 Network Setup 7.7.1 DVR Network Setup Verifying Network Settings in a Windows 98/000/XP/Vista Environment. ) Click Windows START button. ) Click RUN and input „cmd”. (In Windows Vista, you may have to enable the run command box) 3) Input „ipconfig” from COMMAND PROMPT. (In Windows Vista, you have to run this command under Administration Mode) 4) Check IP address, Subnet Mask and Gateway. 5) Type „Ping xxx.xxx.xxx.xxx” (IP address). If you see „Request timed out” message, your DVR is not connected to the network. An IP address which failed the Ping Test can not be used. 6) If the Ping test is successful, you will see a message illustrated below: „Packets: Sent -4, Received – 0, Lost – 0 (0% Loss)”...
  • Page 71 7.7.2 Static IP Input the IP address assigned from your Internet Service Provider in IP SETUP. ) Verify if the IP address is OK with your PC before connecting DVR. ) Connect static IP LAN cable to the DVR after verification: Router Connection Router ISP Company Remote PC Direct Connection ISP Company Remote PC...
  • Page 72 3) Access Menu - Network - LAN - Ethernet in DVR. 4) Set IP TYPE to STATIC. 5) IP address popup button In case of router connection Assign an internal IP address to the DVR. (Ex: 9.68.0.05, The IP scheme must match your router’s settings) The Assigned IP address should only be used for the DVR internally (On the same LAN). In case of direct connection Assign the static IP address to DVR. (Ex: .06..95, This address is provided by your service provider) Static IP address assigned by ISP is the IP address for DVR. (On the same LAN or WAN) 6) Set IP port. (50000 recommended and is default on DVR) 7) Input GATEWAY assigned from the ISP. 8) Input SUBNET MASK assigned from the ISP. 9) Save settings and exit menu. 0) Turn off the Modem or Router provided by the ISP, and turn it on again.
  • Page 73 ) Click IRS Setup and click Add button. 3) Address / Port / User ID / Password Box: In case of Router connection Internal connection • Address: Input assigned IP address to DVR. (Access Menu - Network - LAN - Ethernet to see assigned IP address) • Port: Input Port number. 50000 recommended. (Input same Port number on Router and DVR in this box.) • User ID: Input same ID as in DVR. • Password: Input same Password as in DVR. Remote connection Follow all steps of Internal connection, except inputting IP address. IP address will be assigned while Port forwarding process. Please see User Manual of Router for details. In case of direct connection Internal connection Without a Router, it is not able to connect the DVR internally (Local remote access).
  • Page 74 7.7.3 Dynamic IP Select DYNAMIC IP from DVR’s TCP/IP SETUP and IP address will be assigned from ISP’s DHCP server. ) Verify if IP address is OK with your PC before connecting DVR. ) Connect dynamic IP LAN cable to DVR after verification. Router Connection Router ISP Company Remote PC Direct Connection ISP Company Remote PC...
  • Page 75 3) Turn off the Modem provided by the ISP, and turn on again. (This process is to reset client’s MAC from ISP. Wait for 30 seconds after turning on.) 4) After the modem is completely powered on (check LED indicators on the modem to verify), turn the DVR off and turn on again. 5) Access Menu - Network - LAN - Ethernet in DVR. 6) Set IP TYPE to Dynamic and click DHCP button, and IP address and Gateway will be read automatically. 7) Set IP Port. (50000 recommended and is default on DVR) 8) Save settings and exit menu 9) Access DVR with IRS program...
  • Page 76 0) Click IRS Setup and click Add button. ) Address / Port / User ID / Password Box: In case of Router connection Internal connection • Address: Input assigned IP address to DVR. (Access Menu - Network - LAN - Ethernet to see assigned IP address) • Port: Input Port number. 50000 recommended. (Input same Port number on Router and DVR in this box.) • User ID: Input same ID as in DVR. • Password: Input same Password as in DVR. Remote connection Follow all steps of Internal connection, except inputting IP address. IP address will be assigned while Port forwarding process. Please see User Manual of Router for details. In case of direct connection Internal connection Without a Router, it is not able to connect the DVR internally (Local remote access).
  • Page 77 7.7.4 E-Mail setup 1) Send Server IP address setup In Send Server IP box, input SMTP server IP address received from System Manager. In case users don’t know SMTP server IP address, ask to server administrator. Check send server IP for Outlook Express: Open Outlook Express, and click TOOLS(T) – ACCOUNT(A). Click PROPERTY(P), and property window pops up as left image.
  • Page 78 Click SERVERS tap, and you can check SMTP address. Click Windows START button, and click RUN and input „cmd”. Input „ping xxxxx.xxx(SMTP address)” and you can check IP address. Set this IP address in Send Server IP popup button.
  • Page 79 2) Send Port Setup Input 5 for mail port number in DVR. (some SNTP server might have different send port address consult with your network administrator or email provider). 3) Send Server ID / Send Server PW Setup Input ACCOUNT NAME(C) to Send Server ID on your DVR. Input PASSWORD(P) to Send Server PW on your DVR. In case users don’t know Send server ID/PW, ask to SNTP server administrator. 4) Recipient Setup Input E-MAIL ADDRESS(M) to Recipient on your DVR.

  • Page 80: Integrated Remote Station

    Received e-mail example: shown in detail below 8. Integrated Remote Station 8.1. IRS Setup ) See minimum and recommended system requirement below. Contents Min. Spec. Recommended Spec. Intel Pentium 4 3.0GHZ Intel Pentium 4 CoreDuo .8 or higher Main memory 5MB GB or higher Video memory 8MB 5MB or higher 80GB 0GB or higher Network Cable/DSL Fast Ethernet Window XP, Window Vista Monitor 04 x 768 (with 4 bit color) or higher Others Direct X 9.0 or later version...
  • Page 81 ) Insert software CD and run install file. Click Next button to continue. 3) S-IRS program will install itself in C:\Program Files\S-IRS folder unless specified differently by user. If you want to change directory, click Change button. Click Next button to continue. 4) If you want to review or change any of installation settings, click BACK, but if you want to proceed, click NEXT. 5) When you click NEXT button, you will see installation process, and when installation is done, S-IRS icon will be created on windows back- ground.

  • Page 82: Irs Operation

    8.2 IRS Operation 8.2.1 IRS (Integrated Remote Station) Display Integrated Application call buttons IRS is suite of application software that has following applications mentioned below. These applications are called up by clicking on the buttons seen below the main IRS screen. • CLIENT SETUP: Setup a list of DVRs within the S-IRS application • REMOTE SETUP: Change DVR setup remotely over network • REMOTE VIEWER: View live display of DVR...

  • Page 83: Client Setup

    8.2.2 Client Setup CLIENT SETUP: Setup a list of DVRs within the S-IRS application • ADDRESS: Input same IP address set on DVR • PORT: Input same Port number set on DVR • USER ID: Input same ID as in DVR • Password: Input same Password as in DVR NOTE: You must configure below settings before proceeding. • IP address and Port number: [Menu]-[Network]-[LAN]-[Ethernet] • User ID and Password: [Menu]-[System]-[User] • Select User ID among Admin, Manager, User 1 ~8 •...

  • Page 84: Remote Setup

    8.2.3 Remote Setup REMOTE SETUP: Change DVR setup remotely over network. • MANUAL: Select to input IP address and Port number manually. • ADDRESS: Locate DVR’s IP address then enter it in this field box. • PORT NUMBER: Locate DVR’s TCP port setting then enter it in this field box. • ID: Locate ID assigned to the DVR then enter it in this field box. • PASSWORD: Locate password assigned to the DVR then enter it in this field box. • CONNECT: Connect to access DVR’s SETUP MENU. • CLOSE: Exit DVR Setup and return to main page. Each menu is identical to the setup menus of the DVR. Refer to Chapter 6. DVR Setup for more details.

  • Page 85: Remote Viewer

    8.3 Remote Viewer DVR connection setup: Input IP address, Port number, ID, Password System Information: Displays DVR connection and progress status. PTZ Control: Control PTZ cameras connected to DVR (PTZ setting in DVR must be completed to enable operation of PTZ.) Connect: Connect to DVR via network to view live image. Disconnect: Disconnect network connection Setup: Set quality and frame rate for each camera channel. Channel selection: Select a channel or a group of channels to display in full screen mode or in 4/9/6 split screen mode. Screen division: Select layout of split screen...

  • Page 86: Search

    8.4 Search 8.4.1 Search DVR connection setup: Input IP address, Port number, ID, Password. System information: Displays connection status and system operation information. Start / End: Displays start time and end time of total recorded data. Connect: Connect to DVR via network. Disconnect: Disconnect network. Event: Click to pop up window for search by date, event and bookmark. Edit: Edit freeze image in full screen mode. AVI Save: Save a full screen mode channel in AVI file format. (AVI save only is applicable for single channel view. Select the channel you want to save as AVI before initiating AVI save) Channel selection: Displays selected channel in full screen mode. Screen division: Select screen split layout among ,4,9,6 split mode. 10) Control bar: Playback control toolbar Buttons from left to right: Goto the first image Fast backward playback Backward playback Freeze ...
  • Page 87 8.4.2 Percent / Date search Click EVENT button from main Search page. Start / End: Displays start time and end time of total recorded data on DVR Date / Time: Search by input date and time Search bar: Search by percentage of recorded data on HDD OK: Request DVR to search data on set time From main Search page, click PLAY button to begin playback on set time. Cancel: Close search window 8.4.3 Event list search Click date on calendar, and Event List of the day will be displayed. Select event and click OK to playback, or just double click the event. Left / Right button: Displays Previous / Next 00 lists.

  • Page 88: Backup

    8.4.4 Bookmark list search Every time the user, logged in as Admin or Manager, pressed the BOOKMARK button, new time data is created on the list. Select time data and click OK to playback, or just double click the time data. 8.5 Backup ) To run BACKUP, input IP Address and Port, and click Connect Test button.
  • Page 89 ) Click Connect Test button, and when network connection is successful, „Success Connect Test!„ message will appear in the message box. 3) Click Lock button, and receives information of recorded start time / end time from DVR. It will automatically update information every 0 seconds, or click Update button for immediate update.
  • Page 90 4) Click Set Backup Time button and set Start Time, End Time, Save File Path, File Size, and click Apply button. • Recorded Start Time: Start time of recorded data on HDD at the time of clicking LOCK button. • Recorded End Time: End time of recorded data on HDD at the time of clicking LOCK button. • Save File Path: Configuring path for local PC that will retain the recorded information. • Maximum Save File Size: Split file size into 0MB, 50MB, 00MB,50MB, 00MB~700MB. • Start Backup Time: Set start time of data to backup. • End Backup Time: Set end time of data to backup. • Set Channel: Click SELECT ALL button to backup all channels, or select each channel to backup by clicking the channel number (Grey: Off; Blue: On)

  • Page 91: Player

    8.6 Player 8.6.1 Player 1) TIME: Displays start time, end time, current playback time 2) SPEED / SLOW MOTION: Control playback speed SPEED: Set fast playback speed : x, 4x, 8x, 6x 3x SLOW MOTION: Set slow playback speed: x, /x, /4x, /8x, /6x, /3x 3) Open: Playback backup file on PC (System resident file format is called SM4 file format and this file format will only be play backed using software provided with this DVR) 4) Edit: Edit freeze image in full screen mode 5) AVI Save: Save a full screen mode channel in AVI file format 6) De-interlace: De-interlace option enabled for D size image 7) Slide Bar: Search data with slide bar 8) Channel selection: Displays selected channel in full screen mode 9) Screen division: Select screen split layout among , 4, 9, 6 split...
  • Page 92 8.6.2 Player – Edit Panel IMAGE EDIT 1) CONTRAST: Set contrast in full screen mode 4) IMAGE SAVE: Save full screen freeze image to file : Used to increase the contrast of images : Save still picture in JPEG file format Image will be saved in the folder where : To reduce light and shade, lower contrast playback program is installed. 2) BRIGHT: Set brightness in full screen mode 5) IMAGE PRINT: Print full screen freeze image : Make image brighter : Print image : Make image darker 3) SHARP: Set sharpness in full screen mode : Make sharp-edge effect : Apply image softening effect 8.6.3 Player – AVI Save Panel AVI SAVE 7) AVI Save Option: Set frame rate, size of file to be saved in AVI format.

  • Page 93: Frequently Asked Questions

    9. Frequently Asked Questions (FAQ) Q. DVR will not turn on even if the power switch is „ON” position. A. Make sure the DVR is connected to the DC V power jack. Q. After turning on the DVR, Power LED on front panel lights, but no video output on monitor. A. Make sure the monitor is turned on and connected to DVR. Check monitor’s brightness control.

  • Page 94: Technical Specifications

    10. Technical Specifications Type 4 Channel – BCR-3004 8 Channel – BCR-3008 16 Channel – BCR-3016 Art. No. 72663, 72886, 72887 72803, 72888, 72889 72804, 72891, 72892 Series Operation mode Pentaplex (Live, Playback, Recording, Backup, Network) Video standard PAL/NTSC (automatic selection) Video inputs (amount) Video inputs Vp-p, (C)VBS, 75ohms, BNC (loop-through)
  • Page 95 Type 4 Channel – BCR-3004 8 Channel – BCR-3008 16 Channel – BCR-3016 Art. No. 72663, 72886, 72887 72803, 72888, 72889 72804, 72891, 72892 Integrated writer Secondary Storage USB .0 interface. Network Data Export: AVI, JPG, BMP Control units (external) Remote Control, Mouse Remote access Remote Software Remote Software For monitoring, Search & Playback, Backup Set-up via on-screen menu...

  • Page 96: Appendix A - Factory Default Value

    Appendix A – Factory Default Value When you press Default All button on Menu - System - Information all values will be defaulted as example-factory setting values. See below for detailed factory default values. System Menu MENU SUBMENU MENU TITLE FACTORY DEFAULT VALUE Information Information Language English Date/Time Date/Time Time format Time Zone (GMT) Greenwich Mean Time : London, Dubi Use DST Not checked Holiday Select day of week Sunday Time Sync Automatic Sync Time Server ,06,53,088 Retry Count Interval Last Sync- Time ----/--/-- --.--.--...
  • Page 97 Network Menu MENU SUBMENU MENU TITLE FACTORY DEFAULT VALUE Ethernet MAC Address 00-0A-A-08-08-68 IP TYPE Dynamic Port 50000 DDNS DDNS On/Off DDNS Server Static IP .06.53.088 0000 DVR ID SDVR 6CH Update Interval Last Update ----/--/-- --.--.-- Transmission CH ~ CH6 Checked Notification Email Send M-mail On/Off Retry Count Sender Server IP 0.6.04.60 Send Port Send Server ID SDVT Send Server PW **** Sender hotmail.com...
  • Page 98 Device Menu MENU SUBMENU MENU TITLE FACTORY DEFAULT VALUE Camera Camera Copy Settings CH: Checked, CH~CH6: Not checked Title CAM0 ~ CAM6 Covert Adjustment Brightness –> -0 Contrast –> -5 Saturation –> +6 Hue –> +6 Position -> +7 Copy Settings CH: Checked, CH~CH6: Not checked Protocol PELCO-D PTZ ID  ~ 6 Speed Baud rate 9600 Display Date/Time Checked Percent Bar Checked Camera Title Checked Resolution/Quality Checked Alarm/Motion Event Checked Boot Logo...
  • Page 99 MENU SUBMENU MENU TITLE FACTORY DEFAULT VALUE RS3 RS3 Baud rate 500 Data bits Stop bits Parity None REMOTE Remote Control Type SINGLE CONTROL Buzzer Buzzer Buzzer Video Loss Alarm-In Motion Detect Record Menu MENU SUBMENU MENU TITLE FACTORY DEFAULT VALUE Setup Channel Copy Settings CH: Checked, CH~CH6: Not checked Resolution Quality High Overwrite Not checked...
  • Page 100 Event Menu MENU SUBMENU MENU TITLE FACTORY DEFAULT VALUE Alarm Alarm-In Copy Settings CH: Checked, CH~CH6: Not checked Type Beep Alarm-Out  Not checked Alarm-Out  Not checked Duration Event Refresh Time Alarm-Out Start Hour 00, 00 End Hour 3, 59 Mode Event Alarm-Out  Not checked Alarm-Out  Not checked Motion Setup Copy Settings CH: Checked, CH~CH6: Not checked Type Beep Sensitivity Normal Mask Zone 74 deactivated cells Zone View...

  • Page 101: Appendix B - Remote Control

    Appendix B – Remote Control PTZ CONTROL PTZ On/Off Search Menu SEARCH SET SET PRESET CLEAR CLEAR PRESET Menu MENU GOTO GOTO PRESET <No functions> AUTO AUTO PAN <No functions> 1~9 Select Ch / Input number <No functions> Indicates  digits <No functions> „0” + „0” = „0” „0” + „” = „” FUNC <No functions> Press REC button and then press number button for Panic recording. <Audio Button> Not available of usage Press REC button twice to stop Panic recording. MODE Screen Division / Change Mode Playback location Move menu items / Change Value Backward Playback...
  • Page 104 SLD Security & Communications The Old Forge, Ockham Lane, Ockham, Surrey GU236PH England Phone +44.1483225633 · Fax +44.1483225634 sales@sld.co.uk · www.sld.co.uk...
