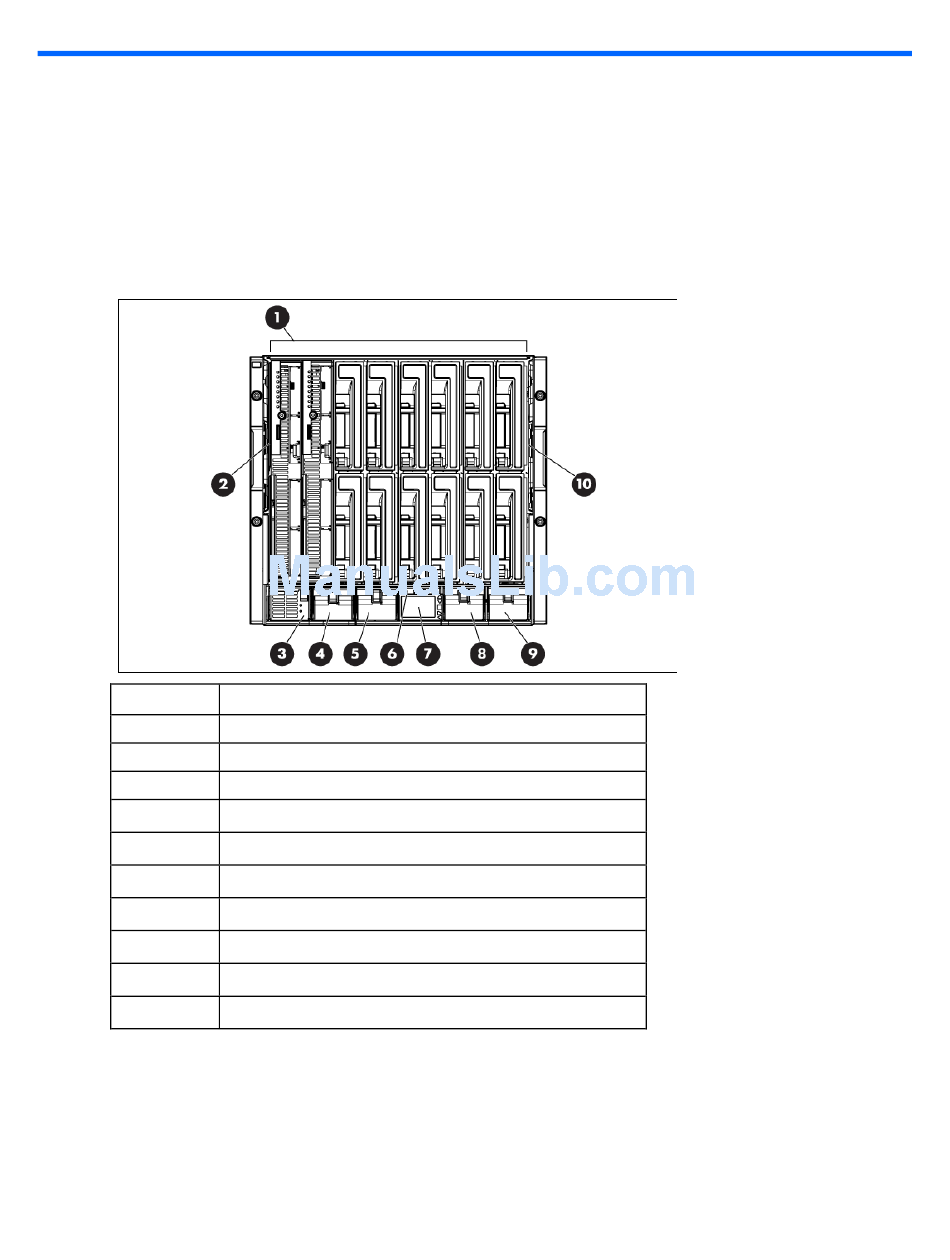

Component identification
HP BladeSystem c7000 Enclosure components
Enclosure front components
Item
1
2
3
4
5
6
7
8
9
10
*For more information, see "Device bay numbering."
Description
Device bays*
Air intake slot (Do not block.)
Power supply bay 1
Power supply bay 2
Power supply bay 3
Power supply bay 4
Insight Display
Power supply bay 5
Power supply bay 6
Air intake slot (Do not block.)
