4.2 Coupling Ring Application

Within the network there maybe more than one X-Ring group. By using the coupling ring

function more than one X-Ring can be connect for redundant backup. This can ensure

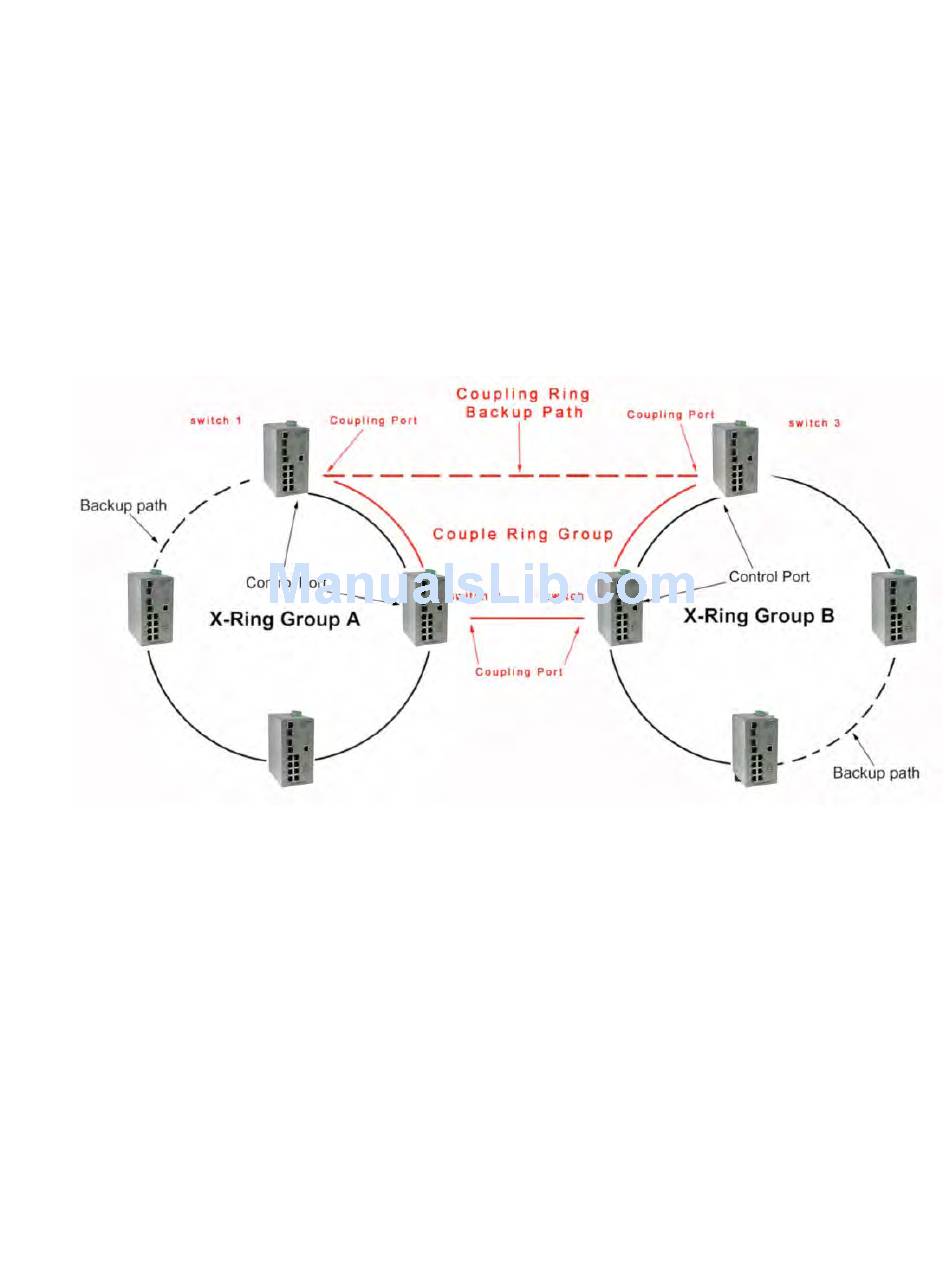

the transmission between the two ring groups will not fail. A sample of the coupling ring

application figure is shown below:
