3.4 Cabling

Use eight twisted-pair, Category 5 cables for the RJ-45 port connection. The cable
between the converter and the link partner (switch, hub, workstation, etc.) must be less
than 100 meters (328 ft.) long.

3.5 Wiring the Power Inputs

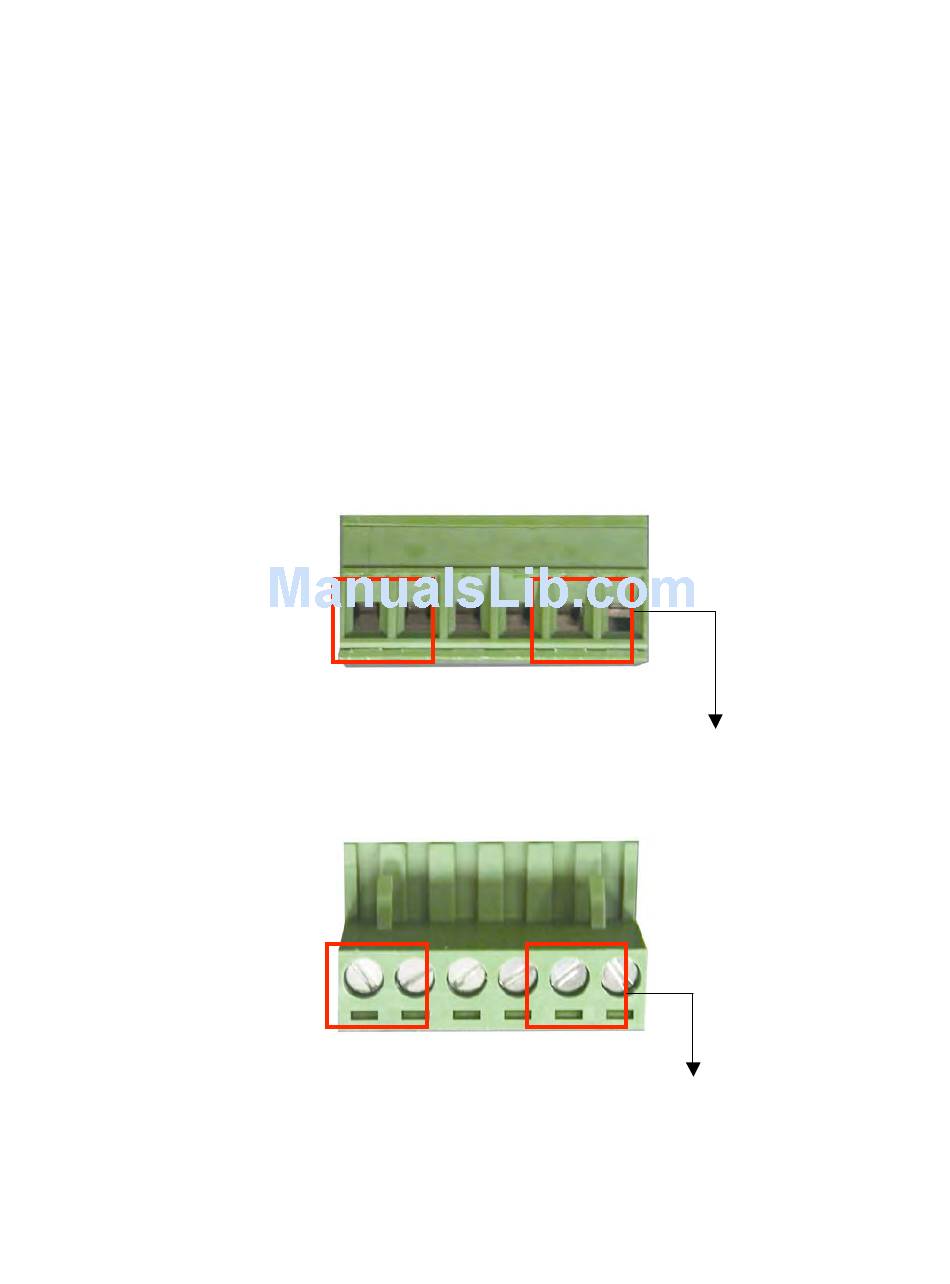

Please follow below steps to insert the power wire.
1. Insert the positive and negative wires into the V+ and V-
[NOTE] The wire gauge for the terminal block should be in the range of 12~ 24 AWG.
V- V+
connector on the terminal block connector.
2. To tighten the wire-clamp screws for preventing the DC
wires to loose.
V- V+
