3.6 Wiring the Fault Alarm Contact

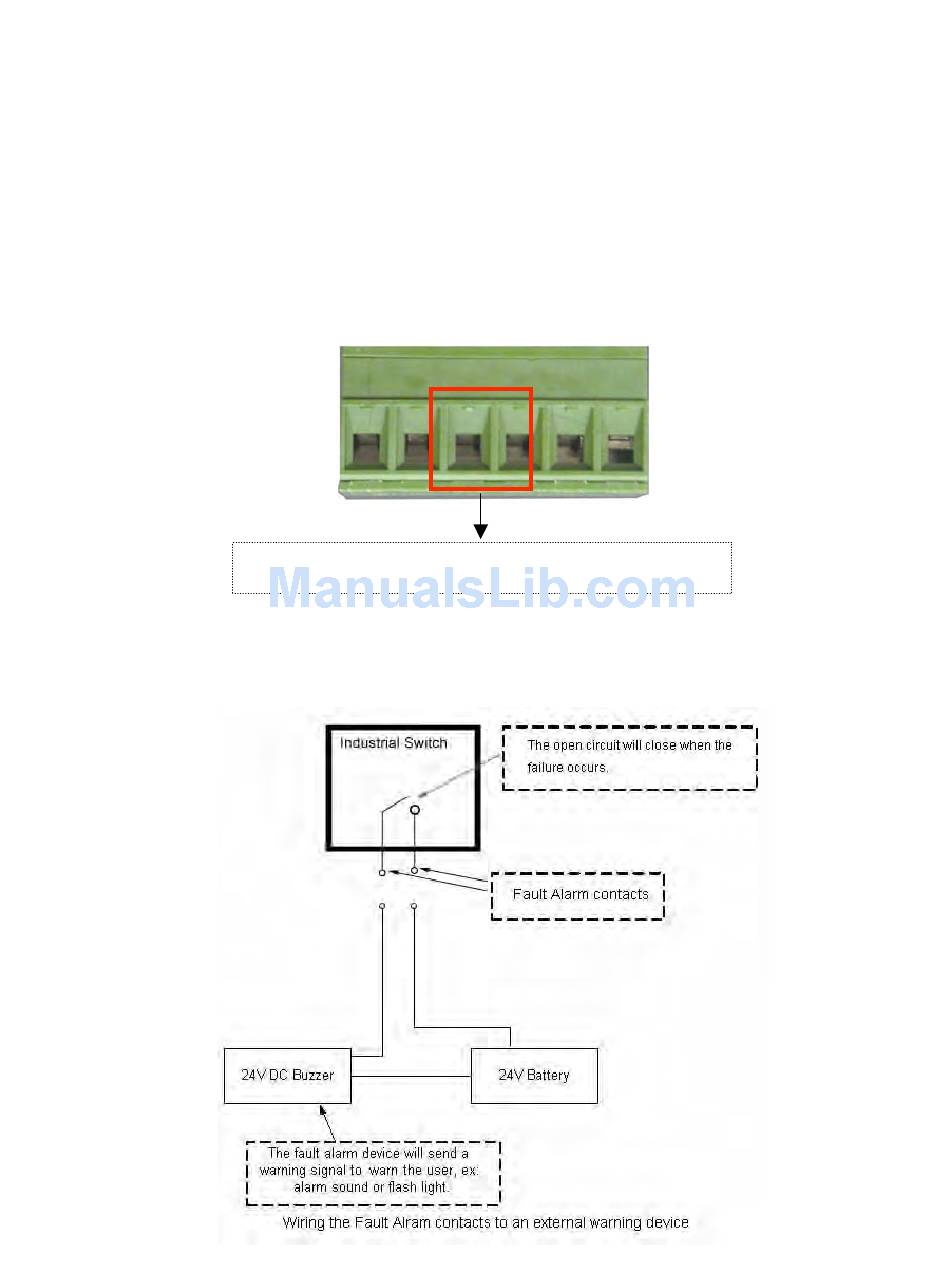

The fault-alarm contact is in the middle of the terminal-block connector as the figure

shows below. By inserting the wires and setting the DIP switches to "ON" status, it will

detect the fault status of power and port link failures.

The following figure shows an application example for the fault alarm contact.

1A@24V

Insert the wires into the fault alarm contact

[NOTE] The wire gauge for the terminal block should be in the range between 12~ 24

AWG.
