2.4 Installing Add-in Cards
The IPC-603MB can accept up to three half-sized PCI add-in cards via
the riser card, which is inserted in the sixth slot of the enclosed ATX
motherboard and mounted on the L-form riser card bracket. To install an
add-in card, face to the rear side of the chassis and proceed as follows:
1.
Find the riser-card slot(s) in which card(s) are to be inserted, then
remove the slot's blank bracket(s) from the front plate of the chas-
sis.
2.
Horizontally and evenly push the card leftwards until the gold fin-
gers are completely inserted into a PCI slot of the riser card. Make
sure that the card bracket has been inserted properly. Fasten the
card at the top of the bracket with a screw.
3.
Repeat the previous step if there is more than one card.
2.5 Installing Rackmount Brackets & Handles
The IPC-603MB provides a pair of rackmount brackets and handles in the
accessory pack. To install the rackmount brackets and handles onto the
IPC-603MB, refer to Figure 2-6.
rackmount bracket
handle

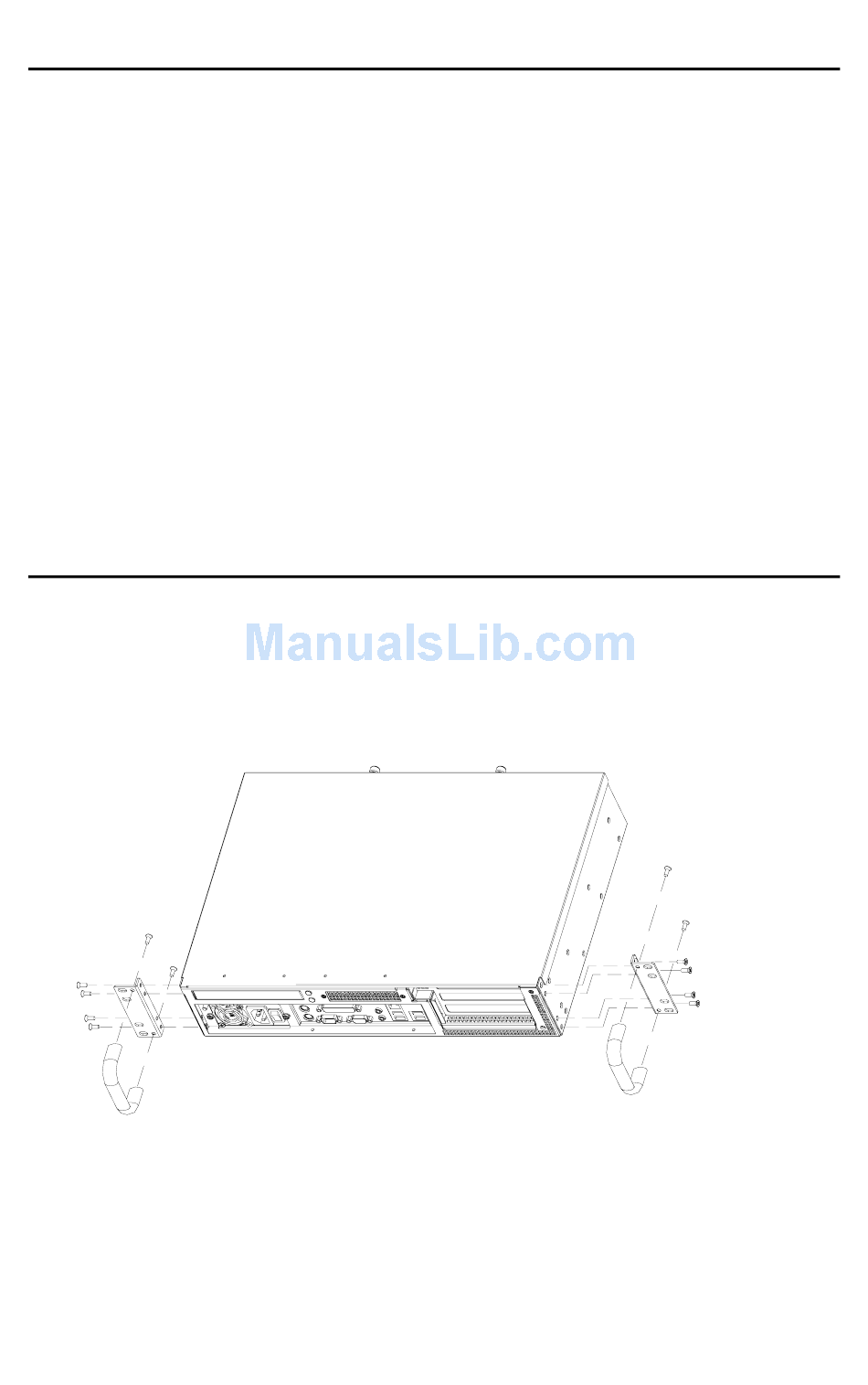

Figure 2-6 Install rackmount brackets and handles
11
rackmount bracket
handle
Chapter 2
