2.2 Installing CPU and Add-on Cards

The IPC-601-SCA supports one PICMG full sized CPU card and one PCI add on card. In order to
install the CPU card and add-on card, we suggest to take out the tray from the chassis and install the
cards in the tray ouside the chassis. Figure 2-2 illustrates the installation of the CPU and add-on cards.
Note: Please notice that the SDRAM modules used on the CPU card have height constraints.
The recommended height is no more than 31 mm. Please contact Advantech for
recommended vendors.

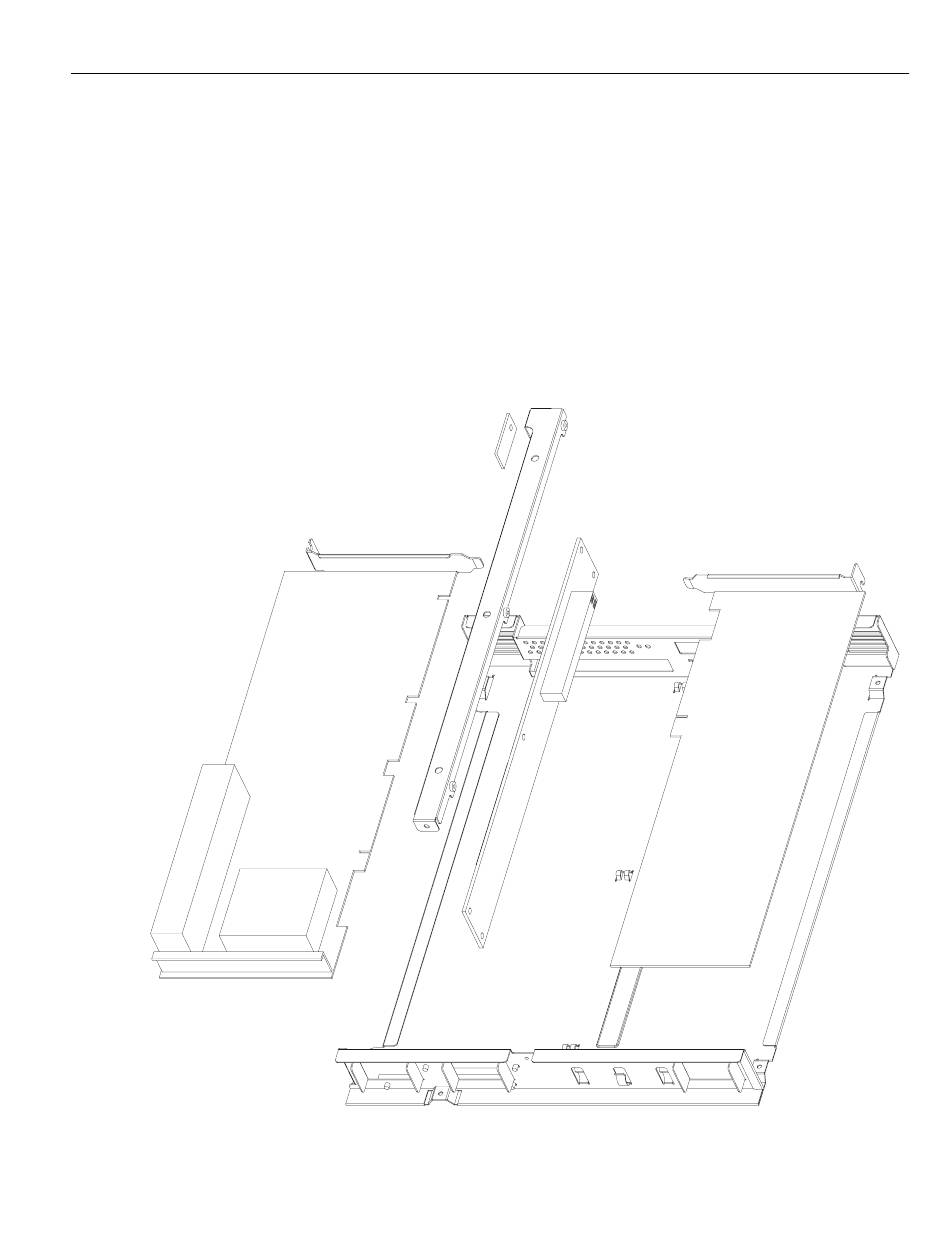

Figure 2-2: Installing plug-in cards
