3.4 Replacing the power supply

IPC-603MB supports a single 1U-high power supply. To change the
power supply, refer to Figure 3-3 and proceed as follows:
1. Unplug the power cord from the power supply of IPC-603MB.
2. Remove the top cover of IPC-603MB.
3. Unplug the ATX power connector and +12 V power connector
from the motherboard, and the peripheral power connector(s) from
the disk(s).
4. Refer to Figure 3-3 to remove the drive bay above the power sup-
ply.
5. Refer to Figure 3-3 to remove the six screws, which mount the
power supply to the chassis, then lift the power supply.
6. Place a new power supply into the chassis and fasten it with the
screws.
7. Return the drive bay to the chassis.

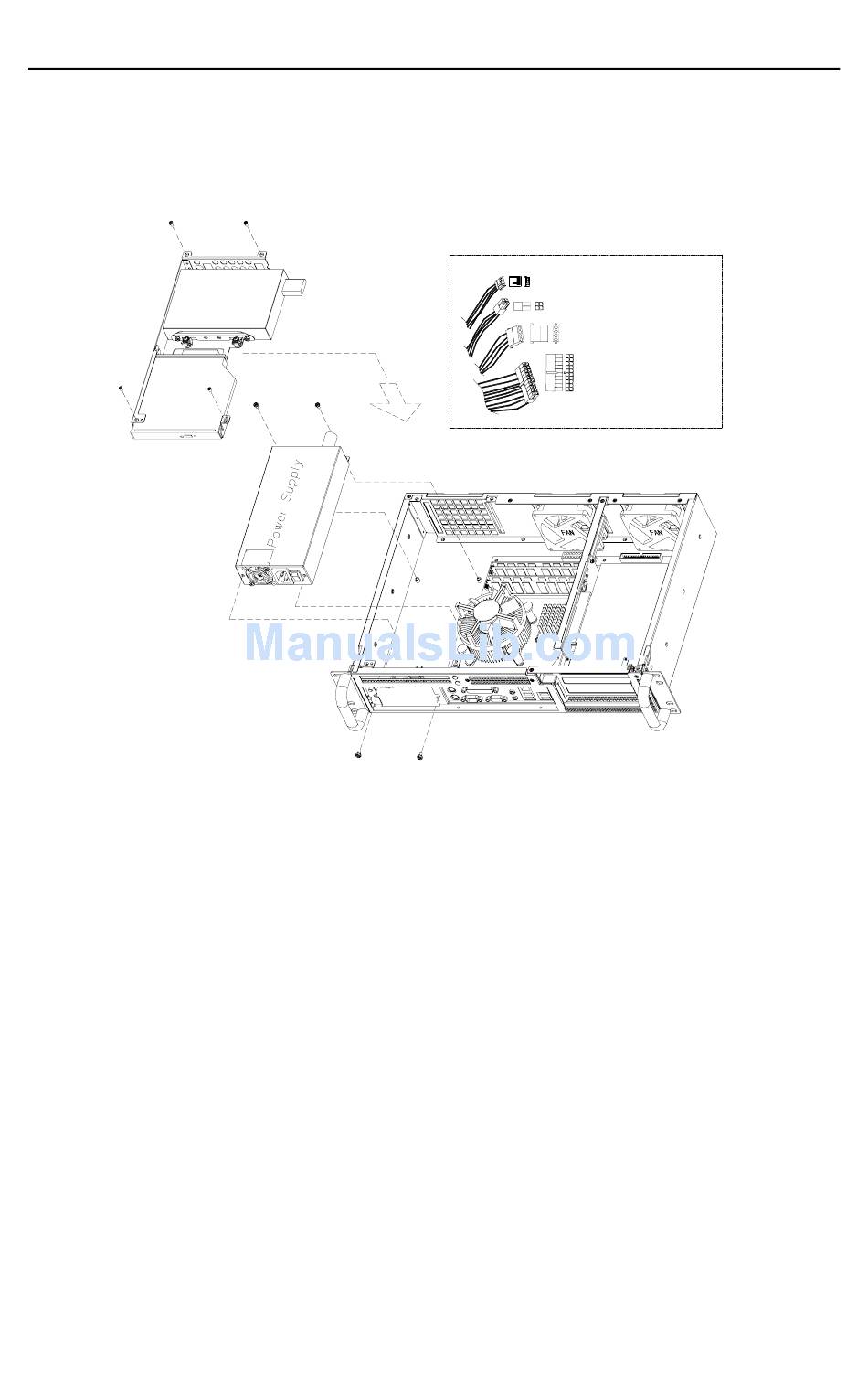

Figure 3-3 Changing the power supply
Floppy Drive Power Connector
+12V Power Connector
Peripheral Power Connector
ATX Power Connector
17 Chapter 3
