Summary of Contents for Advantech IPC-613

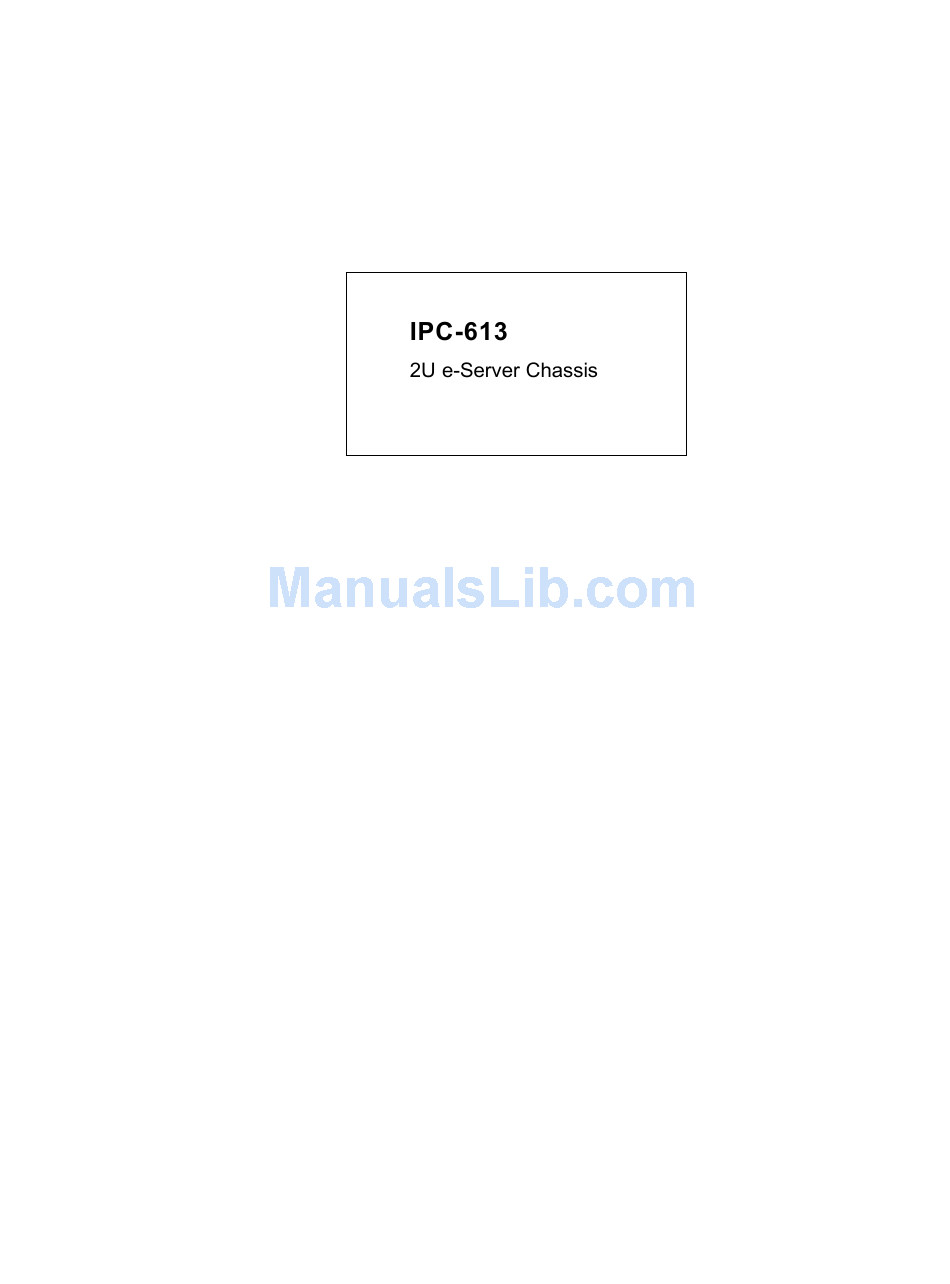

- Page 2 This document is copyrighted, June 2000, by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd.
- Page 5 The IPC-613 is a 2U high, rack-mount e-Server chassis for high-density internet services. Engineered for service providers and enterprises, the IPC-613's rack-mount 2U form factor is best for stacking servers as services grow. The IPC-613 is designed to accommodate ATX motherboards. With various configuration possibilities, the IPC-613 provides the flexibility and high performance at the same time.
- Page 6 IPC-613 User's Manual...
- Page 7 The following procedures are provided to assist you in installing drives and plug-in cards into the IPC-613. 1. Unscrew the screws at the rear side of the chassis. 2. Slide the upper cover backwards. 3. Lift up the upper cover to open the chassis. IPC-613 User's Manual...
- Page 8 The IPC-613 supports four hard disk drives, one CD-ROM drive and one floppy disk drive. There are two types of the IPC-613 available: IPC-613 and IPC-613-SCA. The IPC-613-SCA provides a SCA-2 backplanes and therefore support four hot-swap hard disk drives.
- Page 9 The IPC-613 support ATX motherboards. Please contact Advantech for recommended motherboard solutions. IPC-613 User's Manual...
- Page 10 One riser card is shipped with the IPC-613. This riser card can support two PCI expansion slots. Please refer to Figure 2-4 to install the riser card. IPC-613 User's Manual...
- Page 11 F) (default setting), the LED changes color from green to red. There will be audio alarm as well. The LED remains red until the temperature goes below Temperature also can be selected (SW1) on the alarm board inside the chassis: TEMP IPC-613 User's Manual...
- Page 12 IPC-613 User's Manual...
- Page 13 Two PCI expansion slots at 32-bit, 33 MHz Part Number: 9686613000 IPC-613 User's Manual...
- Page 14 IPC-613 User's Manual...
- Page 15 The sound pressure level at the operator's position according to IEC 704-1:1982 is equal to or less than 70 dB(A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
- Page 16 Temperaturen das Gerät zerstören könten. Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 Teil 1000 beträgt 70dB(A) oder weiger. DISCLAIMER: This set of instructions is provided according to IEC704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
