6. Connect the power connectors of the two system fans (on the rear
plate of IPC-603MB) to the motherboard.
7. Re-install the L-form riser card holder (together with the riser card)
and fasten it with screws.

2.3 Installing Disk Drives

The IPC-603MB accepts one slim type CD-ROM/-RW and one internal
SATA/ATA HDD. To install the disk drives, refer to Figures 2-4 and 2-5
and proceed as follows:

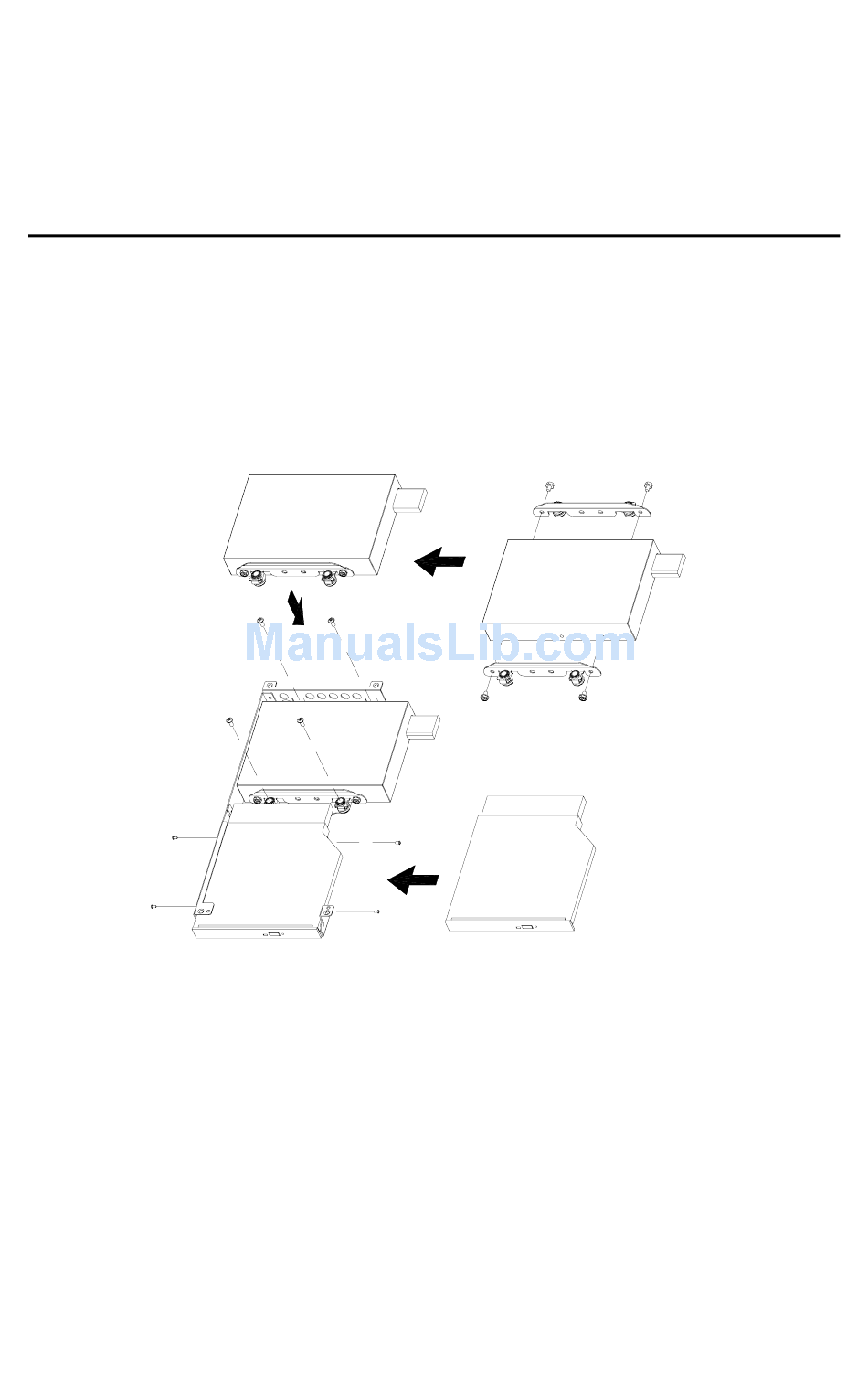

Figure 2-4 Install a slim CD-ROM and a HDD
H D D
S l i m
C D - R O M
9 Chapter 2
