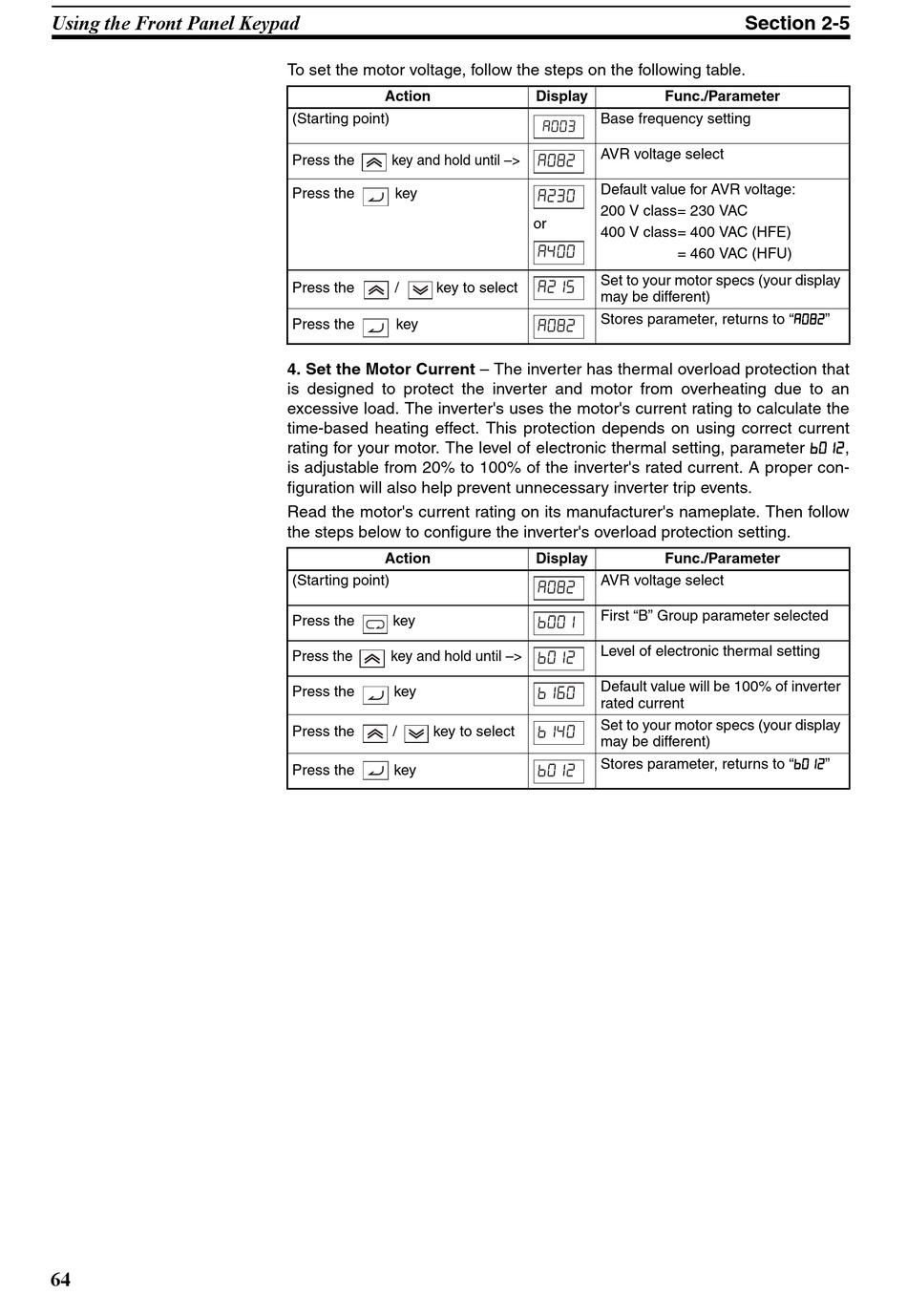

Using the Front Panel Keypad
64
To set the motor voltage, follow the steps on the following table.
Action
(Starting point)
Press the key and hold until –>
Press the key
Press the / key to select
Press the key
4. Set the Motor Current – The inverter has thermal overload protection that
is designed to protect the inverter and motor from overheating due to an
excessive load. The inverter's uses the motor's current rating to calculate the
time-based heating effect. This protection depends on using correct current
rating for your motor. The level of electronic thermal setting, parameter ,
is adjustable from 20% to 100% of the inverter's rated current. A proper con-
figuration will also help prevent unnecessary inverter trip events.
Read the motor's current rating on its manufacturer's nameplate. Then follow
the steps below to configure the inverter's overload protection setting.
Action
(Starting point)
Press the key
Press the key and hold until –>
Press the key
Press the / key to select
Press the key
Display Func./Parameter
Base frequency setting
A003
AVR voltage select
A082
Default value for AVR voltage:
A230
200 V class= 230 VAC
or
400 V class= 400 VAC (HFE)
A400
= 460 VAC (HFU)
Set to your motor specs (your display
A215
may be different)
Stores parameter, returns to ""
A082
Display Func./Parameter
AVR voltage select
A082
First "B" Group parameter selected
b001
Level of electronic thermal setting
b012
Default value will be 100% of inverter
b160
rated current
Set to your motor specs (your display
b140
may be different)
Stores parameter, returns to ""
b012
Section 2-5
