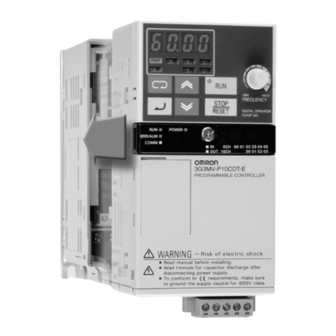

3G3MV-P10CDT@-E
V7 inverter PLC
The OMRON PLC technology embedded in
the most popular inverter: the V7
• OMRON PLC programmability for the 3G3MV
inverter
• Stand-alone applications.
• Flexibility and intelligence into the 3G3MV.
• Wireless installation and seamless access to the
inverter parameters and analogue/digital inputs and
outputs.
• Standard OMRON tools can be used for program-
ming and commissioning.
• Ideal for applications like: door control, pump
sequencing, Intelligent conveyor, Vertical axis
control, Industrial washing machines and general
positioning.
System configuration
Varispeed V7 + PLC
V7 inverter PLC
RS-422
CX-One
(CX-Drive)
(CX-Programmer)
HMI Interface
RS-232C and
Peripheral
377

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3G3MV and is the answer not in the manual?

Questions and answers

Related Manuals for Omron 3G3MV

Summary of Contents for Omron 3G3MV

  • Page 1 • Wireless installation and seamless access to the inverter parameters and analogue/digital inputs and outputs. • Standard OMRON tools can be used for program- ming and commissioning. • Ideal for applications like: door control, pump sequencing, Intelligent conveyor, Vertical axis control, Industrial washing machines and general positioning.

  • Page 2: Type Designation

    256 bits: TC 000 to TC 255 DM area Read/write 2029 words (DM 0000 to DM 0999, DM 1019 to DM 2047) DM 2000 to DM 2021: error log storage area Read only 456 words (DM6144 to 6599) Allocated to inverter...

  • Page 3: Input Specifications

    Analog volume None Input time constant Determines the input time constant for all inputs. (Settings: 1, 2, 3, 5, 10, 20, 40, or 80 ms) (ON response time = OFF response time) Clock/calendar function Yes. Shows the current year, month, day of the week, day of the month, hour, minute, and second.

  • Page 4: High Speed Counter Inputs

    Note: The input time constant can be set to 1, 2, 3, 5, 10, 20, 40, or 80 ms in the PLC setup. High speed counter inputs The following unit input bits can be used as high-speed counter inputs. The maximum count frequency is 5 kHz in differential phase mode and 20 kHz in the other modes.

  • Page 5: Output Specification

    250 VAC: 2 A 24 VDC: 2 A Note: The service life of relay output contacts shown in the table assumes the worst conditions. The following graph shows the results of OMRON's service life tests at a switching rate of 1,800 times/hour.

  • Page 6: Cpu Unit Component Descriptions

    The input indicators are lit when the corresponding input terminal is ON. Note: 1. A CQM1H-PRO01-E programming console can be connect- The status of an input indicator will reflect the status of the input even ed directly to the PLC.
  • Page 7 12. FE-connection Note: The maximum line length is 500 m. AMP tab to connect functional earth. Internally connected to pin 3 of the Note: The peripheral port and RS-422/485 port cannot be used simul- RS-422/485 connector and to the shell of the peripheral connector.

  • Page 8: Applications Examples

    Applications examples V7 + PLC in positioning application point-to-point applications are posible adding the PLC to the V7, including the possibility to add position and speed tables or even use recipes that could be select using a HMI Home Operation description...

  • Page 9: Ordering Information

    Inputs Outputs RS422 port 3G3MV-P10CDT-E 3G3MV-P10CDT3-E A Varispeed Specifications Model Sensorless vector control inverter Varispeed V7 Note: For detailed information, please refer to Varispeed V7 series section. Cables Specifications Model Computer connecting cable CS1W-CN226 Programmable console cable CS1W-CN224 Software Specifications...
  • Page 10 ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. In the interest of product improvement, specifications are subject to change without notice. Cat. No. I24E-EN-02 3G3MV-P10CDT@-E...
