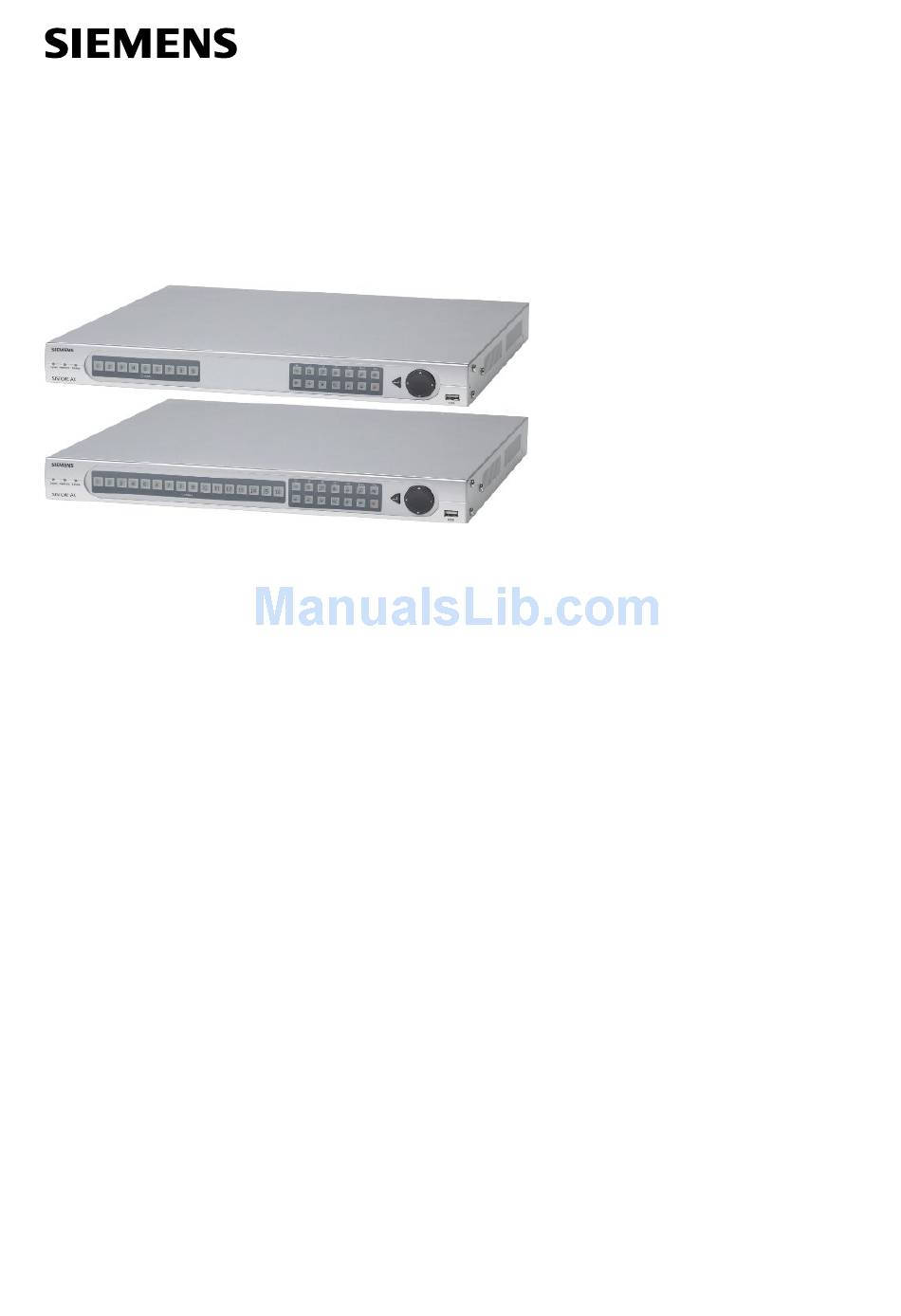

  • Page 1 CCTV SISTORE AX9/AX16 (V2.5) User’s Manual Fire & Security Products Siemens Building Technologies...
  • Page 2 Data and design subject to change without notice. / Supply subject to availability. © 2004 Copyright by Siemens Building Technologies AG Wir behalten uns alle Rechte an diesem Dokument und an dem in ihm dargestellten Gegenstand vor. Der Empfänger anerkennt diese Rechte und wird dieses Dokument nicht ohne unsere vorgängige schriftliche Ermächtigung ganz oder teilweise Dritten zugänglich machen...

  • Page 3: Table Of Contents

    PLAY/PAUSE Button ................23 3.1.16 Next Button .....................23 3.1.17 FF (Fast Forward) Button................23 3.1.18 REC (Record) Button ................23 3.1.19 Enter Button ....................24 3.1.20 Up, Down, Left, Right Arrow Buttons ............24 Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...
  • Page 4 Clip Copy....................66 3.12.3 Load Default Setup .................68 3.12.4 Clear All Data ..................68 Operation ....................69 Turning on the Power................69 Live Monitoring..................69 4.2.1 Active Cameo Mode................70 4.2.2 PIP Mode....................70 4.2.3 PTZ Mode....................70 Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 06.2004...
  • Page 5 Alarm I/O Connector and RS485 Connector Pin Outs......83 Appendix E — Connection Diagram ...........84 Sample I. Connecting the Dome Camera and SISTORE AX9/AX16 ..84 Sample II. Connecting the External Modem and SISTORE AX RAS ..84 Sample III. Connecting the SISTORE AX and SCU .......85 Appendix F —...

  • Page 7: Preface

    Equipment Regulations. The information in this manual is believed to be accurate as of the date of publication. Siemens is not responsible for any problems resulting from the use thereof. The information contained herein is subject to change without notice.

  • Page 8: Important Safeguards

    Never push objects of any kind through openings of this equipment as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the equipment. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...
  • Page 9 Mechanical Loading Mounting of the equipment in the rack should be such that a hazardous condition is not caused by uneven mechanical loading. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...
  • Page 10 (e.g., use of power strips). Cable lengths For reasons of EMC the cable used for RS232, audio In / Out, SCSI connections and power supply must be not any longer than 3 meters. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 11: Introduction

    Audio Recording and Playback Alarm Connections Include: Input, Output and Reset Input Built-in Alarm Buzzer Live or Recorded Video Access via Ethernet or External Modem Fig. 1 Typical DVR installation. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 12: Technical Overview

    The DVRs are identical except for the number of cameras and alarms that can be connected and the number of cameras that can be displayed. For simplicity, the illustrations and descriptions in this manual refer to the 16- camera model. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 13: Installation

    If you set the switch from PAL (NTSC) to NTSC (PAL), please do the Factory CAUTION Reset and Clear All Data. If not, it causes the DVR to perform wrong operations. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 14: Connecting The Video Source

    If your monitor has an SVHS input, use it for better quality video display. NOTE: The Video Out (BNC) and the SVHS Out connectors may be connected to individual monitors for simultaneous operation. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 15: Connecting Audio

    (supplied with the unit), and then connect the board to the Alarm I/O port. CAUTION Do not attempt to wire directly to the DB-25 male connector. NOTE: The Alarm I/O Board consists of alarm connector strips and RS485 connector. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 16: Ai 1 To 16 (Alarm In)

    AI (Alarm In) and GND (Ground) connectors. The threshold voltage is 4.3 V and should be stable at least 0.5 seconds to be detected. Connect the wires to the ARI (Alarm Reset In) and GND (Ground) connectors. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 17: Connecting To The Rs485

    NOTE: The DVR is not supplied with a modem cable, and many modems are not supplied with cables. Make certain you have the correct cable when purchasing the modem. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 18: Connecting To The Ultrawide Scsi Port

    Cat5 cable with an RJ-45 jack to the DVR connector. The DVR can be networked for remote monitoring, searching, configuration and software upgrades. See Chapter 3 — Configuration for configuring the Ethernet connections. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 19: Connecting To The Usb Port

    When the DVR successfully resets to factory defaults all the LEDs on the front panel flash three times. Release the reset switch. All of the DVR’s settings are now at the original settings it had when it left the factory. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 20: Connecting The Power Cord

    DO NOT OVERLOAD THE CIRCUIT BY PLUGGING TOO MANY DEVICES IN TO ONE CIRCUIT. Your DVR is now ready to operate. Refer to Chapter 3 - Configuration and Chapter 4 - Operation. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 21: Configuration

    The Backup LED is lit when data is being backed up using the USB port. 3.1.4 Camera Buttons (1 to 16) Pressing the individual camera buttons will cause the selected camera to display full screen. They are also used to enter passwords. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 22: Sequence Button

    Pressing the MENU button displays the Search menu while in the Playback mode. Pressing the button again closes the Search menu. Loads a Preset View in PTZ mode. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 23: Rw (Rewind) Button

    A red dot appears on the screen when the DVR is recording video. Press the button again to stop recording video. This operation can be user password protected. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 24: Enter Button

    The setup screens can also be accessed by entering the User password if the User password is turned on. However, only access to the Clip Copy and Password setup screens is permitted. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 25: Quick Setup Screen

    Selecting System Shutdown… shuts the DVR down. When shutting down the DVR, you need to confirm that you want to shut down the unit, and you will be asked for an administrator password. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 26: Normal Setup Screen

    In the System Information screen, you can name the site location, assign a unit ID number, select the language for the screen display and upgrade the software. Highlight Change and press the button. The System Information Change screen appears. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...
  • Page 27 Highlight the desired language and press the button. Fig. 23 Language dropdown menu. Highlight the box beside Site Description and press the button. A virtual keyboard displays. Fig. 24 Virtual keyboard. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...
  • Page 28 Select Start and enter the Admin password to start the upgrade. The system restarts automatically after completing the upgrade. NOTE: Only the system administrator can upgrade the software. NOTE: You cannot upgrade software during clip copy. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 29: Date/Time Setup

    X beside the date and pressing the button. NOTE: Holidays that do not fall on the same date each year should be updated once the current year’s holiday has passed. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...
  • Page 30 Highlighting the Update button and pressing the button updates the server clock. NOTE: – The Server Clock will display “ ” when the DVR cannot load the time information from the time server. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...
  • Page 31 The DVR toggles between 12 Hours (AM/PM) and 24 Hours (military time). You can save your changes by highlighting OK and pressing the button . Selecting Cancel exits the screen without saving the changes. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 32: System Check Screen

    The Status field displays the fault conditions. When it is Good, there was recording or an alarm occurred during the designated time. When it is Bad, there was no recording or no alarm occurred during the designated time. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 33: Storage Screen

    When the device is an IDE hard disk drive, you can change its usage to either Rec. On or Rec. Off. When the device is a SCSI hard disk drive, you can change its usage to either Extension or Archive.. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...
  • Page 34 Highlight the box beside Sensor Unit and select from Celsius or Fahrenheit. You can save your changes by highlighting OK and pressing the button. Selecting Cancel exits the screen without saving the changes. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 35: System Log Screen

    This shuts the DVR down. When shutting down the DVR, you need to confirm that you want shut down the unit, and you will be asked for an administrator password. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 36: Configuring Input Devices

    When set to Covert 1, the DVR displays the camera title and status icons on the covert video. When set to Covert 2, the DVR displays only the camera title on the covert video. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 37: Alarm In Setup Screen

    You can turn each input On or Off. Each input can be given a title, and the inputs can be set as NO (normally open) or NC (normally closed) independently. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 38: Motion Detector

    You can define the area of the image where you want to detect motion; e.g., a doorway. Highlight the icon under the Zone heading, and press the button. The Motion Detection Zone screen will display. Fig. 38 Motion Detection Zone screen. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...
  • Page 39 Clear All Blocks — Deactivates all blocks so that they will not detect motion. Reverse All Blocks — Activates inactive blocks and deactivates active blocks. Exit Zone Setup — Asks you to confirm changes and then returns to the previous screen. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 40: Alarm Out Setup Screen

    When set to On, the Alarm Out is active during the scheduled time. When set to Event, the Alarm Out is only active when there is an Event during the scheduled time. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 41: Audio Setup Screen

    Selecting Cancel exits the screen without saving the changes. NOTE: If you set up the recording speed less than 1 ips, the DVR will NOT guarantee the standard quality audio playback. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 42: Rs232/Rs485 Setup Screen

    If networking is configured by the external modem, the RS232 port cannot be set up for the remote control. In the Network Setup menu, set up the DVR for LAN connections first. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 43: Configuring Recording Settings

    Full: Beep and press the button to toggle between On and Off. Highlight the box beside On Disk Full: Alarm Out and press the button to toggle between On and Off. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 44: Time-Lapse Record Mode Setup Screen

    PAL (to 60 images per second NTSC). NOTE: If you have set the Record Resolution for High, you will not be able to select 50 ips PAL (60 ips NTSC). Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 45: Time-Lapse Recording Schedule

    You can change the entire calendar by placing the cursor in the upper left-hand box (above “S” and to the left of the time line) and pressing the button to toggle the entire calendar On and Off. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 46: Pre-Event Recording Setup Screen

    You can set the Dwell from 1 to 300 seconds. NOTE: When the DVR is in the Time-Lapse mode, it ignores the pre-event settings and follows the time-lapse settings. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 47: Event Action Setup

    Highlight the Quality box and select the image quality you want to record from the drop-down menu. Highlight the Dwell box and set the length of time you would like to record for the associated event. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 48: Alarm In Event Action (Alarm Out) Setup Screen

    Highlight the Dwell box and set the length of time you want the output activated. NOTE: When setting the Dwell to “0 sec”, the alarm output will be activated throughout the sensor activation period, and inactive while the sensor is inactive. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 49: Alarm In Event Action (Notify) Setup Screen

    The DVR can be set to react to motion detector differently. Each camera can be assigned a schedule, associated camera, recording speed, video quality and dwell time. Fig. 51 Motion Detector Event Action (Record) setup screen. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 50: Motion Detector Event Action (Alarm Out) Setup Screen

    Highlight the Dwell box and set the length of time you want the output activated. NOTE: When setting the Dwell to “0 sec”, the alarm output will be activated throughout the sensor activation period, and inactive while the sensor is inactive. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 51: Motion Detector Event Action (Notify) Setup Screen

    The DVR can be set to react to video loss from a camera differently. Each camera can be assigned a schedule, associated camera, recording speed, video quality and dwell time. Fig. 54 Video Loss Event Action (Record) setup screen. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 52: Video Loss Event Action (Alarm Out) Setup Screen

    Set the schedule as described earlier. Highlight the Alarm-Out box and select either Beep or the alarm output terminal that you want to associate with the camera that has lost video. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 53: Video Loss Event Action (Notify) Setup Screen

    This toggles between On and Off. When it is On, the DVR notifies the remote site when it loses video input from a camera based on a defined schedule. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 54: Display Setup

    The margins can be set from 1 to 24. Highlight the box beside Top/Bottom Margin and press the button to adjust the top and bottom margins. The margins can be set from 1 to 24. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 55: Main Monitoring Setup Screen

    Highlight the box beside Event Monitoring Dwell Time and press the button. Select the event monitoring dwell time from 3 to 60 seconds. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 56: Spot Monitoring Setup Screen

    Highlight the box beside Event Monitoring Dwell Time and press the button. You can adjust the event monitoring dwell time from 3 to 60 seconds. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 57: Network Setup Screen

    1 to 10 ips for PAL (1 to 15 ips for NTSC). NOTE: The transfer speed you set is the maximum speed. Depending on the network environment, this speed may not be achieved. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 58: Lan Setup Screen

    You will need to get the appropriate IP Address, Gateway, Subnet Mask and IP Port Number for each RAS-related program (Admin, Watch, Search and Callback) from your network administrator. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 59: Modem Setup

    If the RS232 port is in use for the remote control, the networking cannot be configured by the modem. In the RS232/485 Setup menu, set up the RS232 port to communicate with the external modem first. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 60: Callback Center (Lan) Setup Screen

    Use the virtual keyboard to enter the e-mail address. Highlight the box beside E-mail sender and enter the sender’s e-mail address. NOTE: The e-mail address must include the character “@” to be a valid address. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 61: Callback Center (Modem) Setup Screen

    DVR to call a remote site to give notice of an event. You can save your changes by highlighting OK and pressing the button . Selecting Cancel exits the screen without saving the changes. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 62: Password Setup Screen

    Write down the new password and save it in a secure place. If the password is CAUTION forgotten, the unit must be reset using the Factory Reset Button and all data settings will be lost. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 63: Config Screen

    The Config menu is used to perform functions such as switching between Quick Setup and System Setup, archiving video, copying video clips, loading default setup and clearing all data. Fig. 66 Config screen. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 64: Archive

    Highlight the box beside Working From / Working To and press the button to set up the time span of the automatic archive. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...
  • Page 65 If you have a large quantity of recorded video to archive, either stop recording or reset the recording speed. The oldest data to be archived might be overwritten if the hard disk is full. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 66: Clip Copy

    When more than two USB hard disk drives are installed on the DVR, the following USB Device Selection screen appears. Select the drive to use for clip copy and press the button. Selecting Return to Clip Copy Menu and pressing the Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...
  • Page 67 You can not end the clip copy process during CD burning. Refer to Appendix – Reviewing Video Clips for instructions on how to review the images you have copied. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 68: Load Default Setup

    Highlighting and selecting Clear All Data will bring up screen asking you if you really want to clear all data and confirm it with a password. CAUTION Selecting Clear All Data will erase all recorded video. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 69: Operation

    Right arrow button while in 4x4 format, the DVR changes the page as follows: Pressing the Freeze button will freeze the current image on the screen until you press the button again. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 70: Active Cameo Mode

    Press the Display button to zoom in, and press the Sequence button to zoom out. You can use the Freeze and Alarm buttons to focus the image. Fig. 73 PTZ Preset screen. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 71: Recording Video

    If the DVR was set up to record audio, it will record audio when video is recording. NOTE: Make certain you comply with all local and federal laws and regulations when recording audio. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 72: Playing Recorded Video

    Pressing the Stop button during Playback mode returns the DVR to the Live Monitoring mode. 4.5.6 Next Button The Next button only functions when playback video has been paused. Pressing the Next button plays video forward image-by-image. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 73: Ff (Fast Forward) Button

    You can select the data source to be searched from local storage (Search On Local) or archive storage (Search On Archive). To select the data source, highlight the data source to be searched and press the button. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 74: Date/Time Search

    You can use Up and Down arrow buttons to highlight the time bar. Once the time bar is highlighted, you can select the time by using the Left and Right arrow buttons. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 75: Event Search

    Pressing Stop returns to live monitoring. Pressing Search returns to the Event Log. You can also narrow your event search by selecting the Query… button and setting up the new search condition. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...
  • Page 76 Once you set your desired search conditions, highlight Search and press the button to display the search results in the Event Log screen. Selecting Cancel exits the screen without saving the changes. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...
  • Page 77 Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 78: Appendix A - Usb-Ide Hard Disk Drive Preparation

    The partition size should be less than 32 GB because of Microsoft limitations. After formatting is complete, the USB-IDE hard disk drive will be added to My Computer. Connect the USB-IDE hard disk drive to the DVR. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 79: Preparing The Usb-Ide Hard Disk Drive In Windows 98

    12. Right click the newly created hard disk drive icon and select “Format”. 13. In the Format Screen, select “Full” as the “Format type” and click “Start”. 14. After formatting is complete, connect the USB-IDE hard disk drive to the DVR. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 80: Appendix B - Reviewing Video Clips

    Normal means the file has not been tampered with, Wrong means the system has detected tampering, and no mark means the user cancelled the encryption check. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...
  • Page 81 The Brightness Revert Button reloads to the original image. Clicking the Mute button mutes the recorded audio. Clicking the OSD (On-Screen Display) Button switches the OSD option. The OSD information includes camera location and date/time. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 82: Appendix C - Troubleshooting

    DVR. time and date. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 83: Appendix D - Connector Pin Outs

    Alarm Input 10 Alarm Input 9 Ground Alarm Input 8 Alarm Input 7 Alarm Input 6 Alarm Input 5 Alarm Input 4 Alarm Input 3 Alarm Input 2 Alarm Input 1 Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 84: Appendix E - Connection Diagram

    Callback to RAS and callback to the pager cannot be used at the same time. The following modem is recommended: Manufacturer: Devolo, Modem: Microlink ISDN i, Distributor: www.alternate.de. The modem works with 1 channel (64 Kbit). Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 85: Sample Iii. Connecting The Sistore Ax And Scu

    Parity: Even Data: 8 Stop: 1 Usage: PTZ Control In the „Camera“ menu: Camera setting: PTZ Device: Siemens SCU ID: 1 Configuration of the Roline RS232<->RS485 Converter: T-RTS Rx ON DTE (or DCE; must not be identical with the other converter) Configuration of the RS232<->Current Loop Converter:...

  • Page 86: Appendix F - Recording Table

    The SISTORE AX has a maximum recording speed of 50 images for PAL (60 images for NTSC) per second (ips) that will be applied globally depending on the number of cameras recorded. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 87: Appendix G - Screens Map

    Appendix G — Screens Map Appendix G — Screens Map Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 88: Appendix H - Specifications

    Alarms / RS485 DB-25 male connector (with alarm I/O board) Ethernet Port RJ-45 RS232 Serial Port DB-9 male connector SCSI Port High-density UltraWide SCSI connector (68-pin) USB Port USB connector Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...
  • Page 89 70 Watts Max. APPROVALS FCC PART 15 Subpart B, Class A EMI: EN55022, 1998, Class A Safety: EN60950 Immunity: EN50130-4, 1998, Alarm Standard Specifications are subject to change without notice. Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...

  • Page 90: Keyword Index

    Duplex LED, 21 Power cord connector, 20 Pre-Event Recording Setup Screen, 47 PREV (Previous) Button, 23, 73 Enter Button, 24 PTZ Button, 22 Event Action Setup, 48 PTZ Mode, 71 Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...
  • Page 91 Video Loss Event Action (Notify) Setup Screen, 54, Sequence Button, 22 Sequence Display Setup Screen, 56 Video Loss Event Action (Record) Setup Screen, Setting Unit for PAL or NTSC, 13 Siemens Building Technologies SISTORE AX9 AX16_EN.doc Fire & Security Products 09.2004...
  • Page 92 © 2004 Copyright by Issued by SGS Siemens Building Technologies AG Fire & Security Products Data and design subject to change without notice. D-76187 Karlsruhe Supply subject to availability. Printed in the Federal Republic of Germany www.sbt.siemens.com/FSP on environment-friendly chlorine-free paper.
