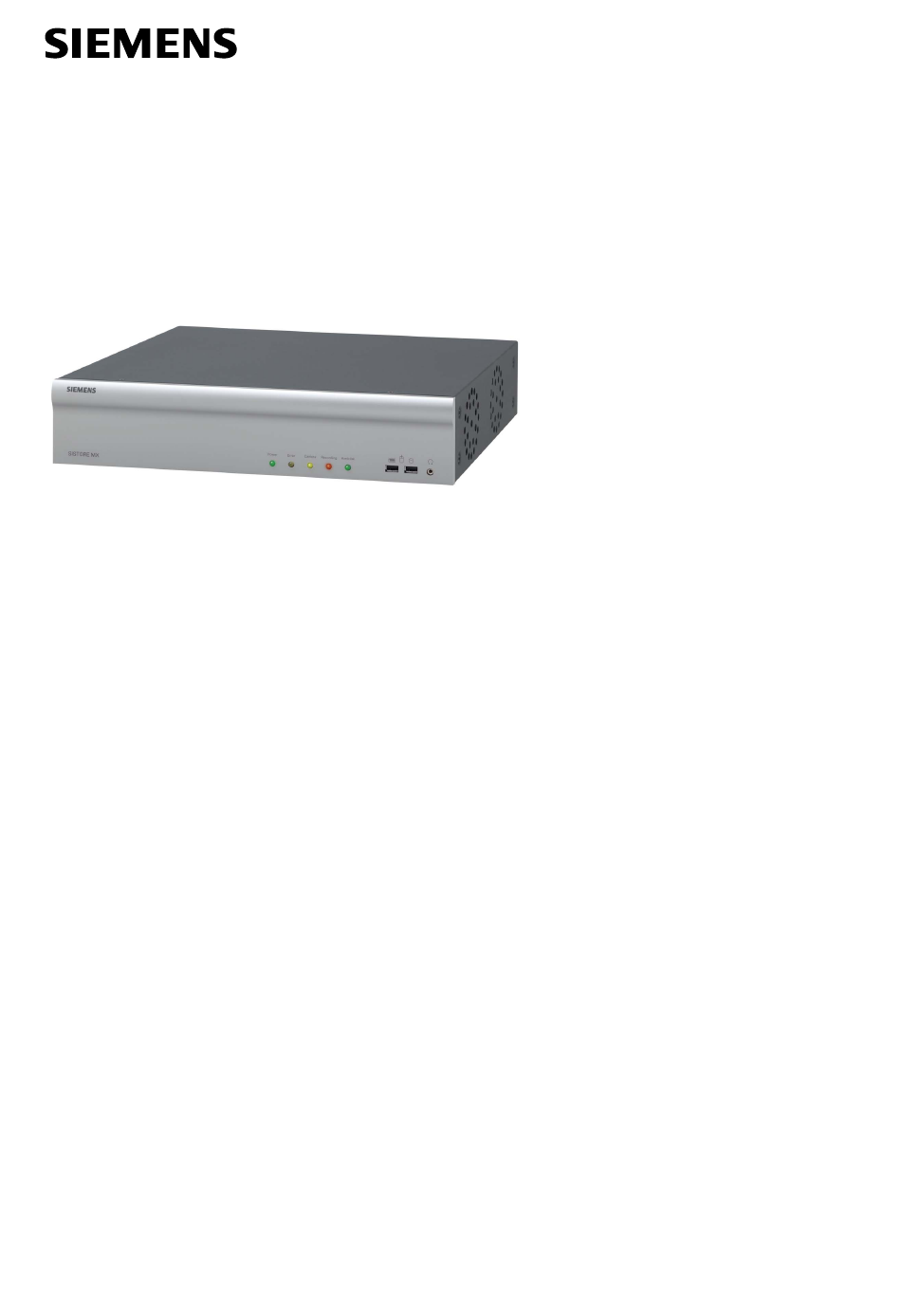

  • Page 1 Digital video recorder SISTORE MX Installation manual Software version V2.55 and greater Fire Safety & Security Products Siemens Building Technologies...
  • Page 2 Data and design subject to change without notice. / Supply subject to availability. © 2005 Copyright by Siemens Building Technologies AG We reserve all rights in this document and in the subject thereof. By acceptance of the document the recipient acknowledges these rights and undertakes not to publish the document nor the subject thereof in full or in part, nor to make them available to any third party without our prior express written authorization, nor to use it for any purpose other than for which it was delivered to him.

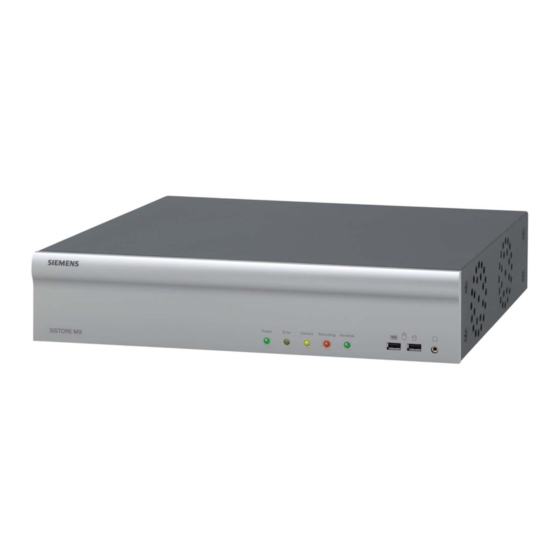

  • Page 3 Thank you for your decision to purchase SISTORE MX. SISTORE MX is a digital video recording system (DVR) for the surveillance of rooms, premises, buildings, production workshops, critical public areas or any outdoor areas where security is important. Recording is possible with up to 32 cameras at the same time. A simul- taneous display of all cameras for live surveillance is possible at the same time as recording.
  • Page 4 RemoteView, you have the opportunity to remote access (via LAN or ISDN) the system in order to revise the recorded videos and to watch camera pictures live. Here SISTORE MX RemoteView functions as a client accessing SISTORE MX as a server.

  • Page 5: Table Of Contents

    Work safety information...............52 Compliance notice of FCC ..............57 SISTORE MX specifications..............58 Video compression .................59 Opto-coupler ...................59 Details for ordering and product models of SISTORE MX ....60 Scope of delivery..................61 Getting started with the SISTORE MX ..........62 Rack installation ..................62 Tabletop operation ..................64 DIP switch settings..................64...

  • Page 6: About This Document

    Contacting us If you have questions or suggestions regarding the product or this documentation, please contact your local SIEMENS representative. You can also visit our Web site http://www.sbt.siemens.com Siemens Building Technologies Fire Safety & Security Products...
  • Page 7 Training courses Siemens Fire Safety & Security Products provides training courses for all products. Working and operational safety The hazards and safety guidelines relevant to the use of the products are de- scribed in the next chapter. Read the appropriate operating instructions before per- forming a task.

  • Page 8: Work Safety Information

    Any national or local safety standards or laws that apply to the development, design, installation, operation or disposal of a product must be adhered to in addition to the instructions in the product documentation. Siemens Building Technologies Fire Safety & Security Products 07.2005...
  • Page 9 Changes to the product Changes to the product and the way it is installed require written permission from Siemens and the local safety agencies responsible for the site where the device is in operation. Components and spare parts Installed components and spare parts must meet the technical specifications of the manufacturer.
  • Page 10 The products are designed for proper use and are checked before delivery to en- sure that they are in good working order. Siemens assumes no liability whatsoever for damages or bodily injuries resulting from misuse or disregard of the instructions or hazard information in the documentation.
  • Page 11 Installation on site should only be performed by qualified personnel and must comply with local regulations. Correct batteries Caution: There is a danger of explosion if the wrong type of battery is used. Dis- pose of used batteries as instructed. Siemens Building Technologies Fire Safety & Security Products 07.2005...
  • Page 12 A customized system using Microsoft Windows is used for digital image recording. This system is only available for the SISTORE MX application software; it cannot be used for other Windows applications. Siemens Building Technologies Fire Safety &...

  • Page 13: Compliance Notice Of Fcc

    Any national or local safety standards or laws that apply to the development, design, installation, operation or disposal of a product must be adhered to in addition to the instructions in the product documentation. Siemens Building Technologies Fire Safety & Security Products 07.2005...

  • Page 14: Sistore Mx Specifications

    SISTORE MX specifications SISTORE MX specifications Recording speed up to 100 images per second, individually configurable for each camera Video inputs 32 x CCVS (BNC sockets), / 75 Ohm, 16 software inputs over LAN Outputs 1 x VGA, 4 x CCVS (BNC sockets) Trigger inputs 32, Uin: 5 –...

  • Page 15: Video Compression

    SISTORE MX specifications Video compression Colour resolution Video digitisation is always in YUV 4:2:2 True Colour Format. Graphical representation on the VGA card can be in 16-bit mode (Hi-Colour), 24-bit True Colour mode (16.7 million colours) or 32-bit True Colour mode.

  • Page 16: Details For Ordering And Product Models Of Sistore Mx

    For expansion of SISTORE MX Pro V2.35 or higher 0.8 kg hard disk expansion kit 250 GByte MXHDE S24245-B5093-A1 For expansion of SISTORE MX Pro V2.50 or higher 0.8 kg hard disk expansion kit 400 GByte 19“ mounting kit C24245-A12-D2 Mounting parts for 19“...

  • Page 17: Scope Of Delivery

    Details for ordering and product models of SISTORE MX Scope of delivery SISTORE MX Mouse Keyboard Mains cable 8 x digital I/O connector Siemens Building Technologies Fire Safety & Security Products 07.2005...

  • Page 18: Getting Started With The Sistore Mx

    To switch back to the external monitor, press Ctr+Alt+F1. Rack installation The 19-inch standard installation kit for SISTORE MX is designed for the network cabinet type Basis RITTAL TS8 (800 mm wide) from RITTAL. In addition to the installation kit, two 19-inch profile rails type DK-TS are required.
  • Page 19 Getting started with the SISTORE MX Fig. 1 SISTORE MX rack installation (top view) Cabinet RITTAL Type TS SISTORE MX Bracket 2RU complete. For MX 19’’ rack installation End-to-end mounting rail 461mm for PS Flat-head screw ISO 7045-M4x12-H-ZN Flat-head screw ISO 7045-M6x18-H-ZN...

  • Page 20: Tabletop Operation

    Getting started with the SISTORE MX Tabletop operation When operating the SISTORE MX on a tabletop keep the following in mind: The device must stand by itself. There must be 85 mm of free space on the sides of the device. Otherwise the device will shut down automatically due to overheating.
  • Page 21 Getting started with the SISTORE MX 75 Ohm termination Dipsw Assignment VIN29 VIN30 VIN31 VIN32 75 Ohm termination Dipsw Assignment VIN9 VIN10 VIN11 VIN12 75 Ohm termination Dipsw Assignment VIN25 VIN26 VIN27 VIN28 75 Ohm termination Dipsw Assignment VIN5 VIN6...

  • Page 22: Sistore Mx Connections And Displays

    SISTORE MX connections and displays SISTORE MX connections and displays Connections on the back of the device The following connections are available on the back side of the SISTORE MX device: Fig. 2 SISTORE MX back side Video Output Video outputs, 50 Hz/60 Hz These outputs should be connected to inputs of the same video standard (e.g.

  • Page 23: Trigger Inputs And Digital Inputs

    If connecting inductive consumers, we recommend using suitable suppressor circuits. SISTORE MX provides 32 trigger inputs and 8 digital inputs. The former are edge- triggered inputs. You can determine by way of the software (RemoteView and SISTORE MX application) whether the input level changes from low to high or from high to low.

  • Page 24: Digital Outputs

    SISTORE MX connections and displays 7.1.2 Digital outputs The outputs switch connected consumers to earth. All outputs can be loaded with a maximum current of 50 mA. The outputs are protected by reversible fuses. All inputs are short-circuit proof. Baugruppe...

  • Page 25: Connections And Displays On The Front Side Of The Device

    SISTORE MX connections and displays Connections and displays on the front side of the device The following displays are available on the front of the SISTORE MX: Fig. 5 SISTORE MX front panel LED displays Power Lit green: Power supply, device ready for operation...

  • Page 26: Prerequisites

    Windows 2000 and Windows XP . Resolution and file format The files stored by SISTORE MX have the extension .K26 or .AVI depending on the system parameterization. These files are in AVI-similar format. The .K26 files can be evaluated only with the CEVIS Player;...

  • Page 27: Get Time Of Client Pc From An Ntp Server

    Restart you PC or enter the following command in the command prompt of your PC: net stop w32time net start w32time The IP address of an appropriate server can be found in the Internet or you can contact your system administrator. Siemens Building Technologies Fire Safety & Security Products 07.2005...

  • Page 28: Hardware

    The timer is constantly restarted by the SISTORE MX software in the normal operating mode so that it never runs out. If the system gets into a state where it no longer reacts and,...
  • Page 29 Select Enable from the context menu (right mouse click). To ensure an optimum performance of the AVM FRITZ ISDN modem, it should be plugged into the upper USB socket at the rear of the device. Siemens Building Technologies Fire Safety & Security Products 07.2005...

  • Page 30: Software

    The SISTORE MX is a preconfigured system. After installing the system it will be operable with standard configuration settings. If it will be necessary to reinstall or repair the software SISTORE MX please follow the description in Section 10.2: Software for installation.

  • Page 31: Software For Installation

    Demo installation In case of an installation as a demo version, SISTORE MX is installed with the configuration files, the hardware simulation and SISTORE Player. Online help and documentation are also installed. As no VCB drivers are installed, recording and operation using live cameras are not possible.

  • Page 32: Software Installation

    Software The following program and database files can be found after the installation and initial start-up of SISTORE MX within the installation directory on your system: Files Description SISTORE.dat Configuration file including the settings of the application, the used hardware and the configured scenarios SISTORE Users.dat...
  • Page 33 Software The following dialog box will appear: Click Next. The following dialog box will appear: Select the destination folder and click Next. Siemens Building Technologies Fire Safety & Security Products 07.2005...
  • Page 34 Select the desired setup type (see Sections 10.1: Server Update and 10.2: Software for installation) and click Next. The following dialog box will appear: Enter the name of the program folder and click Next. The program will now be installed. Siemens Building Technologies Fire Safety & Security Products 07.2005...
  • Page 35 Software Answer Yes in the subsequent confirmation box if SISTORE MX is to be started automatically. The following dialog box will appear: Click Finish. The device will be restarted. Install the software applications from the CD. A desktop shortcut will be created for the SISTORE MX application.
  • Page 36 Software The directory "SISTORE" will now be created in the Windows start menu. Fig. 8 SISTORE MX in the Windows start menu During an embedded installation of the program, a temperature management function for the CPU is installed automatically. Siemens Building Technologies Fire Safety &...

  • Page 37: First Login In The System

    Select Login in the File menu or in the toolbar The following dialog box will appear: Fig. 9 SISTORE MX login Enter the following in the login dialog: User name Enter the user name created for you by the administrator. The entry is case- sensitive.

  • Page 38: Language Version Of The Software

    Select the System tab. Stipulate the language in which SISTORE MX is to operate. SISTORE MX finds all languages and lists them in a combo box. Further languages can be installed at any time. You can now select a specific language or –...

  • Page 39: Changing The Language Version Of The Software In Windows Xp

    The following dialog box will appear: Fig. 10 Changing Regional Options Configure the following settings in this tab: Standards und formats German (Germany) Location Germany Click OK. Select the Languages tab. Siemens Building Technologies Fire Safety & Security Products 07.2005...
  • Page 40 The following dialog box will appear: Fig. 11 Language Click on Details. The following dialog box will appear: Fig. 12 Settings Configure the following settings in the Settings tab: Default input language German (Germany) Siemens Building Technologies Fire Safety & Security Products 07.2005...
  • Page 41 A dialog box will appear (see Section 10.7: Changing the language version of the software in Windows XP). Click on Customize... Select the Time tab. The following dialog box will appear in which you can make the desired settings: Siemens Building Technologies Fire Safety & Security Products 07.2005...
  • Page 42 Software Fig. 14 Time Now select the Date tab and make the following settings: Fig. 15 Date Confirm with OK. Siemens Building Technologies Fire Safety & Security Products 07.2005...

  • Page 43: Supplement On Using The Cd Burner

    CD burning software NERO OEM Suite V6.0 and greater. The user can burn data directly on a CD-R / CD-RW medium; this will be managed directly within the SISTORE MX software. Please regard the user manual for more details.

  • Page 44: Appendix

    Fig. 6 Open command prompt from the Start menu .........71 Fig. 7 Desktop shortcut for SISTORE MX............79 Fig. 8 SISTORE MX in the Windows start menu ..........80 Fig. 9 SISTORE MX login .................81 Fig. 10 Changing Regional Options ..............83 Fig. 11 Language ....................84...
  • Page 45 Herausgegeben von Siemens Building Technologies © 2005 Copyright by Fire & Security Products GmbH & Co. oHG Siemens Building Technologies AG D-76181 Karlsruhe Liefermöglichkeiten und technische Änderungen vorbehalten. Gedruckt in der Bundesrepublik Deutschland www.sbt.siemens.com auf umweltfreundlich chlorfrei gebleichtem Papier. Dokument Nr. A24205-A336- H372 Ausgabe 07.2005...
