Digital Video Recorder
SISTORE AX8 1000/200 V4.0
SISTORE AX16 1000/400 V4.0
Installation Manual

Advertisement

   Related Manuals for Siemens SISTORE AX8 1000/200 V4.0

   Summary of Contents for Siemens SISTORE AX8 1000/200 V4.0

  • Page 1

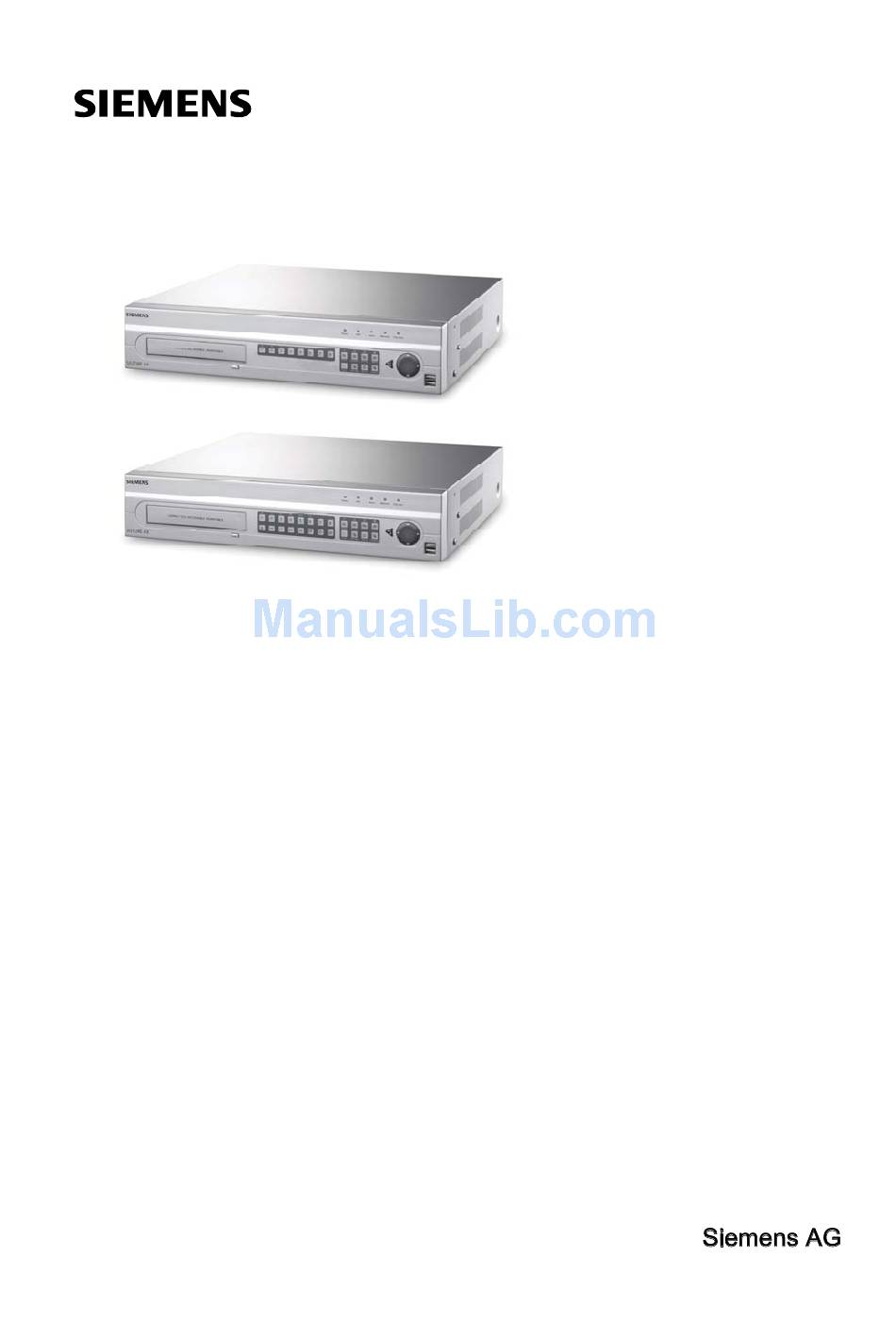

    Digital Video Recorder SISTORE AX8 1000/200 V4.0 SISTORE AX16 1000/400 V4.0 Installation Manual...

  • Page 2

    If you have questions or suggestions regarding the product or this documentation, please contact our Customer Support Center: Intranet: Customer Support Center Internet: About us > Worldwide Contacts Email: fs.support.sbt@siemens.com Tel.: +49 89 9221 8000 Fax: +49 89 6367 2000 Training courses Siemens provides training courses for all products.

  • Page 3: Table Of Contents

    Connecting the remote keyboard CKA4820 and dome cameras CCDA1415 and CCDA1425/1435............17 6.14.2 Local control of CCDA and CCDS dome cameras .........18 6.14.3 Connecting alarm input/output ..............19 Operation ....................20 Turning on the power ................20 Front panel buttons and LEDs ..............21 System setup ..................22 Disposal ....................22 Siemens AG 05.2010...

  • Page 5: Safety

    Use only spare parts and accessories that have been approved by the manufacturer. 1.2.1 Transport Damage during transport Do not expose the device to mechanical vibrations or shocks. Keep the packaging material for future transportation. Siemens AG 05.2010...

  • Page 6: Installation

    Always disconnect the power cable and other cables from the main power supply before performing maintenance. Danger of electrical shock while cleaning the device Disconnect the device from the mains supply before cleaning. Do not use liquid cleaners or sprays that contain alcohol, spirit or ammonia. Siemens AG 05.2010...

  • Page 7: Meaning Of The Written Warning Notices

    Warning of a hazard Directives and standards This product complies with the requirements of the following European directives. The EU declaration of conformity is available to the responsible agencies at: Siemens AG Siemensallee 84 76181 Karlsruhe Germany European Directive 2004/108/EC ”Electromagnetic Compatibility”...

  • Page 8: Technical Data

    1000 GB SATA, extensible with two 250 GB, 500 GB, or 1000 GB SATA extension kits Backup recording media* Built-in DVD burner, USB (hard disk drive, flash memory) Disk management Temperature check, SMART diagnosis, auto database recovery, operation without hard disk drive, auto deletion Siemens AG 05.2010...

  • Page 9: Details For Ordering

    10.2 kg Scope of delivery Digital video recorder Power cord CD-ROM including: Configuration & Operation Manual Multilingual RAS Software and User Manual Multilingual Installation Manual Rack-mount kit Assembly screws for adding hard disk drives Infrared remote control Siemens AG 05.2010...

  • Page 10: Installation

    The diagram below shows a typical DVR installation. Fig. 1 Typical DVR installation Fig. 2 16-channel DVR rear panel Video Input RS232C Port Video Loop Through Audio In/Out RS485 Port Video Out Alarm Input/Output Factory Reset Switch Network Port Power Cord Connector Siemens AG 05.2010...

  • Page 11: Connecting The Video Input

    Connecting the monitor Fig. 5 Video Out connectors Connect the main monitor to the Video Out connector. Connect the spot monitor to the SPOT connector as needed. Connecting a VGA monitor Fig. 6 VGA connector Siemens AG 05.2010...

  • Page 12: Connecting Audio In/out

    (Normally Open) is below 0.3 V and should be stable at least 0.5 seconds to be detected. For further information please refer to the Configuration & Operation Manual: Section Alarm-In screen. GND (Ground) Connect the ground side of the alarm input and/or alarm output to the GND connector. Siemens AG 05.2010...

  • Page 13: Connecting To The Rs485 Port

    Connect TX+/RX+ and TX-/RX- of the control system to the RX+/TX+ and RX-/TX- (respectively) of the DVR. For further information please refer to the Configuration & Operation Manual and the PTZ camera or remote keyboard manual for configuring the RS485 connection. Siemens AG 05.2010...

  • Page 14: Connecting To The Usb Ports

    For further information on configuring the Ethernet connections please refer to the Configuration & Operation Manual. NOTE The Network connecter is not designed to be connected directly with cable or wire intended for outdoor use. Siemens AG 05.2010...

  • Page 15: Factory Reset

    CAUTION Do not overload the circuit by plugging too many devices in to one circuit. Your DVR is now ready to operate. For information on configuration and operation please refer to the Configuration & Operation Manual. Siemens AG 05.2010...

  • Page 16: Connector Pin Outs

    TXD (Transmit Data) Pin 4 DTR (Data Terminal Ready) Pin 5 GND (System Ground) Pin 6 DSR (Data Set Ready) Pin 7 RTS (Request To Send) Pin 8 CTS (Clear To Send) Pin 9 RI (Ring Indicator) Siemens AG 05.2010...

  • Page 17: Connection Diagrams

    SISTORE AX ID #1 RS232 CKA4820 RS485 CCDA1415/1425/1435 ID #1 ID #n Settings on the SISTORE AX In the “Camera” menu: PTZ Device: Siemens CCDA – ID: #1 … #n – In the menu “RS232/RS485” RS232 RS485 Baud Rate 19,200 19,200 (CCDA1415) 1200…9600...

  • Page 18: 6.14.2 Local Control Of Ccda And Ccds Dome Cameras

    Once the OSD is displayed on the video output, navigation and parameter setup can be performed using the following commands: OSD function PTZ command OSD up PTZ up OSD down PTZ down Select parameter / next page Focus near Deselect parameter / page back Focus far Siemens AG 05.2010...

  • Page 19: 6.14.3 Connecting Alarm Input/output

    NOTE The threshold voltage of alarm input is below 5 V. Recommended RELAY Alarm Out connection Mechanical alarm output device can be used as above. NC/NO is a relay output which sinks 2A@125VAC and 1A@30VDC. Siemens AG 05.2010...

  • Page 20: Operation

    Installation, it is ready to record. There is no recording button on the front panel to initiate recording video. The SISTORE AX8/16 will start recording video according to the schedule configured by the user and from external and internal events such as alarm input, motion detection or text-in events. Siemens AG 05.2010...

  • Page 21: Front Panel Buttons And Leds

    Pressing the Right arrow button plays video at regular speed, and pressing the button again toggles the playback speed from x2, x3 and x4. Pressing the Left arrow button plays video backward at high speed, and pressing the button again toggles the playback speed from x2, x3 and x4. Siemens AG 05.2010...

  • Page 22: System Setup

    For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product. Siemens AG 05.2010...

  • Page 24

    Issued by Siemens AG Siemensallee 84 D-76187 Karlsruhe © 2010 Copyright by Siemens AG Tel. +49 721 595 1 Data and design subject to change without notice. www.buildingtechnologies.siemens.com Supply subject to availability. Document no. A6V10315395 Edition 06.05.2010...
