StarTech.com 16 Port StarView CAT5 UTP KVM Instruction Manual page 23

Please Note: You can optionally change the Hotkey to the Ctrl key, in
which case you would tap [Ctrl] twice. With this method, the Ctrl keys
used must be on the same side (both left, or both right).
The OSD incorporates a two level (Administrator / User) password sys-
tem. Before the OSD Main Screen comes up, a dialog box appears that
asks you to provide your password. If the password function has been set,
you must provide the password in order to access the OSD Main Screen.
If this is the first time that the OSD is being run, or if the password func-
tion has not been set, simply press [Enter]. The OSD Main Screen comes
up in Administrator Mode. In this mode, you have Administrator privileges,
with access to all Administrator and User functions, and can set up opera-
tions (including password authorization for the future), as you would like.

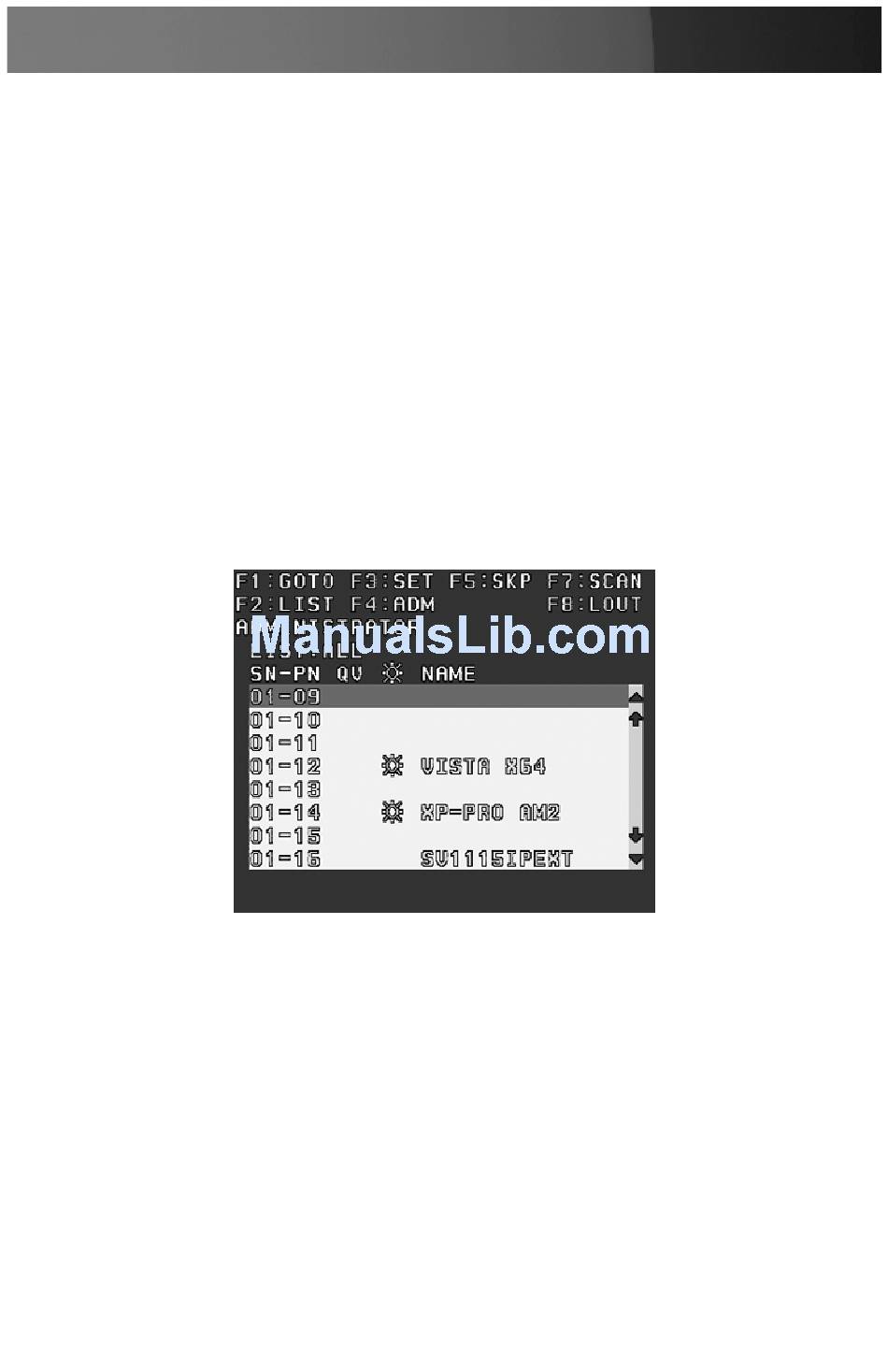

When you invoke the OSD, a screen similar to the one below appears:
Please Note:
1. The diagram depicts the Administrator's Main Screen. The User Main
Screen does not show the F4 function as it is reserved for the
Administrator and cannot be accessed by ordinary Users.
2. The OSD always starts in List view, with the highlight bar at the same
position it was in the last time it was closed.
3. Only the ports that have been set accessible by the Administrator for
the currently logged in User are visible.
