StarTech.com C2-D46-UC2-CBL-KVM Quick Start Manual

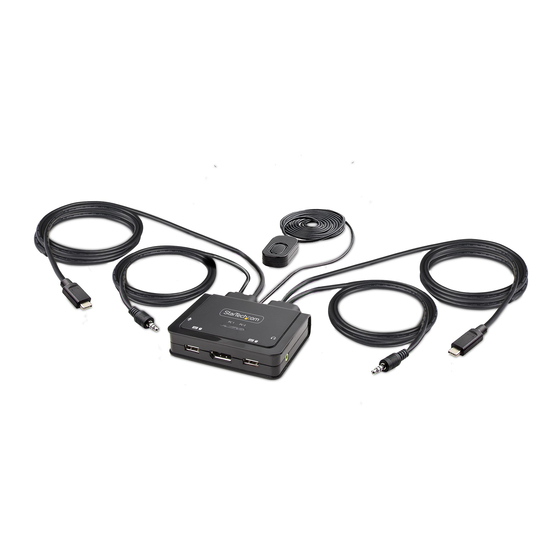

2-Port USB-C Cable KVM Switch - DisplayPort - 4K 60Hz
Product ID
C2-D46-UC2-CBL-KVM
Top
1
Sides
7
Front
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
8
9
10

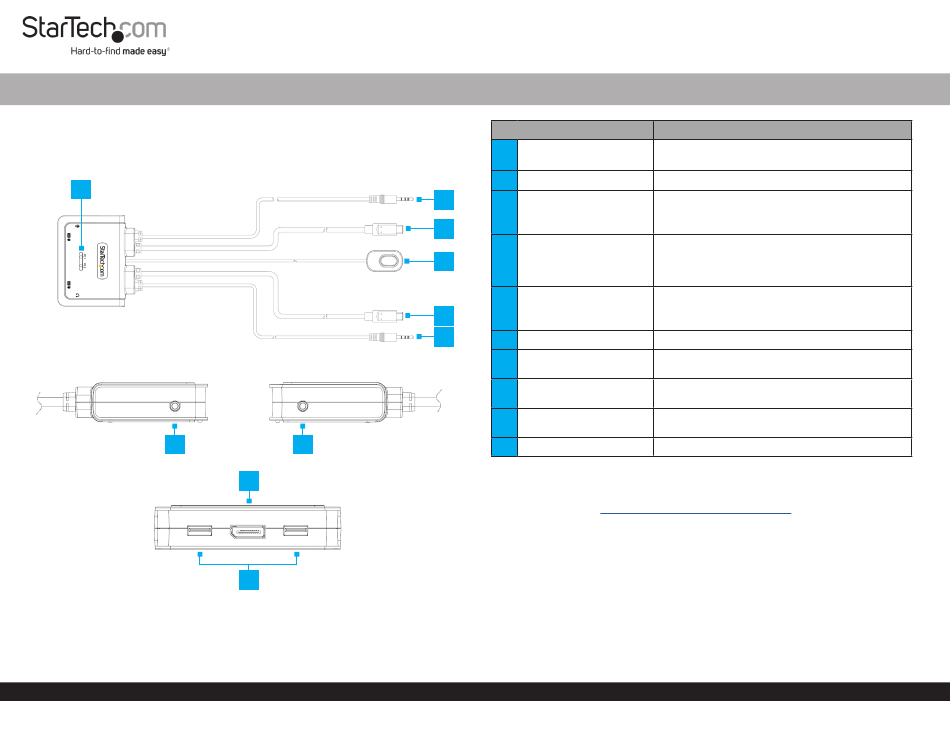

Component
1
LED Indicators
2 PC 1 Audio Connector
2
PC 1 USB-C Host
3
Connector
3
4 4 Remote Port Selector
PC 2 USB-C Host
5
Connector
5
6
6
PC 2 Audio Connector
Console Microphone
7
Port
8 Console Audio Output
Console DisplayPort
9
Output Port
10
Console USB HID Ports
Product Information
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit: www.StarTech.com/C2-D46-UC2-CBL-KVM
Package Contents
• KVM Switch x 1
• Quick-Start Guide x 1
Quick-Start Guide
Function
• Solid Green = Selected PC is Connected
• Blinking Green = Selected PC is not detected
• Connect to a 3.5mm Headset Port on PC 1
• Connect to a USB-C port on PC 1
• For full functionality the Host Computer
USB-C Port must support DP-Alt Mode
• A wired button used to switch between PC 1
and PC 2
• Press and Release the Remote Switch to switch
between PC 1 and PC 2
• Connect to a USB-C port on PC 2
• For full functionality the Host Computer
USB-C Port must support DP-Alt Mode
• Connect to a 3.5mm Headset Port on PC 2
• Pink: Connect a Microphone
• Green: Connect an Audio Device (ie. Speakers
or Headphones)
• Connect to a DisplayPort Display
• Connect a USB Mouse and Keyboard
Manual Revision: April 3, 2023 9:51 AM
