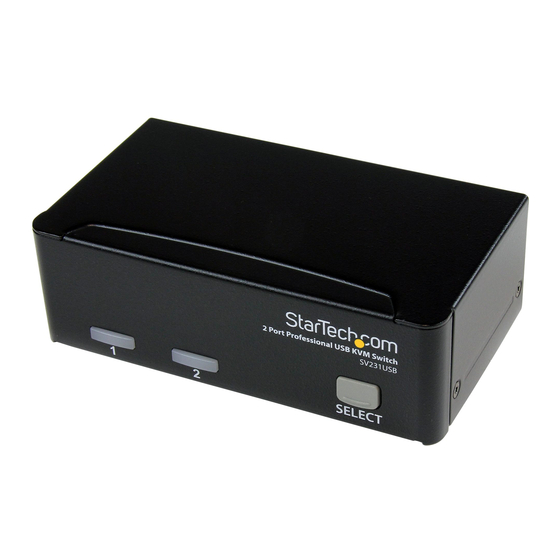

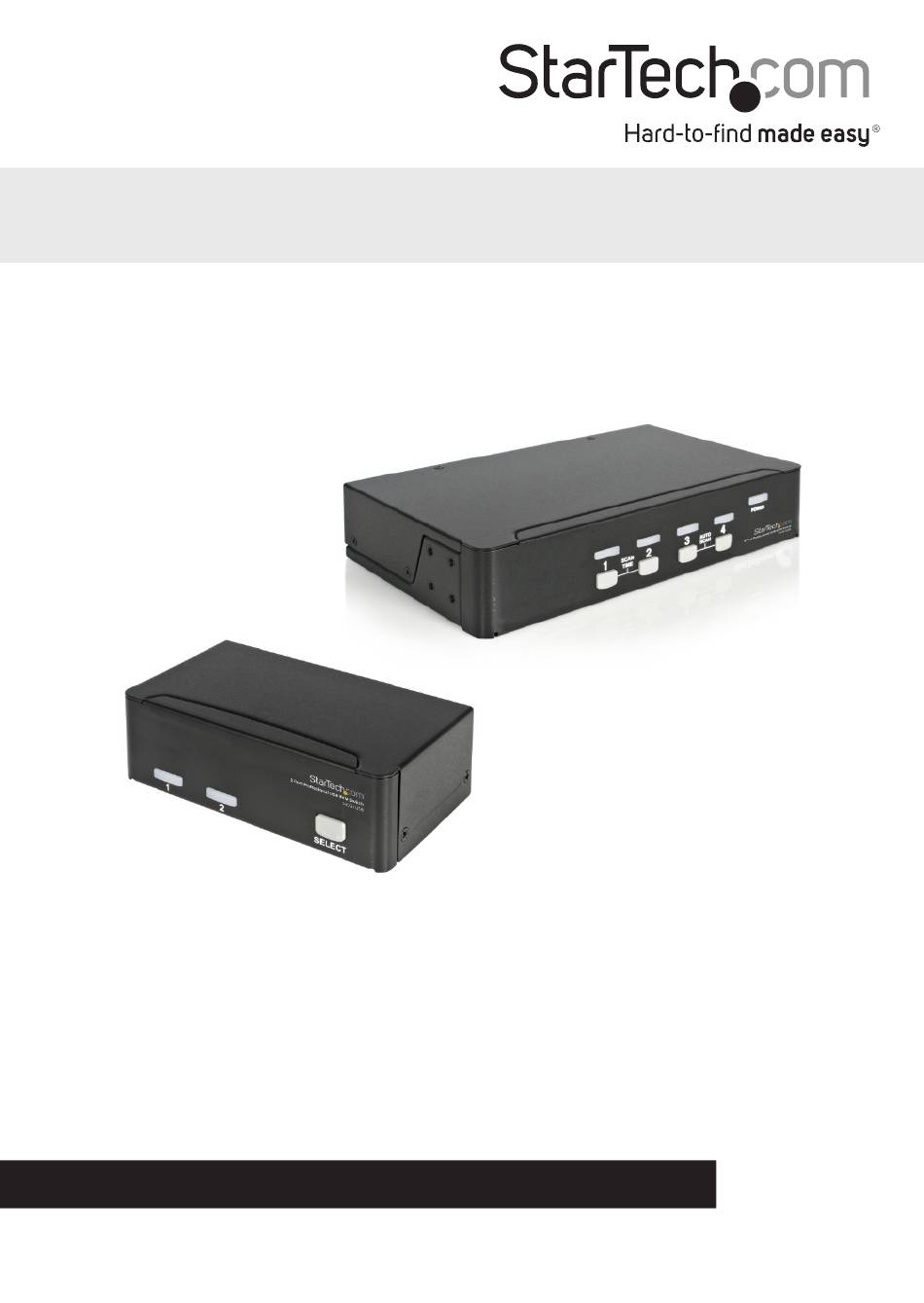

2 Port Professional USB KVM Switch Kit with Cables
4 Port Professional USB KVM Switch
SV231USB
SV231USBGB
SV431USB
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/23/2021
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com StarView SV231USBGB
Summary of Contents for StarTech.com StarView SV231USBGB
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 03/23/2021...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Features ................................ 1 Packaging Contents ..........................1 System Requirements ..........................1 Accessory Products from StarTech.com..........2 Computer Connection ..........................4 Operation ..............................5 Rack Mount Kit for SV431USB (optional) ..................6 Specifications ..................7 Troubleshooting ..................8 Technical Support ..................9 Warranty Information ................9... -
Page 4: Introduction
Introduction The StarView SV231USB and SV431USB, fully compatible with USB 2.0 specifications, are a combination of USB 2.0 KVM (Keyboard/Video/Mouse) switches and USB 2.0 peripherals sharing devices. With the SV231USB and SV431USB, you can easily operate up to 2 or 4 PCs, G3/G4 Macs, or iMacs respectively from the 1 USB keyboard, 1 USB mouse, and 1 monitor saving you space, time, equipment and money. -
Page 5: Accessory Products From Startech.com
• HDB-15 to DB-15 VGA adapter is required for Mac computer VGA ports Accessory Products from StarTech.com Contact your local StarTech.com dealer or visit www.startech.com for cables or other accessories that will help you get the best performance out of your new product. - Page 6 Installation PC BIOS Notice The following BIOS setup changes are necessary for PC users and not necessary for Mac users: 1. In STANDARD CMOS, set HALT ON ERROR to ALL BUT KEYBOARD 2. In PNP and PCI SETUP, set PNP OS INSTALLED to YES and set USB IRQ to ENABLED Note: The StarView switch is applicable for USB 2.0 keyboard and mouse switching from one computer to the other.
-
Page 7: Computer Connection
Computer Connection Use a HDB15 male-to-female cable to connect from a computer’s VGA port to the StarView’s VGA port of the PC side, as shown below. Use a USB 2.0 A-B cable to connect from the StarView’s USB 2.0 port on the corresponding computer (A connector is the flat connector) as shown below. -
Page 8: Operation
Operation Front Panel 1. On-line LED and Selected LED: When the LED turns green, the connected computer is powered-on When a computer is selected its corresponding red LED illuminates. 2. Push buttons: Each computer has a button associated with it on the front panel for selection. Auto Scan Auto Scan automically scans through computers one by one in a fixed interval (see Scan Time below). -
Page 9: Rack Mount Kit For Sv431Usb (Optional)
Rack Mount Kit for SV431USB (optional) The figure below shows how to attach optional mounting brackets and cable support to the SV431USB for standard 19-inch rack cabinet. To the Rack Cabinet back post Keyboard, Mouse, Monitor cables to the StarView KVM Switch Two screws secure To the Rack Cabinet the cable support... -
Page 10: Specifications
Specifications SV431USB SV231USB/ SV231USBGB # of Computers Supported Front Panel Push Button Hot Plug & Play Auto Scan Interval 3, 8, 15, 30 seconds Cabel Length (Max) 30m (100ft) for VGA 5m (15ft) for USB Compter Online LED Computer Selected LED 1920 x 1440, DDC2B Computer Peripheral USB Type B x 4... -
Page 11: Troubleshooting
Troubleshooting Symptom Causes Solutions Press any front button to In Auto Scan, keyboard and select a computer, then use Keyboard or mouse does moust are not operable. the keyboard and mouse. not work Too many keyboard or Remove all unnnecessary mouse drivers installed keyboard and mouse drivers... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
