Summary of Contents for StarTech.com STARVIEW SV231DDUSB

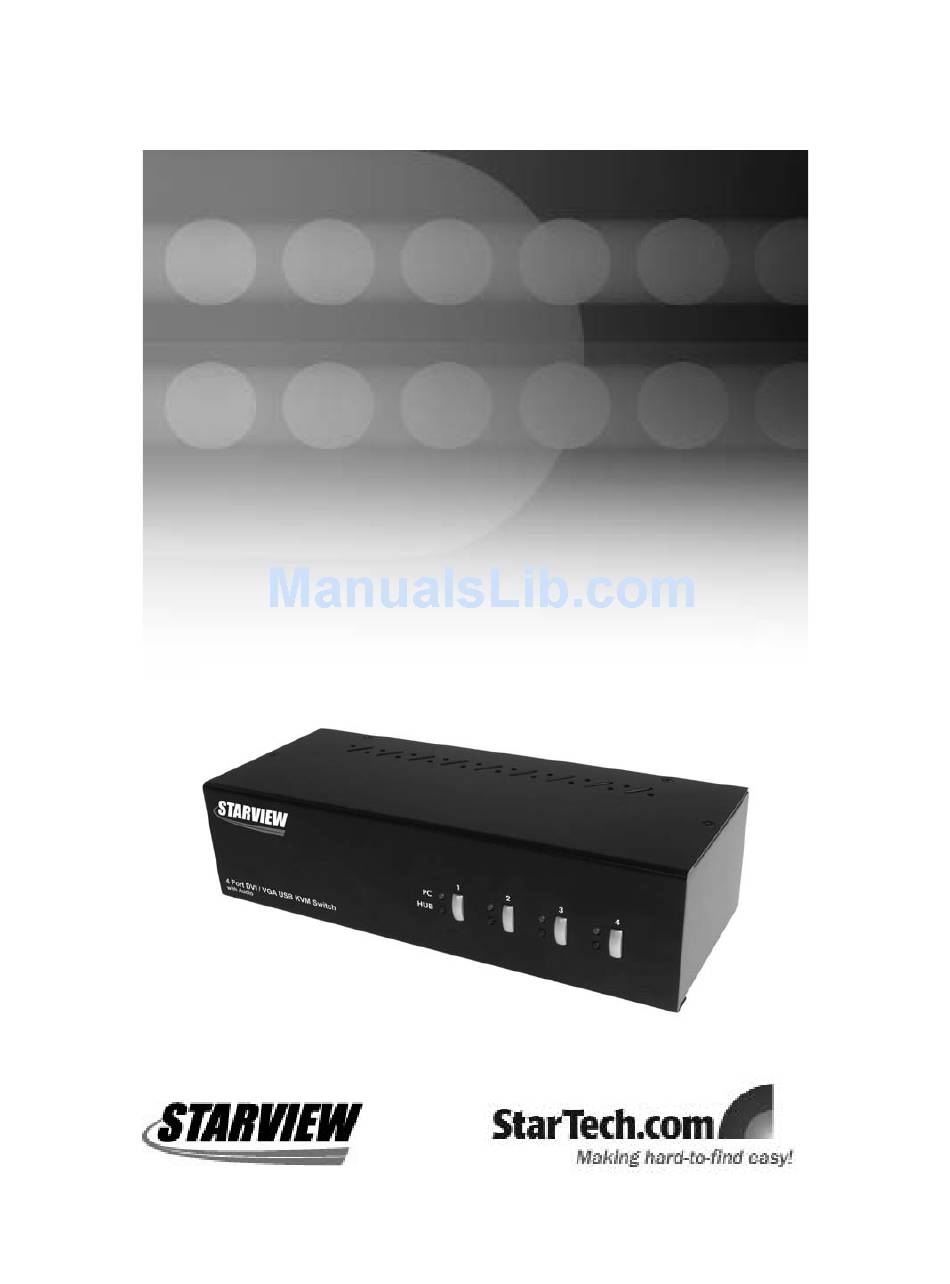

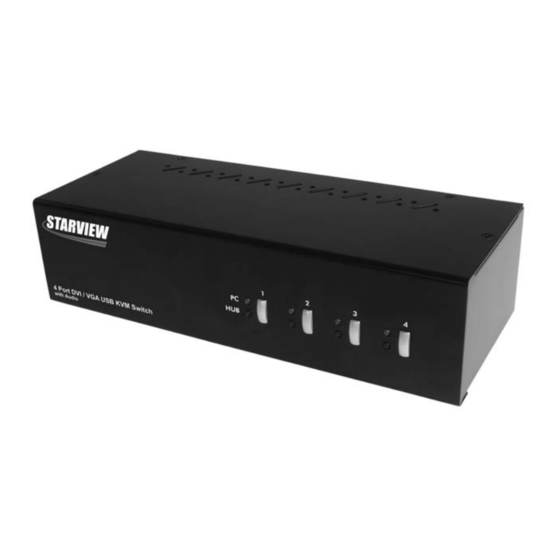

- Page 1 DVI / VGA USB KVM Switch 2 Port DVI / VGA USB KVM Switch 4 Port DVI / VGA USB KVM Switch SV231DDUSB Instruction Manual SV431DDUSB *SV431DDUSB Shown - Actual product may vary from photo...
- Page 2 This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual...
-
Page 3: Table Of Contents
T T a a b b l l e e o o f f C C o o n n t t e e n n t t s s Introduction ........... . .1 Features . -
Page 4: Introduction
I I n n t t r r o o d d u u c c t t i i o o n n Thank you for purchasing a StarTech.com DVI/VGA USB KVM Switch. Providing simple, centralized control of multiple computers from a single display and USB peripheral set... -
Page 5: Hardware Guide
H H a a r r d d w w a a r r e e G G u u i i d d e e Front Panel Rear panel SV431DDUSB shown - actual product may vary from photo I I n n s s t t a a l l l l a a t t i i o o n n Please note: Some older computers might require that the USB option be manually enabled in the BIOS, prior to being able to use any USB devices. -
Page 6: Installing The Kvm Switcher Software
(1) Hit ScrollLock + ScrollLock + H, which will be followed by two beeps indicating readiness for selection of a new preceding sequence, or press and hold down the last front-panel button (Button 2 on SV231DDUSB, Button 4 on SV431DDUSB) until you hear two beeps, then release the button. - Page 7 LOCK, CAPS, ESC, F12 or NUM LOCK keys are available for selection) and you’ll hear a beep for selection confirmation. The new preceding sequence can now be used to execute hotkey commands. Switcher Software Right-click the KVM Switcher icon (shown below) to launch the operation menu, then select whichever PC is available for switching.
- Page 8 In Windows : Operation Menu In MAC OS : Operation Menu Please note that in addition to the hotkeys as configured in the software interface, you can still use the original “hardware” hotkeys: Hotkey sequence = [ScrLk]* + [ScrLk] * + Command key(s) * User-definable = SCROLL LOCK, CAPS, ESC, F12 or NUM LOCK Using Auto-scan Auto-scan provides users with the ability to designate automated scanning of connected...
- Page 9 Instruction Manual KVM Switcher configuration Right-click the KVM Switcher icon and select Settings (Windows) or Preferences (Mac) or double-click the icon to bring up the configuration dialog box. Specifying Hotkeys You can specify the command key as needed, by entering it within the configuration utility. For example, you can specify the hotkey for switching to PC 1 as CTRL - ALT - A by typing an A (not case-sensitive) in the editable field.
-
Page 10: Keyboard Hotkey Commands
Keyboard Hotkey Commands Command Name Hotkey Sequence Select active computer [ScrLk]+[ScrLk]+[ x ] Select USB hub control [ScrLk]+[ScrLk]+[F x ] Select Audio/Mic output [ScrLk]+[ScrLk]+[F y ] Bind computer and USB hub [ScrLk]+[ScrLk]+[Z] control (default) Unbind computer and USB [ScrLk]+[ScrLk]+[X] hub control Bind computer and Audio/Mic [ScrLk]+[ScrLk]+[Q] control (default) -
Page 11: Specifications
W W a a r r r r a a n n t t y y I I n n f f o o r r m m a a t t i i o o n n This product is backed by a one-year warranty. In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. - Page 12 United States, Canada, the United Kingdom and Taiwan. Visit www.startech.com for complete information about all our products and to access exclusive interactive tools such as the Parts Finder and the KVM Reference Guide.
