StarTech.com C2-D46-UAC-CBL-KVM Quick Start Manual

2-Port USB-C and DisplayPort/USB-A Cable KVM Switch - DisplayPort - 4K 60Hz
Product ID
C2-D46-UAC-CBL-KVM

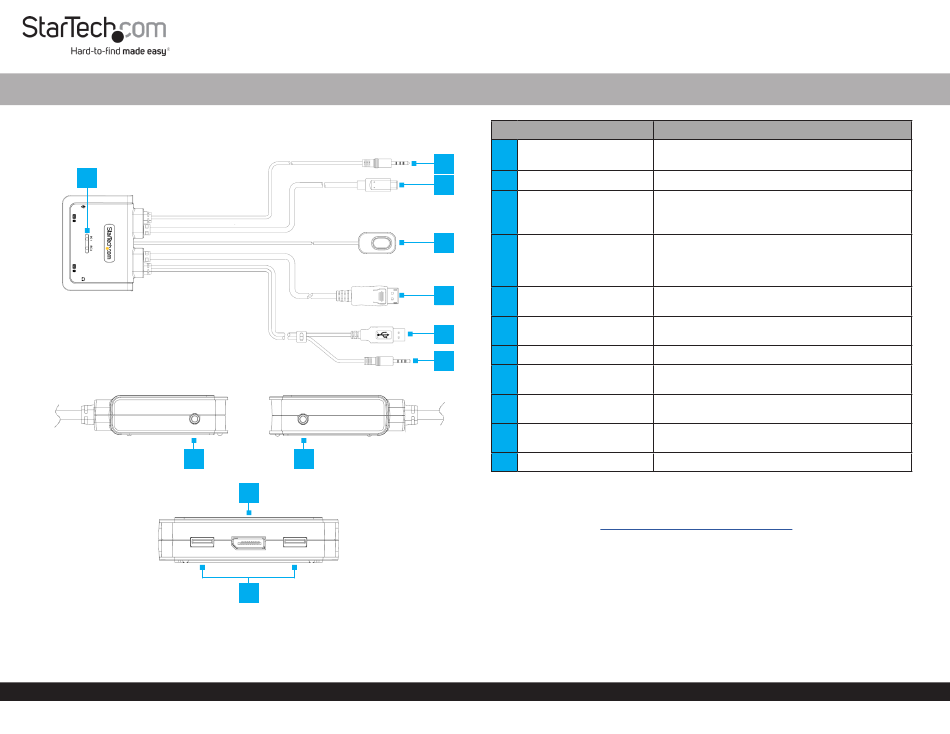

Top
1
Sides
8
Front
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
9
10
11
Component
1
LED Indicators
2
2 PC 1 Audio Connector
3
PC 1 USB-C Host
3
Connector
4
4 Remote Port Selector
5
PC 2 DisplayPort
5
Connector
PC 2 USB-A Host
6
6
Connector
7
PC 2 Audio Connector
7
Console Microphone
8
Port
9 Console Audio Output
Console DisplayPort
10
Output Port
11
Console USB HID Ports
Product Information
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit: www.StarTech.com/C2-D46-UAC-CBL-KVM
Package Contents
• KVM Switch x 1
• 3.5mm 4 Position to 2x 3.5mm 3 Position Headset Adapter x 1
• Quick-Start Guide x 1
Quick-Start Guide
Function
• Solid Green = Selected PC is connected
• Blinking Green = Selected PC is not detected
• Connect to 3.5mm Headset Port on PC 1
• Connect to a USB-C Port on PC 1
• For full functionality Host Computer USB-C
Port must support DP-Alt Mode
• A wired button used to switch between PC 1
and PC 2
• Press and Release the Remote Switch to switch
between PC 1 and PC 2
• Connect to a DisplayPort Enabled Computer
• Connect to a USB-A Port on PC 2
• Connect to a 3.5mm Headset Port on PC 2
• Pink: Connect a Microphone
• Green: Connect an Audio Device (ie. Speakers
or Headphones)
• Connect to a DisplayPort Display
• Connect a USB Mouse and Keyboard
Manual Revision: January 25, 2023 3:42 PM
