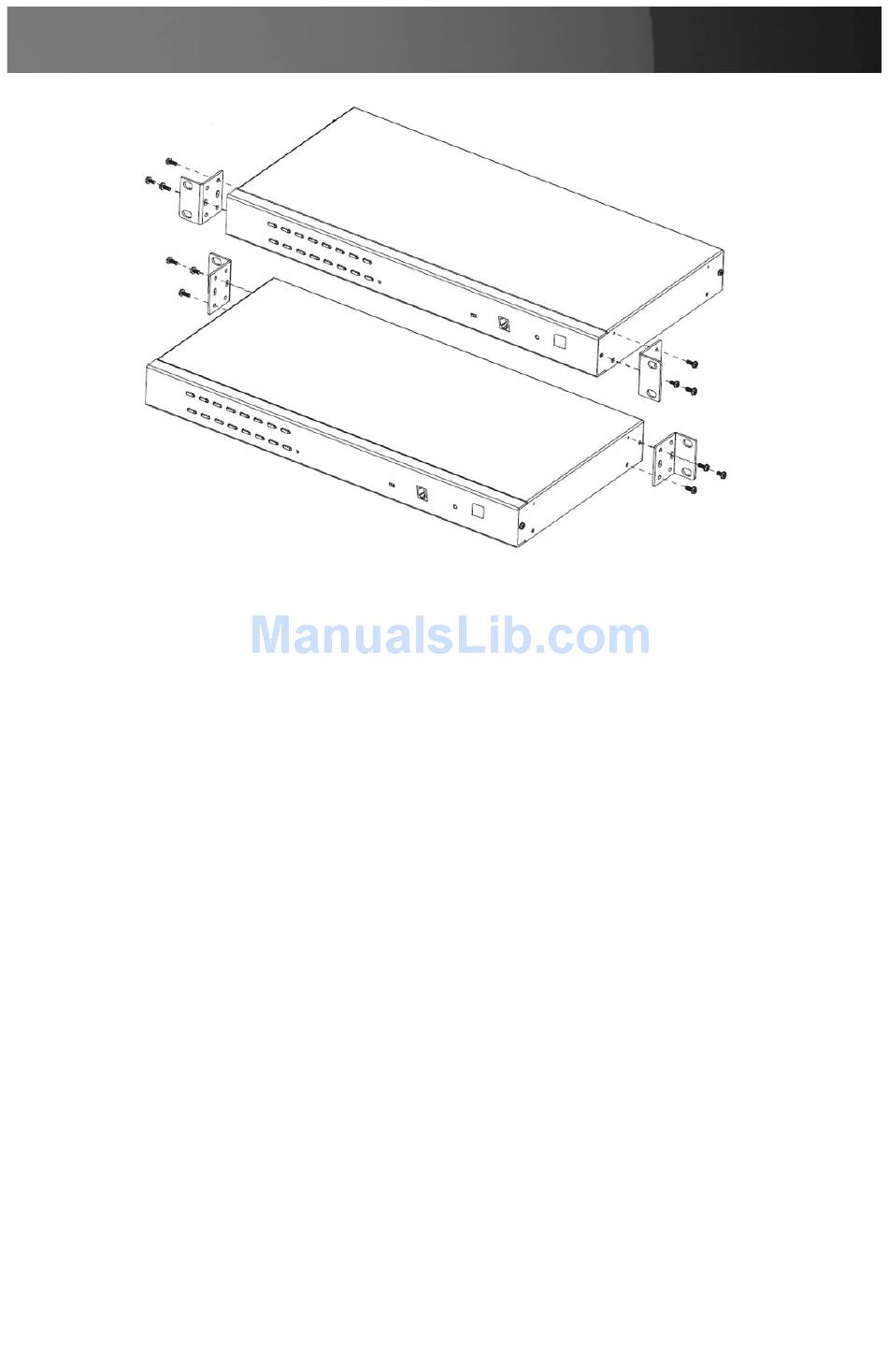

3. Slide the unit into the front or rear of the rack and secure it to the rack.

Single Station Installation

In a Single Stage installation, there are no additional KVM switches cas-
caded down from SV831DUTP / SV1631DUTP. To set up a single stage
installation, refer to the installation diagrams on the following page (the
numbers in the diagram correspond with the numbers of the instruction
steps), and do the following:
1. Plug your Local Console's keyboard, monitor, and mouse into the
unit's Console Ports. Each port is color coded and marked with an
appropriate icon to identify itself.
2. Use Cat. 5 cable to connect any available KVM port to a KVM Adapter
Cable that is appropriate for the computer you are installing.
Please Note: SV831DUTP / SV1631DUTP does not support distances
between itself and the KVM Adapter Cable that exceed 40 m (130').
3. Connect the KVM Adapter Cable to the computer. Plug the connectors
on the KVM Adapter Cable into the appropriate ports of the computer
you are installing.
