WAN Connection
Detection
RIP Protocol
Bridge Mode
WAN Backup Setup
Vigor2710 Series User's Guide
priority for the packets sending by the router.
VID– Type the value as the VLAN ID number. The range is form
0 to 4095.
Priority – Type the packet priority number for such VLAN. The
range is from 0 to 7.
Such function allows you to verify whether network connection is
alive or not through ARP Detect or Ping Detect.
Mode – Choose ARP Detect or Ping Detect for the system to
execute for WAN detection.
Ping IP – If you choose Ping Detect as detection mode, you have
to type IP address in this field for pinging.
TTL (Time to Live) – Displays value for your reference. TTL
value is set by telnet command.
Routing Information Protocol is abbreviated as RIP（RFC1058）
specifying how routers exchange routing tables information. Click
Enable RIP for activating this function.
If you choose Bridged IP as the protocol, you can check this box
to invoke the function. The router will work as a bridge modem.

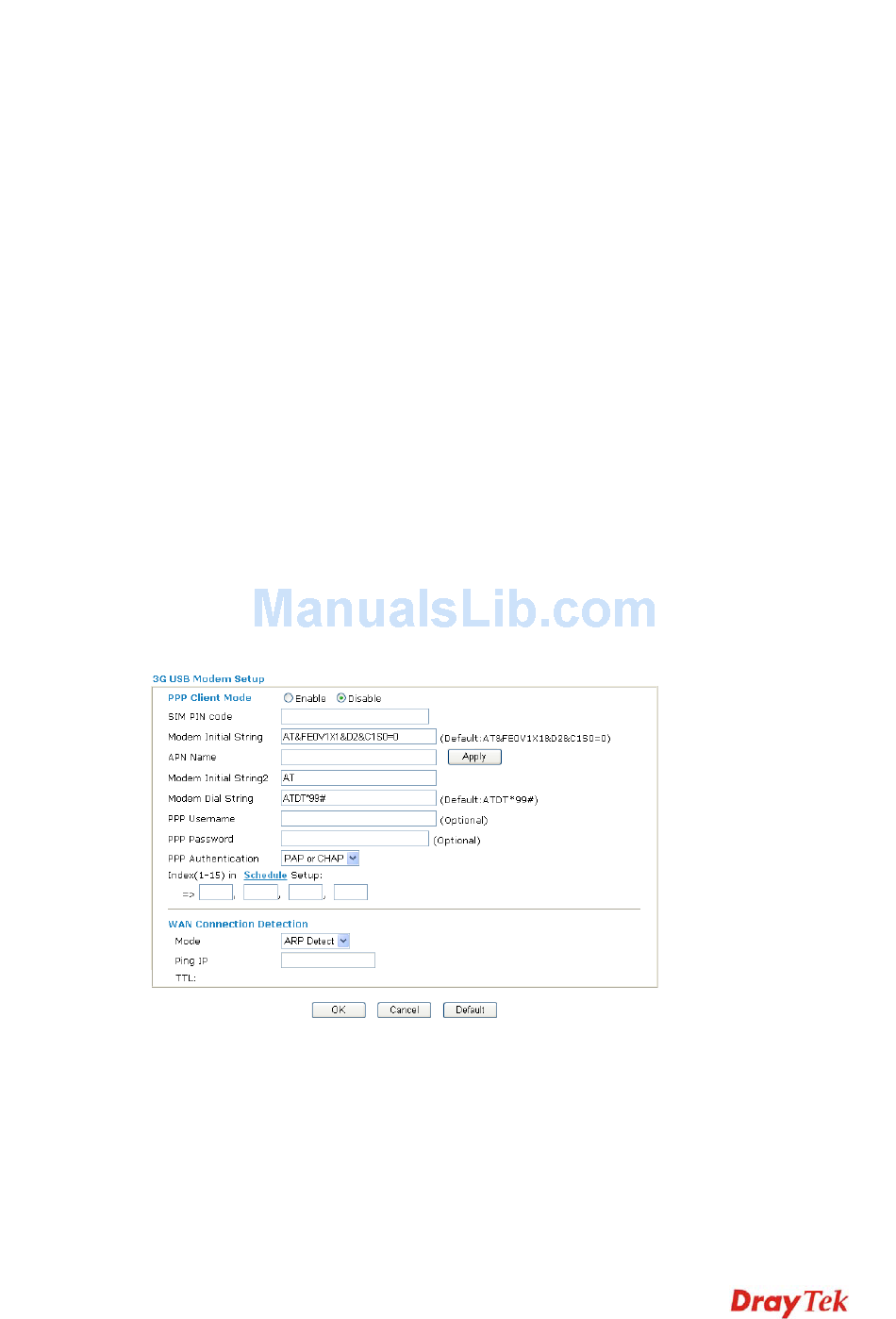

3G USB Modem – If you have installed a 3G USB modem on the
router, please enable Dial Backup Mode to perform file backup
via USB device. After choosing Enable, please click the 3G USB
Modem link to access into the following page for configuring
detailed settings.
PPP Client Mode - Click Enable to activate this mode for
WAN2.
SIM PIN code - Type PIN code of the SIM card that will be used
to access Internet.
Modem Initial String - Such value is used to initialize USB
modem. Please use the default value. If you have any question,
please contact to your ISP.
APN Name – APN (Access Point Name) is provided by your ISP
for identifying different access points. Simply click Apply to
38
