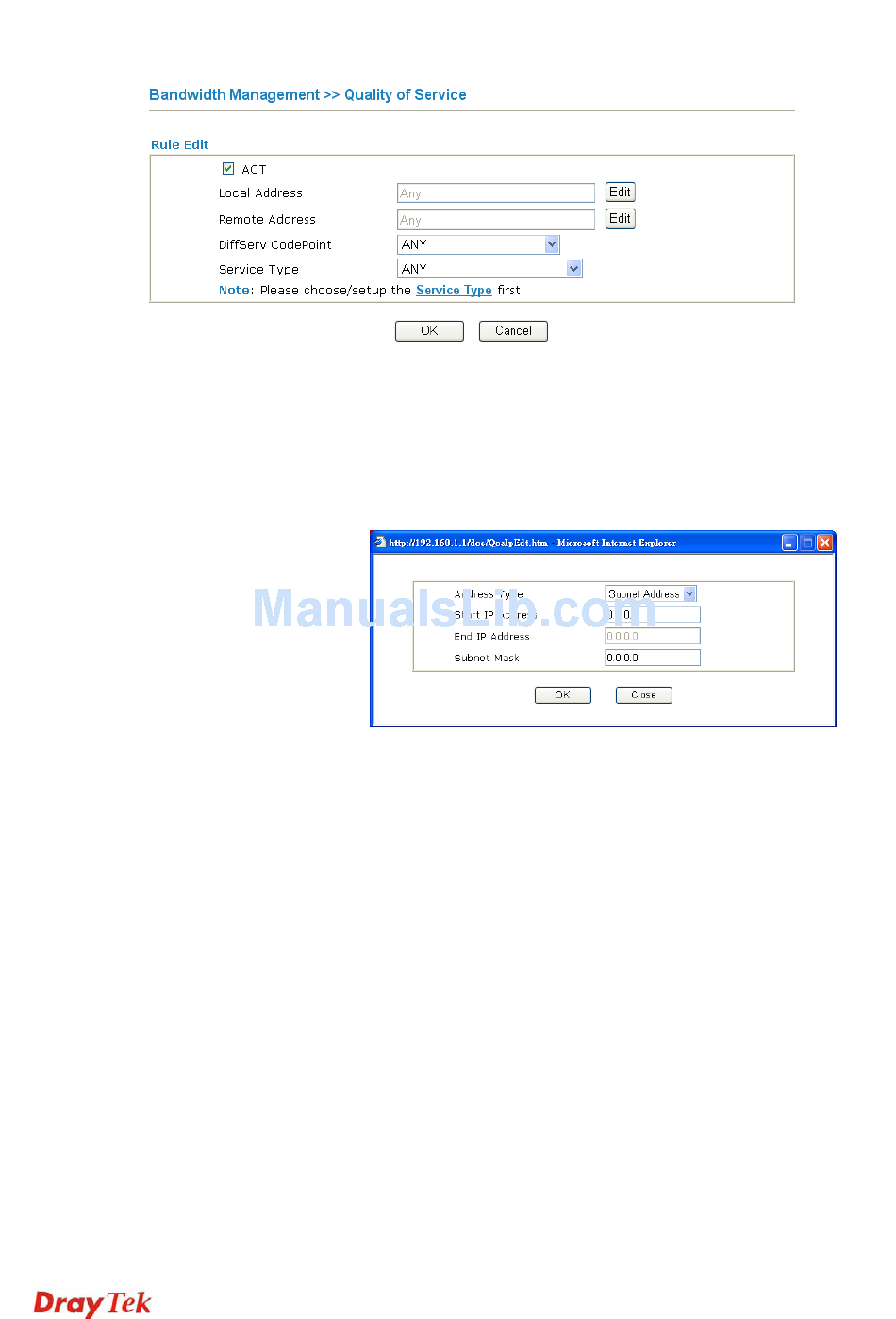

For adding a new rule, click Add to open the following page.
ACT
Local Address
Remote Address
Edit
DiffServ CodePoint
Service Type
By the way, you can set up to 20 rules for one Class. If you want to edit an existed rule,
please select the radio button of that one and click Edit to open the rule edit page for
modification.
Check this box to invoke these settings.
Click the Edit button to set the local IP address (on LAN) for
the rule.
Click the Edit button to set the remote IP address (on
LAN/WAN) for the rule.
It allows you to edit source address information.
Address Type – Determine the address type for the source
address.
For Single Address, you have to fill in Start IP address.
For Range Address, you have to fill in Start IP address and
End IP address.
For Subnet Address, you have to fill in Start IP address and
Subnet Mask.
All the packets of data will be divided with different levels and
will be processed according to the level type by the system.
Please assign one of the levels of the data for processing with
QoS control.
It determines the service type of the data for processing with
QoS control. It can also be edited. You can choose the
predefined service type from the Service Type drop down list.
Those types are predefined in factory. Simply choose the one
that you want for using by current QoS.
