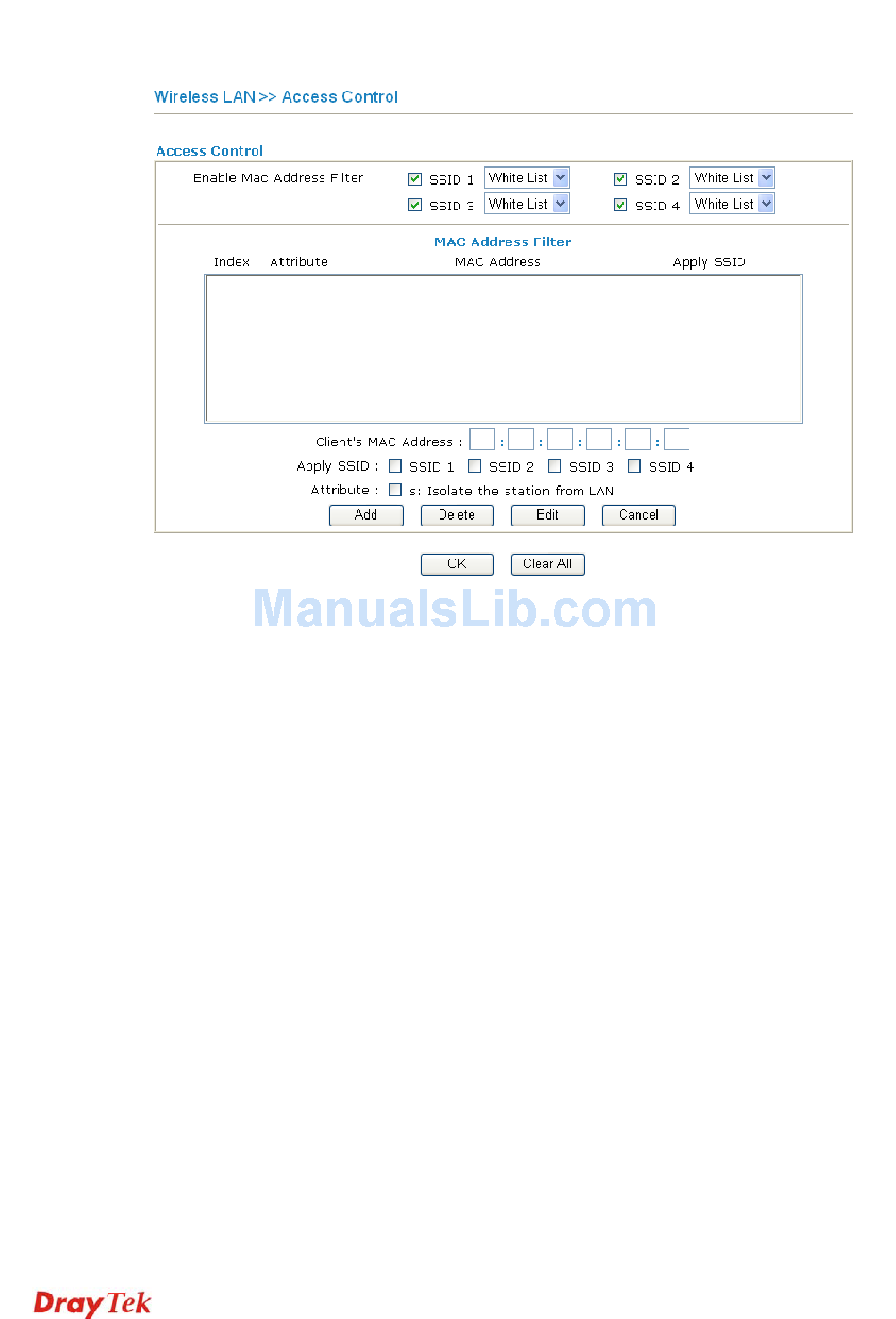

Draytek Vigor2710 Series User Manual page 259

Enable Mac Address
Filter
MAC Address Filter
Client's MAC Address
Apply SSID
Attribute
Add
Delete
Edit
Cancel
OK
Clear All
Select to enable the MAC Address filter for wireless LAN
identified with SSID 1 to 4 respectively. All the clients
(expressed by MAC addresses) listed in the box can be grouped
under different wireless LAN. For example, they can be
grouped under SSID 1 and SSID 2 at the same time if you check
SSID 1 and SSID 2.
Display all MAC addresses that are edited before.
Manually enter the MAC address of wireless client.
After entering the client's MAC address, check the box of the
SSIDs desired to insert this MAC address into their access
control list.
s: Isolate the station from LAN - select to isolate the wireless
connection of the wireless client of the MAC address from
LAN.
Add a new MAC address into the list.
Delete the selected MAC address in the list.
Edit the selected MAC address in the list.
Give up the access control set up.
Click it to save the access control list.
Clean all entries in the MAC address list.
247
Vigor2710 Series User's Guide
