RIP Protocol Control
DHCP Server
Configuration
Vigor2710 Series User's Guide

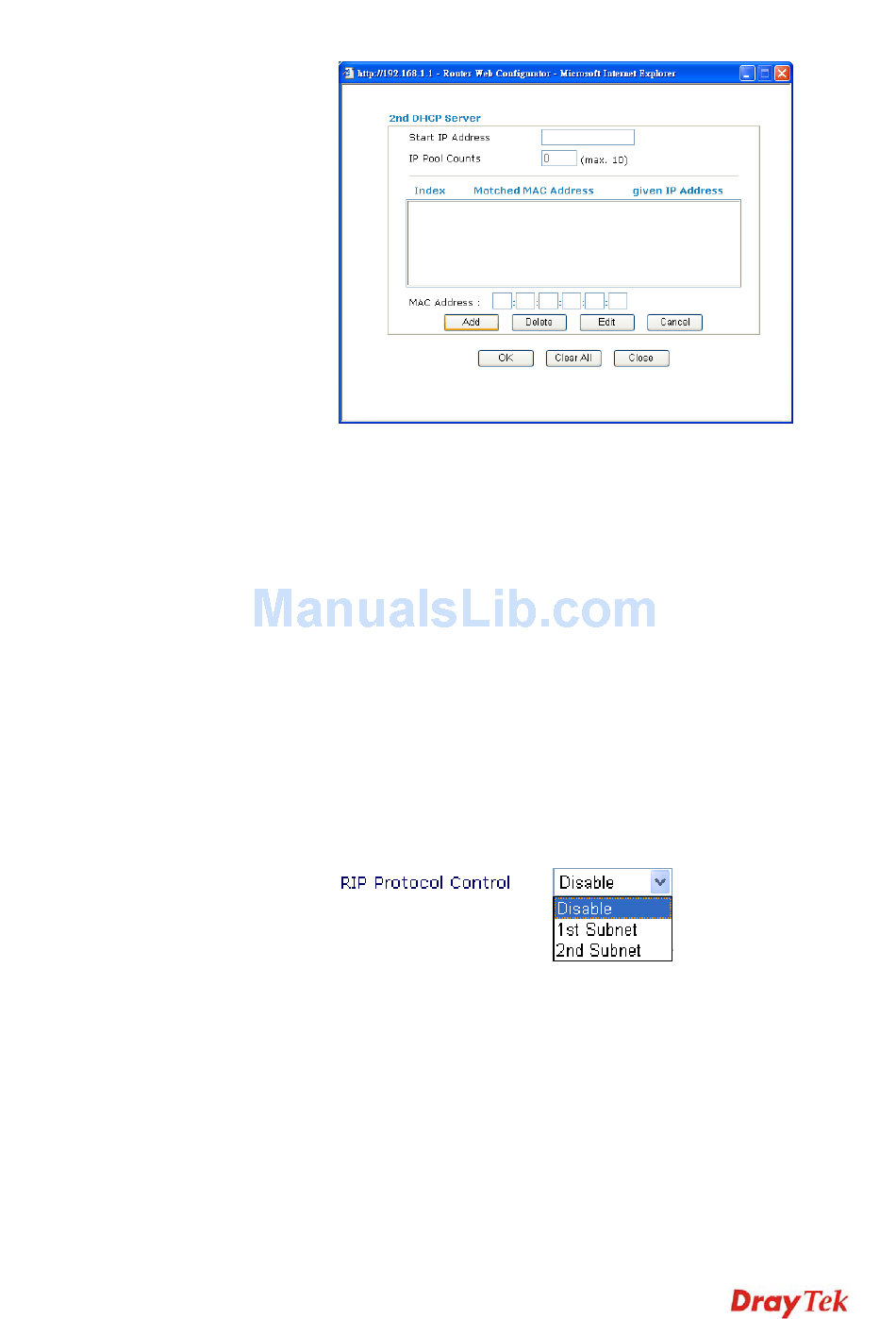

Start IP Address: Enter a value of the IP address pool for the
DHCP server to start with when issuing IP addresses. If the 2nd
IP address of your router is 220.135.240.1, the starting IP address
must be 220.135.240.2 or greater, but smaller than
220.135.240.254.
IP Pool Counts: Enter the number of IP addresses in the pool.
The maximum is 10. For example, if you type 3 and the 2nd IP
address of your router is 220.135.240.1, the range of IP address
by the DHCP server will be from 220.135.240.2 to
220.135.240.11.
MAC Address: Enter the MAC Address of the host one by one
and click Add to create a list of hosts to be assigned, deleted or
edited IP address from above pool. Set a list of MAC Address for
nd
2
DHCP server will help router to assign the correct IP address
of the correct subnet to the correct host. So those hosts in 2
subnet won't get an IP address belonging to 1
Disable deactivates the RIP protocol. It will lead to a stoppage of
the exchange of routing information between routers. (Default)
1st Subnet - Select the router to change the RIP information of
the 1st subnet with neighboring routers.
2nd Subnet - Select the router to change the RIP information of
the 2nd subnet with neighboring routers.
DHCP stands for Dynamic Host Configuration Protocol. The
router by factory default acts a DHCP server for your network so
it automatically dispatch related IP settings to any local user
configured as a DHCP client. It is highly recommended that you
leave the router enabled as a DHCP server if you do not have a
DHCP server for your network.
If you want to use another DHCP server in the network other
120
nd
st
subnet.
