G e n e r a l S e t u p f o r
G e n e r a l S e t u p f o r

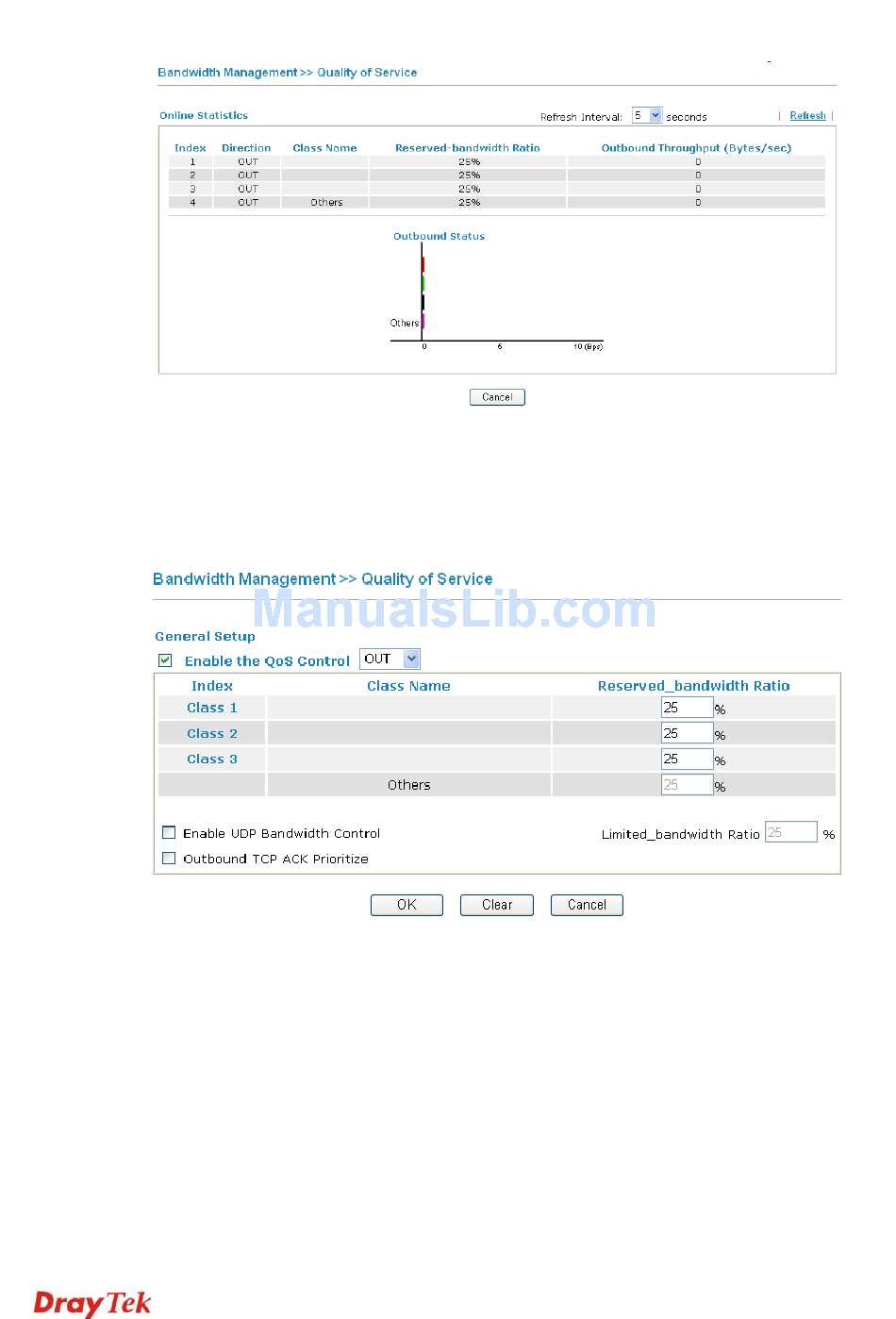

When you click Setup, you can configure the bandwidth ratio for QoS of the WAN interface.
There are four queues allowed for QoS control. The first three (Class 1 to Class 3) class rules
can be adjusted for your necessity. Yet, the last one is reserved for the packets which are not
suitable for the user-defined class rules.
Enable the QoS Control
Reserved Bandwidth
Ratio
W A N I n t e r f a c e
W A N I n t e r f a c e
The factory default for this setting is checked.
Please also define which traffic the QoS Control settings will
apply to.
IN- apply to incoming traffic only.
OUT-apply to outgoing traffic only.
BOTH- apply to both incoming and outgoing traffic.
Check this box and click OK, then click Setup link again.
You will see the Online Statistics link appearing on this
page.
It is reserved for the group index in the form of ratio of
reserved bandwidth to upstream speed and reserved
