Draytek Vigor2710 Series User Manual page 118

IP Address From ISP
After finishing all the settings here, please click OK to activate them.
Vigor2710 Series User's Guide
is selected in WAN>> General Setup page.
Usually ISP dynamically assigns IP address to you each time you
connect to it and request. In some case, your ISP provides service
to always assign you the same IP address whenever you request.
In this case, you can fill in this IP address in the Fixed IP field.
Please contact your ISP before you want to use this function.

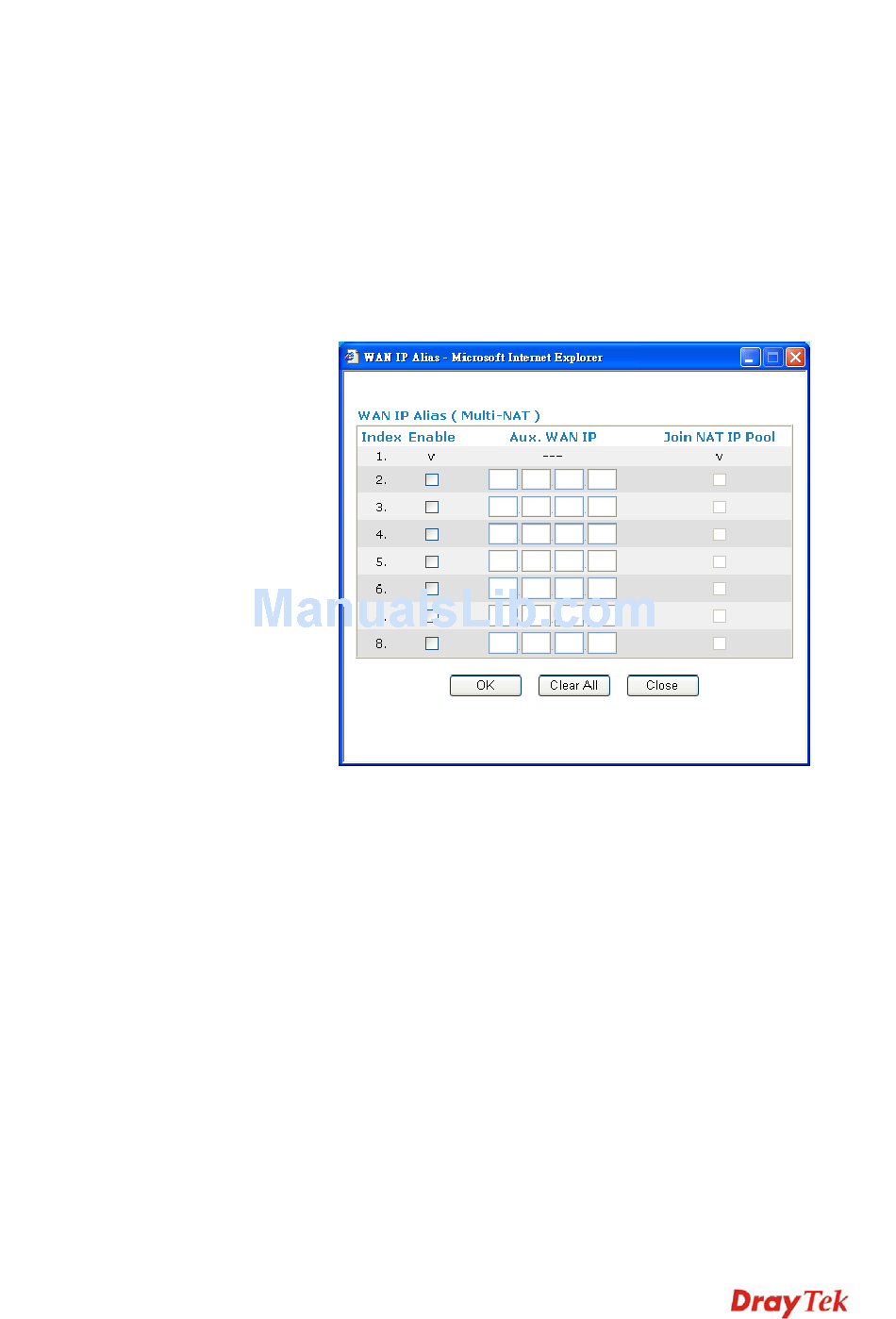

WAN IP Alias - If you have multiple public IP addresses and
would like to utilize them on the WAN interface, please use
WAN IP Alias. You can set up to 8 public IP addresses other than
the current one you are using. Notice that this setting is available
for WAN1 only. Type the additional WAN IP address and check
the Enable box. Then click OK to exit the dialog.
Fixed IP – Click Yes to use this function and type in a fixed IP
address in the box of Fixed IP Address.
Default MAC Address
Address or specify another MAC address by typing on the boxes
of MAC Address for the router.
Specify a MAC Address – Type the MAC address for the router
manually.
Index (1-15) in Schedule Setup - You can type in four sets of
time schedule for your request. All the schedules can be set
previously in Applications – Schedule web page and you can use
the number that you have set in that web page.
106
– You can use Default MAC
