Draytek Vigor2710 Series User Manual page 49

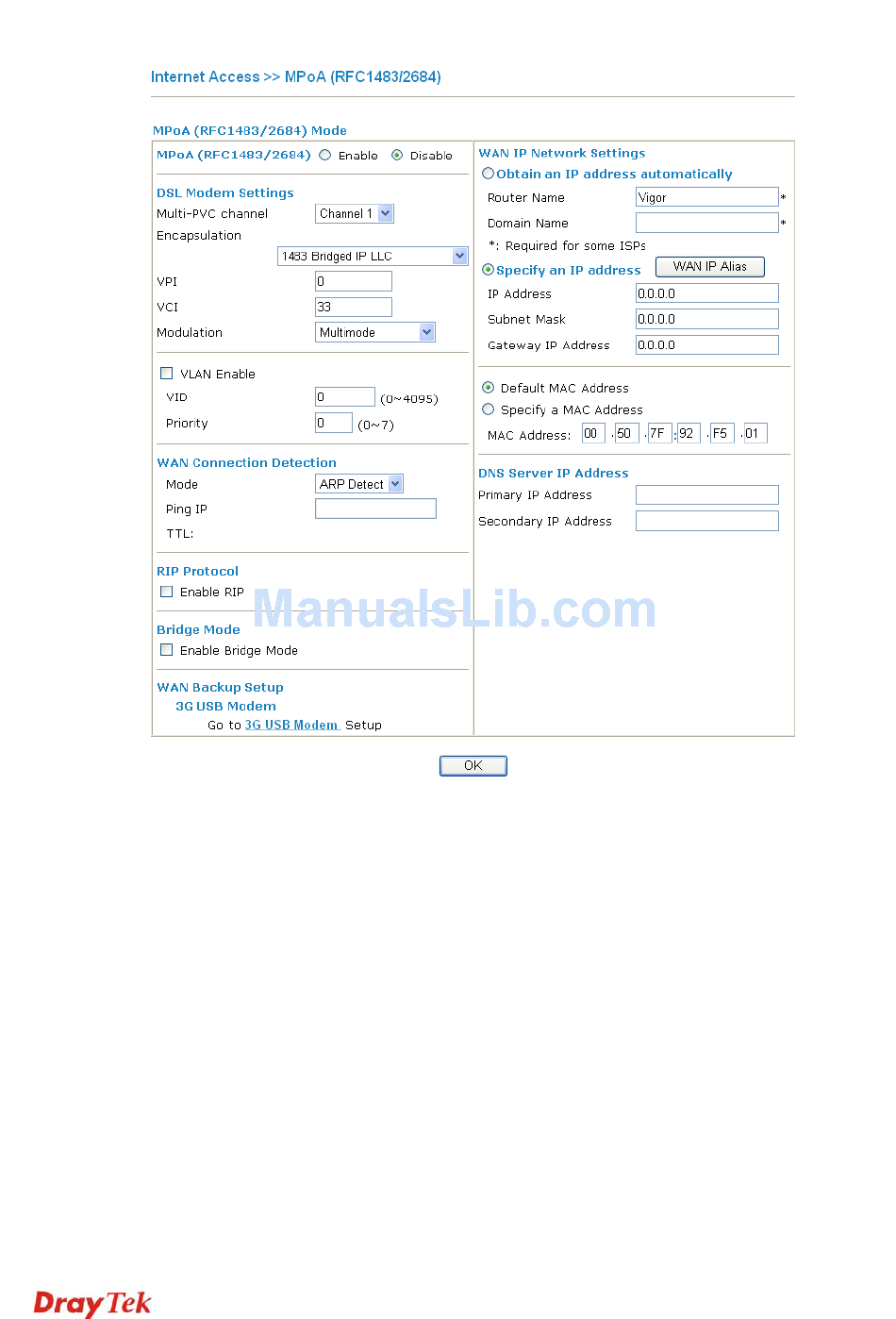

MPoA
(RFC1483/2684)
DSL Modem Settings
Click Enable for activating this function. If you click Disable,
this function will be closed and all the settings that you adjusted
in this page will be invalid.
Set up the DSL parameters required by your ISP. These are vital
for building DSL connection to your ISP.
Multi-PVC channel - The selections displayed here are
determined by the page of Internet Access – Multi PVCs. Select
M-PVCs Channel means no selection will be chosen.
Encapsulating Type - Drop down the list to choose the type
provided by ISP.
VPI - Type in the value provided by ISP.
VCI - Type in the value provided by ISP.
Modulation – Drop down the list to choose a proper modulation
for the router.
VLAN Enable - Enable the function of VLAN with tag. The
router will add specific VLAN number to all packets while
sending them out. Please type the tag value and specify the
37
Vigor2710 Series User's Guide
