Draytek Vigor2710 Series User Manual page 165

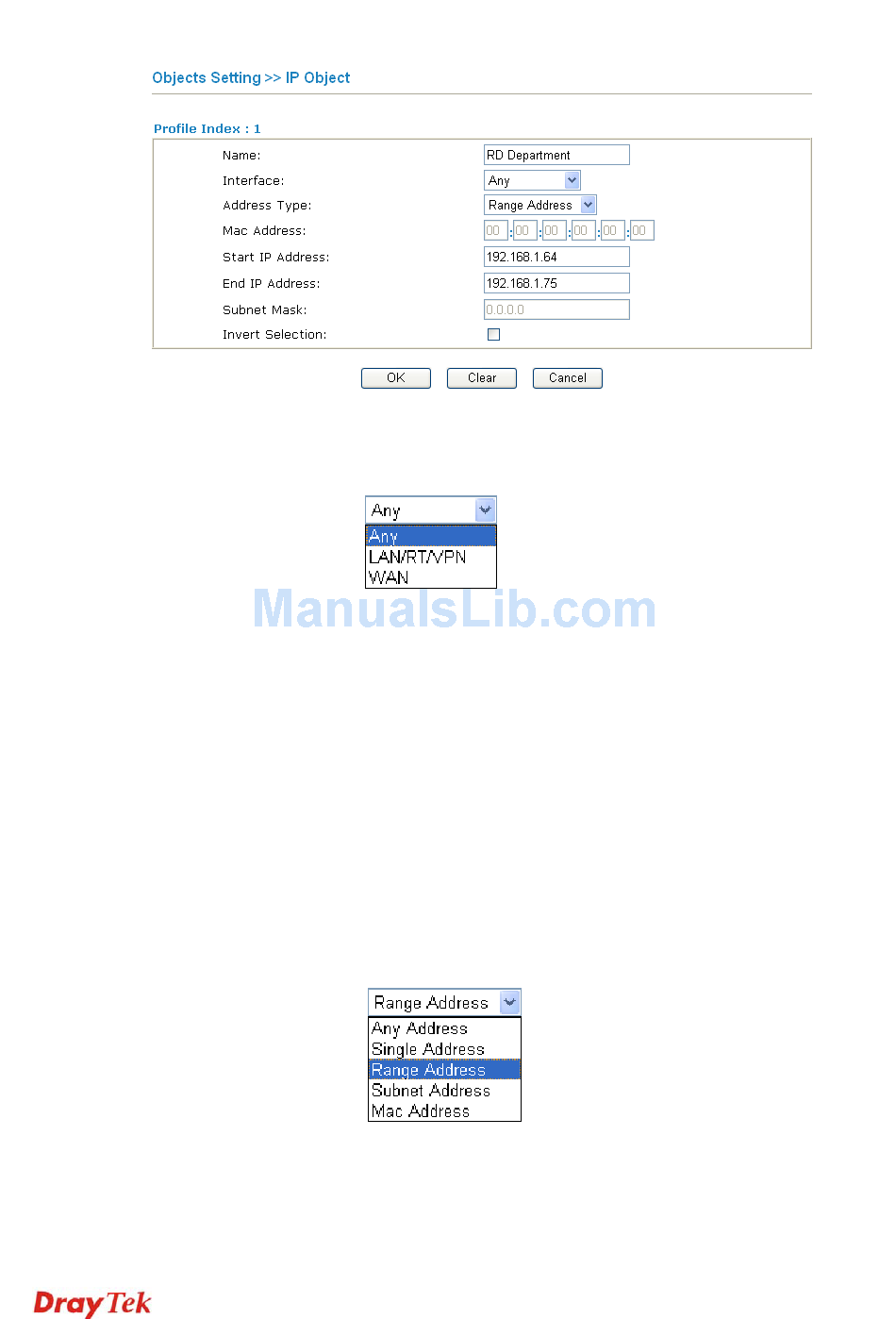

Name
Interface
Address Type
MAC Address
Start IP Address
End IP Address
Type a name for this profile. Maximum 15 characters are
allowed.
Choose a proper interface.
For example, the Direction setting in Edit Filter Rule will
ask you specify IP or IP range for WAN or LAN or any IP
address. If you choose LAN as the Interface here, and choose
LAN as the direction setting in Edit Filter Rule, then all the
IP addresses specified with LAN interface will be opened for
you to choose in Edit Filter Rule page.
Determine the address type for the IP address.
Select Single Address if this object contains one IP address
only.
Select Range Address if this object contains several IPs
within a range.
Select Subnet Address if this object contains one subnet for
IP address.
Select Any Address if this object contains any IP address.
Select Mac Address if this object contains Mac address.
Type the MAC address of the network card which will be
controlled.
Type the start IP address for Single Address type.
Type the end IP address if the Range Address type is selected.
