4 . 1 . 3 M u l t i - P V C s
4 . 1 . 3 M u l t i - P V C s

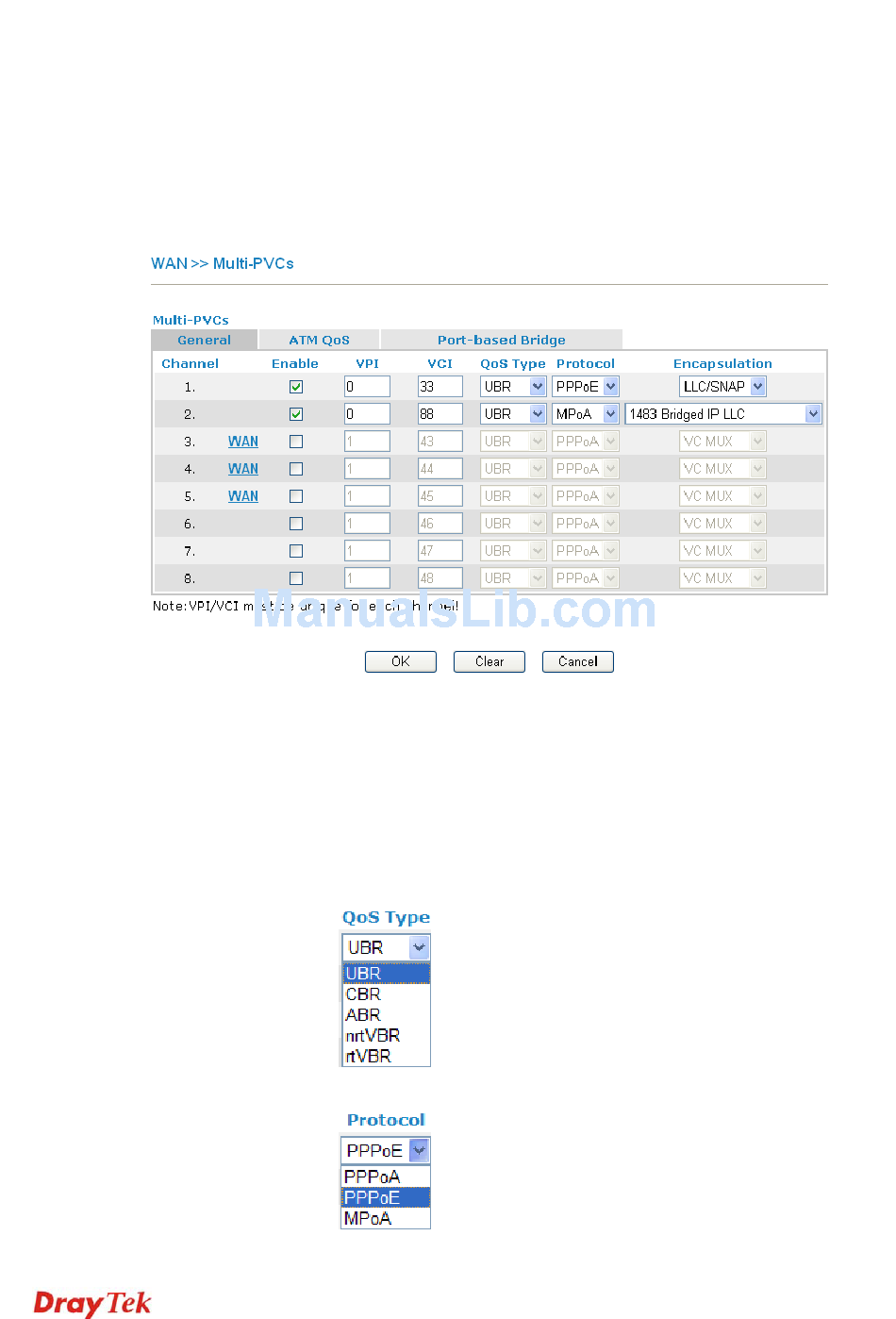

This router allows you to create multi-PVCs for different data transferring for using. Simply
go to Internet Access and select Multi-PVC Setup page.
G e n e r a l
G e n e r a l
The system allows you to set up to eight channels which are ready for choosing as the first
PVC line that will be used as multi-PVCs.
Enable
VPI
VCI
QoS Type
Protocol
Check this box to enable that channel. The channels that you
enabled here will be shown in the Multi-PVC channel drop
down list on the web page of Internet Access. Though you can
enable eight channels in this page, yet only one channel can be
chosen on the web page of Internet Access.
Type in the value provided by your ISP.
Type in the value provided by your ISP.
Select a proper QoS type for the channel.
Select a proper protocol for this channel.
