Security
WEP
Pre-shared Key
Bridge
Repeater
Access Point Function
Status
4 . 1 2 . 7 A d v a n c e d
4 . 1 2 . 7 A d v a n c e d

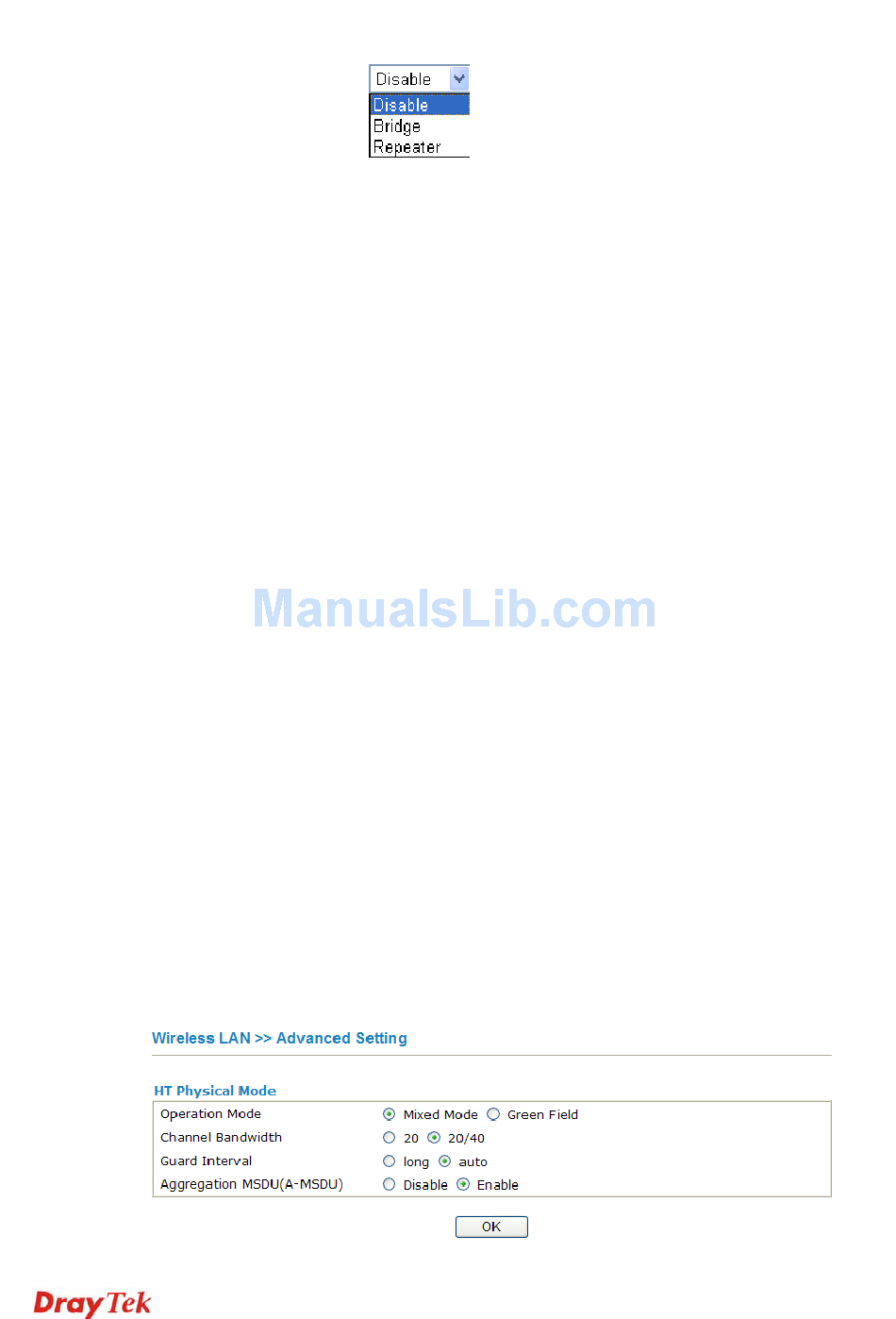

This page allows users to set advanced settings such as operation mode, channel bandwidth,
guard interval, and aggregation MSDU for wireless data transmission.
There are three types for security, Disable, WEP and
Pre-shared key. The setting you choose here will make the
following WEP or Pre-shared key field valid or not. Choose one
of the types for the router.
Check this box to use the same key set in Security Settings
page. If you did not set any key in Security Settings page, this
check box will be dimmed.
Type – There are several types for you to choose. Default
setting is DrayTek WPA. WPA and WPA2 are used for WDS
devices (e.g., AP700). For example, if you have a
wireless AP and a Vigor2830n wireless router, you can set the
encryption mode as WPA or WPA2 to establish your WDS
system between AP and the router.
Key - Type 8 ~ 63 ASCII characters or 64 hexadecimal digits
leading by "0x".
If you choose Bridge as the connecting mode, please type in the
peer MAC address in these fields. Four peer MAC addresses are
allowed to be entered in this page at one time. Yet please
disable the unused link to get better performance. If you want to
invoke the peer MAC address, remember to check Enable box
in the front of the MAC address after typing.
If you choose Repeater as the connecting mode, please type in
the peer MAC address in these fields. Four peer MAC addresses
are allowed to be entered in this page at one time. Similarly, if
you want to invoke the peer MAC address, remember to check
Enable box in the front of the MAC address after typing.
Click Enable to make this router serving as an access point;
click Disable to cancel this function.
It allows user to send "hello" message to peers. Yet, it is valid
only when the peer also supports this function.
S e t t i n g
S e t t i n g
