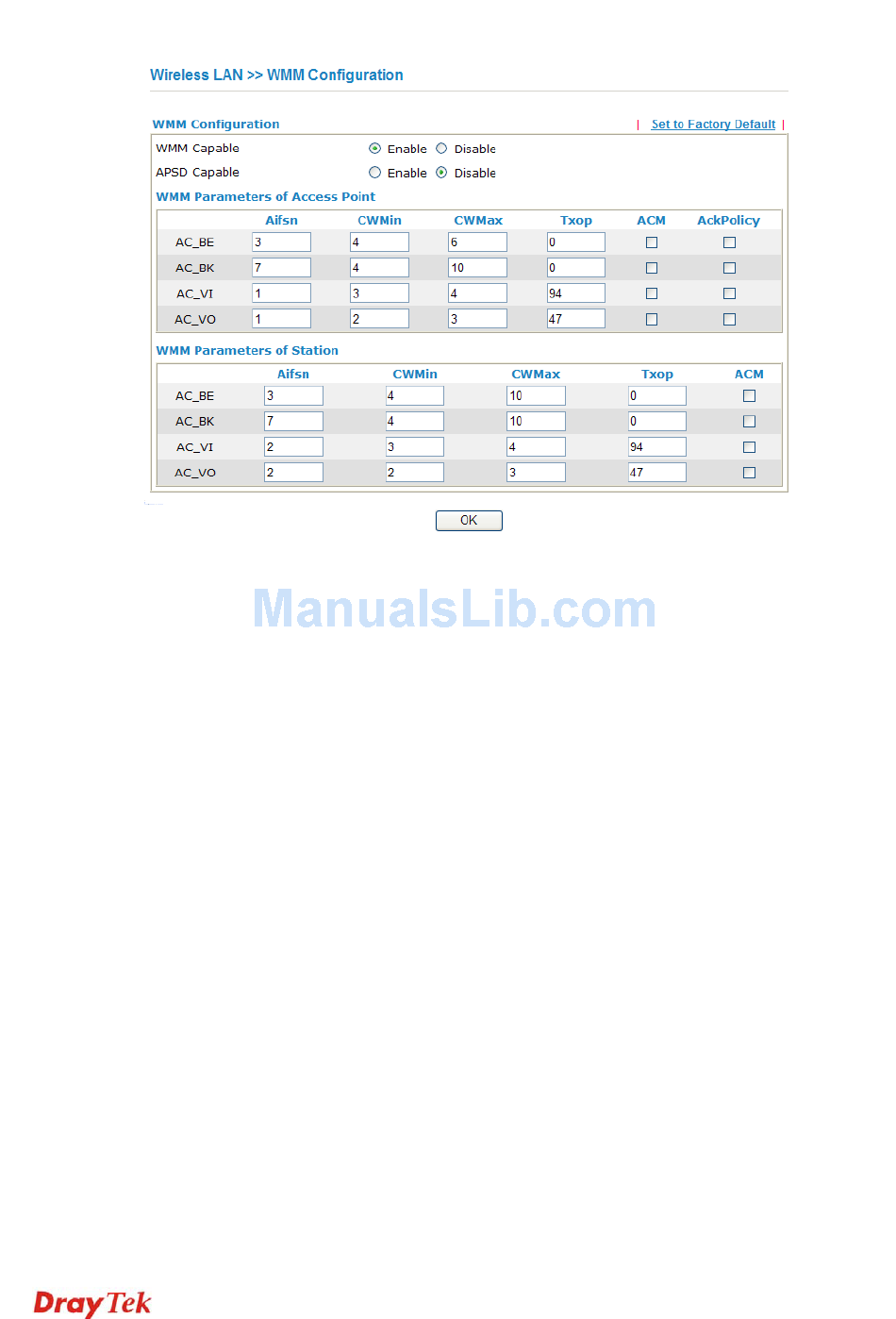

WMM Capable
APSD Capable
Aifsn
CWMin/CWMax
Txop
ACM
To apply WMM parameters for wireless data transmission,
please click the Enable radio button.
The default setting is Disable.
It controls how long the client waits for each data transmission.
Please specify the value ranging from 1 to 15. Such parameter
will influence the time delay for WMM accessing categories.
For the service of voice or video image, please set small value
for AC_VI and AC_VO categories For the service of e-mail or
web browsing, please set large value for AC_BE and AC_BK
categories.
CWMin means contention Window-Min and CWMax means
contention Window-Max. Please specify the value ranging from
1 to 15. Be aware that CWMax value must be greater than
CWMin or equals to CWMin value. Both values will influence
the time delay for WMM accessing categories. The difference
between AC_VI and AC_VO categories must be smaller;
however, the difference between AC_BE and AC_BK
categories must be greater.
It means transmission opportunity. For WMM categories of
AC_VI and AC_VO that need higher priorities in data
transmission, please set greater value for them to get highest
transmission opportunity. Specify the value ranging from 0 to
65535.
It is an abbreviation of Admission control Mandatory. It can
restrict stations from using specific category class if it is
checked.
Note: Vigor2830 provides standard WMM configuration in the
web page. If you want to modify the parameters, please refer to
the Wi-Fi WMM standard specification.
