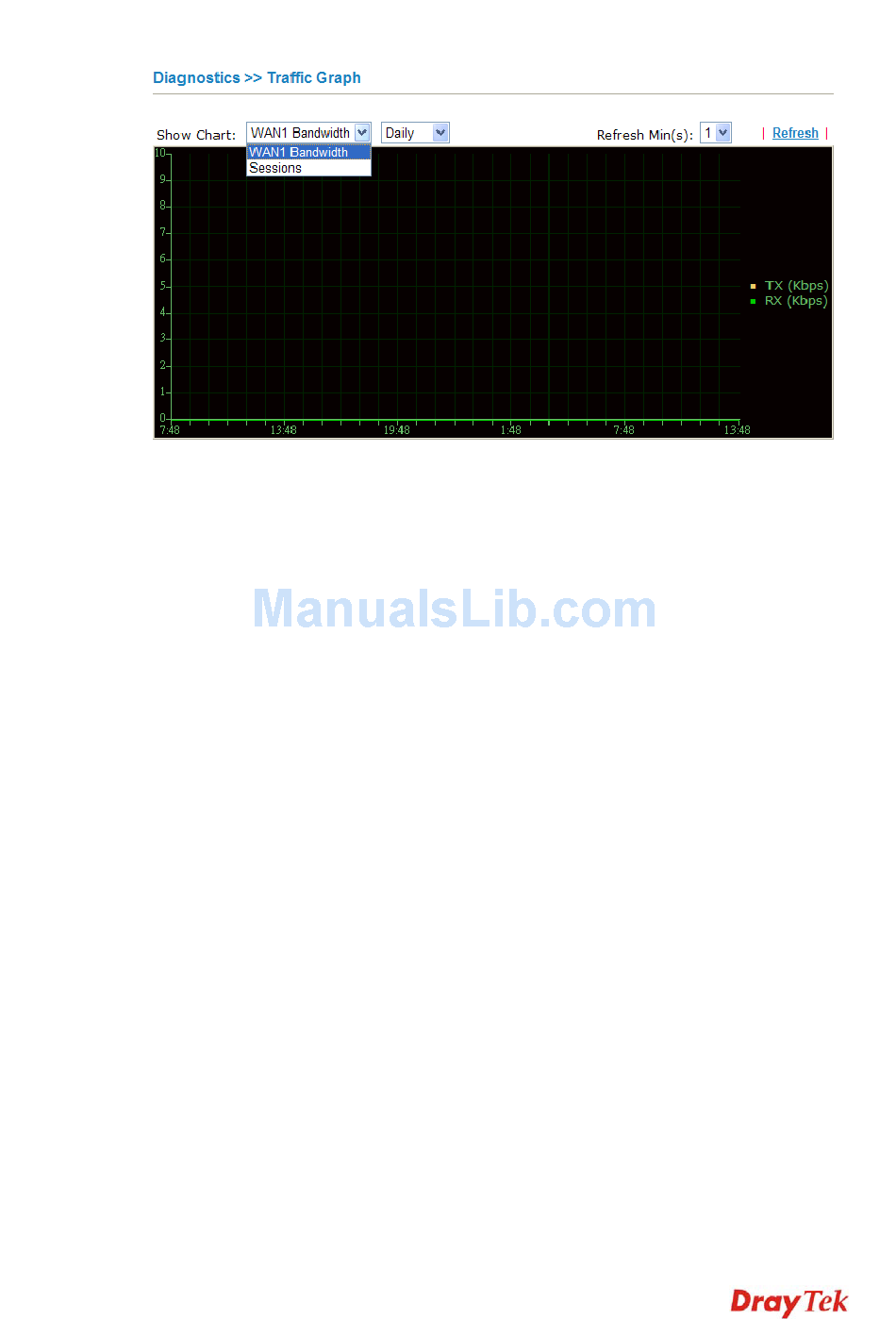

The horizontal axis represents time. Yet the vertical axis has different meanings. For WAN1
Bandwidth chart, the numbers displayed on vertical axis represent the numbers of the
transmitted and received packets in the past.
For Sessions chart, the numbers displayed on vertical axis represent the numbers of the NAT
sessions during the past.
Vigor2710 Series User's Guide
282
