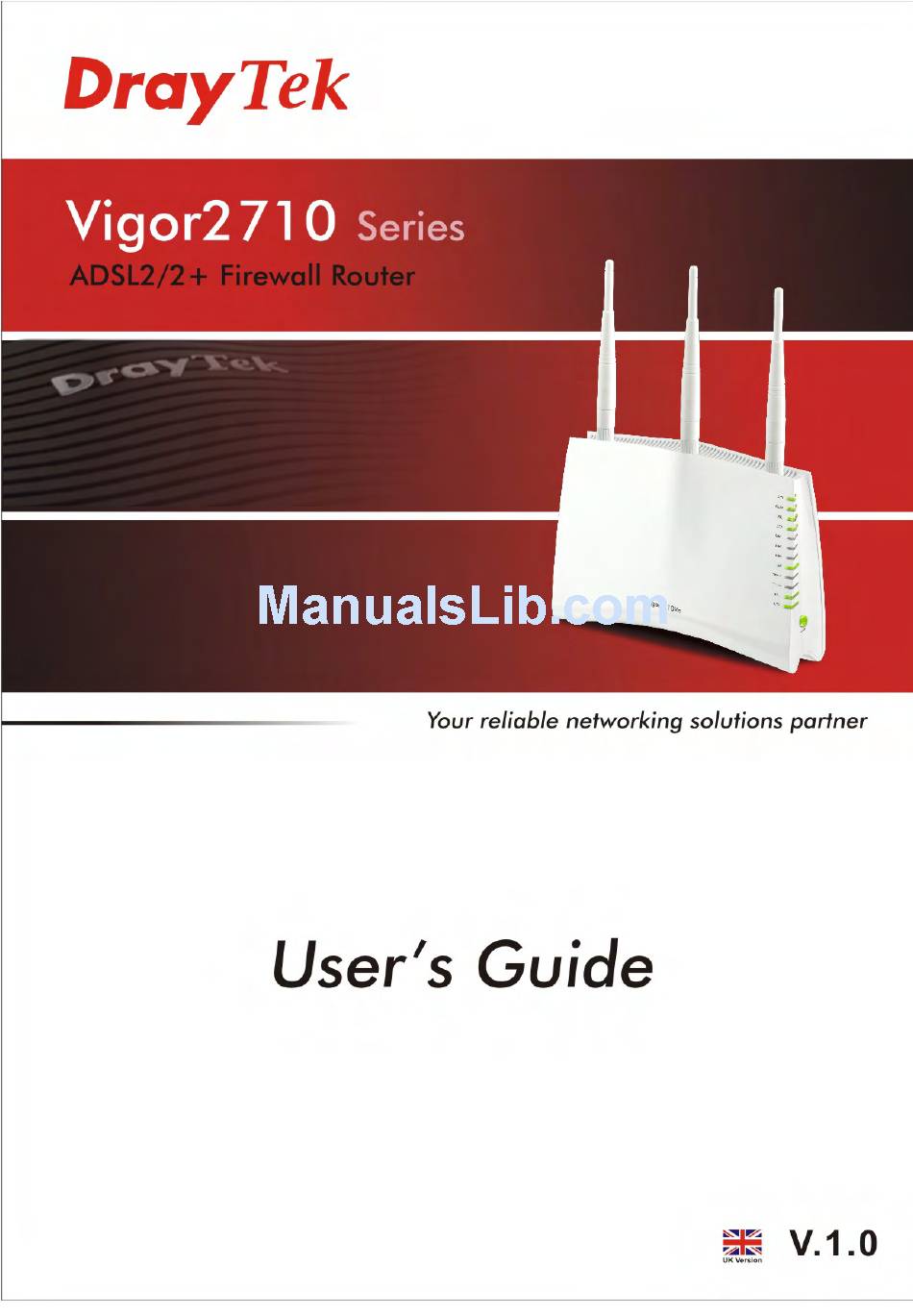

Page 1 Vigor2710 Series User’s Guide...
Page 2: User Guide
Vigor2710 Series ADSL2/2+ Firewall Router User Guide Version: 1.0(UK) Date: 20/04/2009 Vigor2710 Series User’s Guide...
Page 3: Copyright Information
Please consult the DrayTek UK web site for more information on newest firmware, tools and documents. Please also check the UK web site for the full product specification and accessories as this can vary depending on your locality/market. http://www.draytek.co.uk Vigor2710 Series User’s Guide...
Page 4: European Community Declarations
Product: Vigor2710 Series Router DrayTek Corp. declares that Vigor2710 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.
Page 5: Table Of Contents
3.3.3 Open Ports........................35 3.4 Applications ........................... 36 3.4.1 Dynamic DNS ......................... 36 3.4.2 UPnP..........................39 3.5 VoIP............................40 3.5.1 DialPlan .......................... 42 3.5.2 SIP Accounts ........................50 3.5.3 Phone Settings ....................... 54 3.5.4 Status..........................59 Vigor2710 Series User’s Guide...
Page 6 4.5.5 Keyword Object ......................115 4.5.6 Keyword Group......................116 4.5.7 File Extension Object....................117 4.5.8 IM Object ........................119 4.5.9 P2P Object........................120 4.5.9 P2P Object........................120 4.5.10 Misc Object ......................... 121 4.6 CSM Profile ......................... 122 Vigor2710 Series User’s Guide...
Page 7 4.14 Diagnostics........................198 4.14.1 Dial-out Trigger ......................198 4.14.2 Routing Table ......................199 4.14.3 ARP Cache Table ....................... 199 4.14.4 DHCP Table........................ 200 4.14.5 NAT Sessions Table ....................201 4.14.6 Data Flow Monitor....................... 202 4.14.7 Traffic Graph....................... 203 Vigor2710 Series User’s Guide...
Page 8 6.2 Checking the Network Connection Settings on Your Computer ......... 220 6.3 Pinging the Router from Your Computer ................222 6.4 Check Online Status Page ....................223 6.5 Resetting the Router to Factory Default Settings ............... 223 6.6 Technical Support........................ 224 viii Vigor2710 Series User’s Guide...
Page 9: Preface
The two phones can be used independently and simultaneously for both incoming and outgoing calls. In addition, Vigor2710 series supports USB interface for connecting USB printer to share printer or USB storage device for sharing files. Vigor2710 series also provide two-level administration to control the manageability of the router based on administrative rights.
Page 10: Led Indicators And Connectors
>>General Setup. (Such profile must be established under CSM menu) Interface Description Connecter for accessing the Internet through ADSL2/2+. LAN (1-4) Connecters for local networked devices. Connecter for USB storage device (Pen Driver/Mobile HD) or printer. Vigor2710 Series User’s Guide...
Page 11 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration. Connecter for a power adapter. Power Switch. ON/OFF Vigor2710 Series User’s Guide...
Page 12: For Vigor2710N
Press the button once to enable (WLAN LED on) or WLAN disable (WLAN LED off) wireless connection. Connecter for accessing the Internet through ADSL2/2+. LAN (1-4) Connecters for local networked devices. Connecter for USB storage (Pen Driver Mobile/HD) or printer. Vigor2710 Series User’s Guide...
Page 13 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration. Connecter for a power adapter. Power Switch. ON/OFF Vigor2710 Series User’s Guide...
Page 14: For Vigor2710Vn
Press the button once to enable (WLAN LED on) or WLAN disable (WLAN LED off) wireless connection. Connecter for accessing the Internet through ADSL2/2+. LAN (1-4) Connecters for local networked devices. Connecter for USB storage (Pen Driver Mobile/HD) or printer. Vigor2710 Series User’s Guide...
Page 15 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration. Connecter for a power adapter. Power Switch. ON/OFF Vigor2710 Series User’s Guide...
Page 16: Hardware Installation
Power on the device by pressing down the power switch on the rear panel. The system starts to initiate. After completing the system test, the ACT LED will light up and start blinking. (For the detailed information of LED status, please refer to section 1.2.) Vigor2710 Series User’s Guide...
Page 17: Printer Installation
Before using it, please follow the steps below to configure settings for connected computers (or wireless clients). Connect the printer with the router through USB/parallel port. Open Start->Settings-> Printer and Faxes. Open File->Add a New Computer. A welcome dialog will appear. Please click Next. Vigor2710 Series User’s Guide...
Page 18 Click Local printer attached to this computer and click Next. In this dialog, choose Create a new port Type of port and use the drop down list to select Standard TCP/IP Port. Click Next. Vigor2710 Series User’s Guide...
Page 19 In the following dialog, type 192.168.1.1 (router’s LAN IP) in the field of Printer Name or IP Address and type IP_192.168.1.1 as the port name. Then, click Next. Click Standard and choose Generic Network Card. Then, in the following dialog, click Finish. Vigor2710 Series User’s Guide...
Page 20 11. Select "LPR" on Protocol, type p1 (number 1) as Queue Name. Then click OK. Next please refer to the red rectangle for choosing the correct protocol and UPR name. Vigor2710 Series User’s Guide...
Page 21 Open Support >FAQ; find out the link of Printer Server and click it; then click the What types of printers are compatible with Vigor router? link. Note 2: Vigor router supports printing request from computers via LAN ports but not WAN port. Vigor2710 Series User’s Guide...
Page 22 This page is left blank. Vigor2710 Series User’s Guide...
Page 23: Configuring Basic Settings
The web page can be logged out according to the chosen condition. The default setting is Auto Logout, which means the web configuration system will logout after 5 minutes without any operation. Change the setting for your necessity. Vigor2710 Series User’s Guide...
Page 24: Changing Password
Otherwise, do not type any word (both username and password are Null for user operation) on the window and click Login on the window. Now, the Main Screen will appear. Main screen for admin mode operation (full configuration) Vigor2710 Series User’s Guide...
Page 25 Enter the login password (the default is blank) on the field of Old Password. Type New Password. Then click OK to continue. Now, the password has been changed. Next time, use the new password to access the Web Configurator for this router. Vigor2710 Series User’s Guide...
Page 26: Configuring Router For Internet Connectivity
Note: The web page for Internet Access will change according to the mode (user/admin) operation you choose. Check if the Enable option is selected. Check if Username and Password are entered with correct values that you got from your ISP. Vigor2710 Series User’s Guide...
Page 27 Check if the Enable option is selected. Check if DSL Modem Settings is set appropriately. Check if IP Address, Subnet Mask and Gateway are set correctly (must identify with the values from your ISP) if you choose Specify an IP address. Vigor2710 Series User’s Guide...
Page 28: Online Status
If you select PPPoE/PPPoA as the protocol, you will find out a link of Dial PPPoE or Drop PPPoE in the Online Status web page. Online status for PPPoE Online status for Static IP Vigor2710 Series User’s Guide...
Page 29 Note: The words in green mean that the WAN connection of that interface (WAN1) is ready for accessing Internet; the words in red mean that the WAN connection of that interface (WAN1) is not ready for accessing Internet. Vigor2710 Series User’s Guide...
Page 30: Saving Configuration
Each time you click OK on the web page for saving the configuration, you can find messages showing the system interaction with you. Ready indicates the system is ready for you to input settings. Settings Saved means your settings are saved once you click Finish or OK button. Vigor2710 Series User’s Guide...
Page 31: User Mode Operation
NIC has reserved certain addresses that will never be registered publicly. These are known as private IP addresses, and are listed in the following ranges: From 10.0.0.0 to 10.255.255.255 From 172.16.0.0 to 172.31.255.255 From 192.168.0.0 to 192.168.255.255 Vigor2710 Series User’s Guide...
Page 32: Pppoe/Pppoa
ADSL loop and your ISP’s Digital Subscriber Line Access Multiplexer (DSLAM). To choose PPPoE or PPPoA as the accessing protocol of the internet, please select PPPoE/PPPoA from the Internet Access menu. The following web page will be shown. Vigor2710 Series User’s Guide...
Page 33 Host PC) to access into Internet. ISP Access Setup Enter your allocated username, password and authentication parameters according to the information provided by your ISP. If you want to connect to Internet all the time, you can check Always Vigor2710 Series User’s Guide...
Page 34: Mpoa
Ethernet, or TCP/IP protocols. The goal of MPoA is to allow different LANs to send packets to each other via an ATM backbone. To use MPoA as the accessing protocol of the Internet, select MPoA mode. The following web page will appear. Vigor2710 Series User’s Guide...
Page 35 Router Name – Type in the router name provided by ISP. Domain Name – Type in the domain name that you have assigned. Specify an IP address – Click this radio button to specify some data. IP Address – Type in the private IP address. Vigor2710 Series User’s Guide...
Page 36: Lan
IP address to private IP address to forward the right packets to the right host and vice versa. Besides, Vigor router has a built-in DHCP server that assigns private IP address to each local host. See the following diagram for a briefly understanding. Vigor2710 Series User’s Guide...
Page 37: General Setup
DHCP server to assign IP addresses to. The default is 50 and the maximum is 253. Gateway IP Address - Enter a value of the gateway IP address for the DHCP server. The value is usually as same as the 1st IP address Vigor2710 Series User’s Guide...
Page 38: Nat
IP address and the router will do the inversion based on its table. Therefore, the internal host can communicate with external host smoothly. The benefit of the NAT includes: Vigor2710 Series User’s Guide...
Page 39: Port Redirection
The port redirection can only apply to incoming traffic. To use this function, please go to NAT page and choose Port Redirection web page. The Port Redirection Table provides 20 port-mapping entries for the internal hosts. Vigor2710 Series User’s Guide...
Page 40 If you choose Range as the port redirection mode, you will see two boxes on this field. Type a complete IP address in the first box (as the starting point) and the fourth digits in the second box (as the end point). Vigor2710 Series User’s Guide...
Page 41: Dmz Host
Netmeeting or Internet Games etc. The inherent security properties of NAT are somewhat bypassed if you set up DMZ host. We suggest you to add additional filter rules or a secondary firewall. Click DMZ Host to open the following page: Vigor2710 Series User’s Guide...
Page 42 LAN network. Select one private IP address in the list to be the DMZ host. After you have selected one private IP from the above dialog, click OK to save the setting. Vigor2710 Series User’s Guide...
Page 43: Open Ports
Inactive or Active state. To add or edit port settings, click one index number on the page. The index entry setup page will pop up. In each index entry, you can specify 10 port ranges for diverse services. Vigor2710 Series User’s Guide...
Page 44: Applications
Before you use the Dynamic DNS feature, you have to apply for free DDNS service to the DDNS service providers. The router provides up to three accounts from three different DDNS service providers. Basically, Vigor routers are compatible with the DDNS services Vigor2710 Series User’s Guide...
Page 45 Select Index number 1 to add an account for the router. Check Enable Dynamic DNS Account, and choose correct Service Provider: dyndns.org, type the registered hostname: hostname and domain name suffix: dyndns.org in the Domain Name block. Vigor2710 Series User’s Guide...
Page 46 Delete a Dynamic DNS Account In the DDNS setup menu, click the Index number you want to delete and then push Clear All button to delete the account. Vigor2710 Series User’s Guide...
Page 47: Upnp
NAT router. The application will also learn the external IP address and configure port mappings on the router. Subsequently, such a facility forwards packets from the external ports of the router to the internal ports used by the application. Vigor2710 Series User’s Guide...
Page 48: Voip
“userinfo” includes the user field, the password field and the @ sign following them. This is very similar to a URL so some may call it “SIP URL”. SIP supports peer-to-peer direct calling and also calling via a SIP proxy server (a role similar to the gatekeeper in H.323 Vigor2710 Series User’s Guide...
Page 49 Before calling, you have to know your friend’s IP Address. The Vigor VoIP Routers will build connection between each other. Our Vigor V models firstly apply efficient codecs designed to make the best use of available bandwidth, but Vigor V models also equip with automatic QoS assurance. Vigor2710 Series User’s Guide...
Page 50: Dialplan
SIP addresses. Loop through and Backup Phone Number will be displayed if you are using Vigor 2710Vn for setting the phone book. Vigor2710 Series User’s Guide...
Page 51 Dial Out Account Choose one of the SIP accounts for this profile to dial out. It is useful for both sides (caller and callee) that registered to different SIP Registrar servers. If caller and callee do not use Vigor2710 Series User’s Guide...
Page 52 And when the VoIP phone is switched into the PSTN phone, the telecom co. might charge you for the connection fee. Please type in backup phone number (PSTN number) for this VoIP phone setting. Vigor2710 Series User’s Guide...
Page 53 Setup web page) as an example, the OP number of 886 will be deleted completely for the prefix number is set with 886. Replace - When you choose this mode, the OP number will be replaced by the prefix number for calling out through the Vigor2710 Series User’s Guide...
Page 54 SIP accounts. Please set up one SIP account first to make this interface available. Call barring is used to block phone calls coming from the one that is not welcomed. Click any index number to display the dial plan setup page. Vigor2710 Series User’s Guide...
Page 55 For Block Anonymous – this function can block the incoming calls without caller ID on the interface (Phone port) specified in the following window. Such control also can be done based on preconfigured schedules. Vigor2710 Series User’s Guide...
Page 56 This page allows you to process incoming or outgoing phone calls by regional. Default values (common used in most areas) will be shown on this web page. You can change the number based on the region that the router is placed. Vigor2710 Series User’s Guide...
Page 57 [Deact] Block IP Calls [Act] Dial the number typed in this filed to block all the incoming calls from IP address. Block IP Calls [Deact] Dial the number typed in this field to release this function. Vigor2710 Series User’s Guide...
Page 58: Sip Accounts
SIP Address as in Account Name@ Domain name As Vigor VoIP Router is turned on, it will first register with Registrar using AuthorizationUser@Domain/Realm. After that, your call will be bypassed by SIP Proxy to the destination using AccountName@Domain/Realm as identity. Vigor2710 Series User’s Guide...
Page 59 The default value is 150 (sec). It is useful for a Nortel server NAT Traversal Support. Status Show the status for the corresponding SIP account. R means such account is registered on SIP server successfully. – means the account is failed to register on SIP server. Vigor2710 Series User’s Guide...
Page 60 Check this box to make the proxy acting as outbound proxy. Display Name The caller-ID that you want to be displayed on your friend’s screen. Account Number/Name Enter your account name of SIP Address, e.g. every text before @. Vigor2710 Series User’s Guide...
Page 61 Nortel – If the soft-switch that you use supports Nortel solution, you can choose this option. Ring Port Set Phone1 or Phone2 as the default ring port for this SIP account. Ring Pattern Choose a ring tone type for the VoIP phone call. Vigor2710 Series User’s Guide...
Page 62: Phone Settings
Dynamic RTP Port Start - Specifies the start port for RTP stream. The default value is 10050. Dynamic RTP Port End - Specifies the end port for RTP stream. The default value is 15000. RTP TOS – It decides the level of VoIP package. Use the Vigor2710 Series User’s Guide...
Page 63 SIP URL without any reason. Busy means the incoming calls will be forwarded into SIP URL only when the local system is busy. No Answer means if the incoming calls do not receive any response, they will be Vigor2710 Series User’s Guide...
Page 64 Single Codec – If the box is checked, only the selected Codec will be applied. Packet Size-The amount of data contained in a single packet. The default value is 20 ms, which means the data packet will contain 20 ms voice information. Vigor2710 Series User’s Guide...
Page 65 Congestion tone will be shown automatically on the page. If you cannot find out a suitable one, please choose User Defined and fill out the corresponding values for dial tone, ringing tone, busy tone, congestion tone by yourself for Vigor2710 Series User’s Guide...
Page 66 SIP INFO- Choose this one then the Vigor will capture the DTMF tone and transfer it into SIP form. Then it will be sent to the remote end with SIP message. Payload Type (rfc2833) - Choose a number from 96 to 127, Vigor2710 Series User’s Guide...
Page 67: Status
ACTIVE-Indicates that the VoIP connection is launched. Codec Indicates the voice codec employed by present channel. PeerID The present in-call or out-call peer ID (the format may be IP or Domain). Elapse The format is represented as hours:minutes:seconds. Vigor2710 Series User’s Guide...
Page 68: Wireless Lan
Access Point (AP) connecting to lots of wireless clients or Stations (STA). All the STAs will share the same Internet connection via Vigor wireless router. The General Settings will set up the information of this wireless network, including its SSID as identification, located channel etc. Vigor2710 Series User’s Guide...
Page 69 MAC addresses to isolate users’ access from wired LAN. Manage Wireless Stations - Station List will display all the station in your wireless network and the status of their connection. Below shows the menu items for Wireless LAN. Vigor2710 Series User’s Guide...
Page 70: General Setup
Means the channel of frequency of the wireless LAN. The default channel is 6. You may switch channel if the selected channel is under serious interference. If you have no idea of choosing the frequency, please select Auto to let system determine for you. Vigor2710 Series User’s Guide...
Page 71 You can hide it for your necessity. Long Preamble This option is to define the length of the sync field in an 802.11 packet. Most modern wireless network uses short preamble with 56 bit sync filed instead of long preamble Vigor2710 Series User’s Guide...
Page 72: Security
PSK. The WPA encrypts each frame transmitted from the radio using the key, which either PSK (Pre-Shared Key) entered manually in this field below or automatically Vigor2710 Series User’s Guide...
Page 73: Access Control
Access Control, a new web page will appear, as depicted below, so that you could edit the clients' MAC addresses to control their access rights. Enable Access Control Select to enable the MAC Address access control feature. Vigor2710 Series User’s Guide...
Page 74 Delete the selected MAC address in the list. Edit Edit the selected MAC address in the list. Cancel Give up the access control set up. Click it to save the access control list. Clear All Clean all entries in the MAC address list. Vigor2710 Series User’s Guide...
Page 75: Station List
Below shows the menu items for System Maintenance. The System Status provides basic network settings of Vigor router. It includes LAN and WAN interface information. Also, you could get the current running firmware version or firmware related information from this presentation. Vigor2710 Series User’s Guide...
Page 76 MAC Address Display the MAC address of the wireless LAN. Frequency Domain It can be Europe (13 usable channels), USA (11 usable channels) etc. The available channels supported by the wireless products in different countries are various. Vigor2710 Series User’s Guide...
Page 77: User Password
PC host as router’s system time. Use Internet Time Select to inquire time information from Time Server on the Internet using assigned protocol. Server IP Address Type the IP address of the time server. Vigor2710 Series User’s Guide...
Page 78: Reboot System
OK to reboot your router for ensuring normal operation and preventing unexpected errors of the router in the future. Diagnostic Tools provide a useful way to view or diagnose the status of your Vigor router. Below shows the menu items for Diagnostics. Vigor2710 Series User’s Guide...
Page 79: Dhcp Table
It displays the host ID name of the specified PC. Refresh Click it to reload the page. Click Diagnostics and click Ping Diagnosis to pen the web page. Ping to Use the drop down list to choose the destination that you want to ping. Vigor2710 Series User’s Guide...
Page 80: Trace Route
Use the drop down list to choose the interface that you want to ping through. Host/IP Address It indicates the IP address of the host. Click this button to start route tracing work. Clear Click this link to remove the result on the window. Vigor2710 Series User’s Guide...
Page 81: Admin Mode Operation
NIC has reserved certain addresses that will never be registered publicly. These are known as private IP addresses, and are listed in the following ranges: From 10.0.0.0 to 10.255.255.255 From 172.16.0.0 to 172.31.255.255 From 192.168.0.0 to 192.168.255.255 Vigor2710 Series User’s Guide...
Page 82: Pppoe/Pppoa
ADSL loop and your ISP’s Digital Subscriber Line Access Multiplexer (SDLAM). To choose PPPoE or PPPoA as the accessing protocol of the internet, please select PPPoE/PPPoA from the Internet Access menu. The following web page will be shown. Vigor2710 Series User’s Guide...
Page 83 Enter your allocated username, password and authentication parameters according to the information provided by your ISP. If you want to connect to Internet all the time, you can check Always Username – Type in the username provided by ISP in this field. Vigor2710 Series User’s Guide...
Page 84: Mpoa
Ethernet, token-ring or TCP/IP protocols. The goal of MPoA is to allow different LANs to send packets to each other via an ATM backbone. To use MPoA as the accessing protocol of the Internet, select MPoA mode. The following web page will appear. Vigor2710 Series User’s Guide...
Page 85 DNS Server IP Type in the primary IP address for the router. If necessary, type in Address secondary IP address for necessity in the future. After finishing all the settings here, please click OK to activate them. Vigor2710 Series User’s Guide...
Page 86: Multi-Pvcs
Internet Access. Type in the value provided by your ISP. Type in the value provided by your ISP. QoS Type Select a proper QoS type for the channel. Protocol Select a proper protocol for this channel. Vigor2710 Series User’s Guide...
Page 87 DSL Modem Settings Set up the DSL parameters required by your ISP. These are vital for building DSL connection to your ISP. VPI - Type in the value provided by ISP. Vigor2710 Series User’s Guide...
Page 88 Subnet Mask – Type in the subnet mask. Gateway IP Address – Type in gateway IP address. DNS Server IP Type in the primary IP address for the router. If necessary, type in Address secondary IP address for necessity in the future. Vigor2710 Series User’s Guide...
Page 89 It represents Peak Cell Rate. The default setting is “0”. It represents Sustainable Cell Rate. The value of SCR must be smaller than PCR. It represents Maximum Burst Size. The range of the value is 10 to 50. Vigor2710 Series User’s Guide...
Page 90 Click Clear to remove all the configurations in this page if you do not satisfy it. When you finish the configuration, please click OK to save and exit this page. Or click Cancel to abort the configuration and exit this page. Vigor2710 Series User’s Guide...
Page 91: Lan
You can group local hosts by physical ports and create up to 4 virtual LANs. To manage the communication between different groups, please set up rules in Virtual LAN (VLAN) function and the rate of each. Vigor2710 Series User’s Guide...
Page 92: General Setup
IP settings to any local user configured as a DHCP client. It is highly recommended that you leave the router enabled as a DHCP server if you do not have a DHCP server for your network. Vigor2710 Series User’s Guide...
Page 93 If the IP address of a domain name is already in the DNS cache, the router will resolve the domain name immediately. Otherwise, the router forwards the DNS query packet to the external DNS server by establishing a WAN (e.g. DSL/Cable) connection. Vigor2710 Series User’s Guide...
Page 94: Vlan
P3 and P4. After checking the box to enable VLAN function, you will check the table according to the needs as shown below. To remove VLAN, uncheck the needed box and click OK to save the results. Vigor2710 Series User’s Guide...
Page 95: Bind Ip To Mac
It displays a list for the IP bind to MAC information. It allows you to add the one you choose from the ARP table or the IP/MAC address typed in Add and Edit to the table of IP Bind List. Vigor2710 Series User’s Guide...
Page 96: Nat
IP address/port, the goal of Port Redirection function is to forward all access request with public IP address from external users to the mapping private IP address/port of the server. Vigor2710 Series User’s Guide...
Page 97 To use this function, please go to NAT page and choose Port Redirection web page. The Port Redirection Table provides 20 port-mapping entries for the internal hosts. Press any number under Index to access into next page for configuring port redirection. Vigor2710 Series User’s Guide...
Page 98 80 to avoid conflict, such as 8080. This can be set in the System Maintenance >>Management Setup. You then will access the admin screen of by suffixing the IP address with 8080, e.g., http://192.168.1.1:8080 instead of port 80. Vigor2710 Series User’s Guide...
Page 99: Dmz Host
Internet, which usually helps some special applications such as Netmeeting or Internet Games etc. The inherent security properties of NAT are somewhat bypassed if you set up DMZ host. We suggest you to add additional filter rules or a secondary firewall. Vigor2710 Series User’s Guide...
Page 100 LAN network. Select one private IP address in the list to be the DMZ host. When you have selected one private IP from the above dialog, click OK to save the setting. Vigor2710 Series User’s Guide...
Page 101: Open Ports
Inactive or Active state. To add or edit port settings, click one index number on the page. The index entry setup page will pop up. In each index entry, you can specify 10 port ranges for diverse services. Vigor2710 Series User’s Guide...
Page 102 Specify the transport layer protocol. It could be TCP, UDP, or ----- (none) for selection. Start Port Specify the starting port number of the service offered by the local host. End Port Specify the ending port number of the service offered by the local host. Vigor2710 Series User’s Guide...
Page 103: Firewall
It will check packets according to the filter rules. If legal, the packet will pass the router. The following illustrations are flow charts explaining how router will treat incoming traffic and outgoing traffic respectively. Vigor2710 Series User’s Guide...
Page 104 4. Port Scan attack 12. Tear drop attack 5. IP options 13. Ping of Death attack 6. Land attack 14. ICMP fragment 7. Smurf attack 15. Unknown protocol 8. Trace route Below shows the menu items for Firewall. Vigor2710 Series User’s Guide...
Page 105: General Setup
CSM>> URL Content Filter) for applying with this router. Please set at least one profile for choosing in CSM>> URL Content Filter web page first. For troubleshooting needs, you can specify to record information for URL Content Filter by checking the Log Vigor2710 Series User’s Guide...
Page 106 Syslog. From Codepage Information of Setup dialog, you will see the recommended codepage listed on the dialog box. Window size – It determines the size of TCP protocol (0~65535). The more the value is, the better the performance will Vigor2710 Series User’s Guide...
Page 107: Filter Setup
Click a button numbered (1 ~ 7) to edit the filter rule. Click the button will open Edit Filter Rule web page. For the detailed information, refer to the following page. Active Enable or disable the filter rule. Vigor2710 Series User’s Guide...
Page 108 Data Filter only. For the Call Filter, this setting is not available since Call Filter is only applied to outgoing traffic. Source/Destination IP Click Edit to access into the following dialog to choose the source/destination IP or IP ranges. Vigor2710 Series User’s Guide...
Page 109 Or use the IP Object drop down list to choose the object that you want. Service Type Click Edit to access into the following dialog to choose a suitable service type. To set the service type manually, please choose User defined as Vigor2710 Series User’s Guide...
Page 110 Alert for more detailed information. URL Content Filter Select one of the URL Content Filter profile settings (created in CSM>> URL Content Filter) for applying with this router. Please set at least one profile for choosing in CSM>> URL Content Vigor2710 Series User’s Guide...
Page 111 Please use the drop-down list to choose a codepage. If you do not have any idea of choosing suitable codepage, please open Syslog. From Codepage Information of Setup dialog, you will see the recommended codepage listed on the dialog box. Vigor2710 Series User’s Guide...
Page 112 Session timeout–Setting timeout for sessions can make the best utilization of network resources. However, Queue timeout is configured for TCP protocol only; session timeout is configured for the data flow which matched with the firewall rule. Vigor2710 Series User’s Guide...
Page 113 Each filter set is composed by 7 filter rules, which can be further defined. After that, in General Setup you may specify one set for call filter and one set for data filter to execute first. Vigor2710 Series User’s Guide...
Page 114: Dos Defense
ICMP echo requests coming from the Internet. The default setting for threshold and timeout are 50 packets per second and 10 seconds, respectively. Enable PortScan Port Scan attacks the Vigor router by sending lots of packets to Vigor2710 Series User’s Guide...
Page 115 The Vigor routers will block any packets realizing this attacking activity. Block ICMP Fragment Check the box to activate the Block ICMP fragment function. Any ICMP packets with more fragment bit set are dropped. Vigor2710 Series User’s Guide...
Page 116 All the warning messages related to DoS Defense will be sent to user and user can review it through Syslog daemon. Look for the keyword DoS in the message, followed by a name to indicate what kind of attacks is detected. Vigor2710 Series User’s Guide...
Page 117: Objects Settings
IPs in the same department can be defined with an IP object (a range of IP address). You can set up to 192 sets of IP Objects with different conditions. Set to Factory Default Clear all profiles. Click the number under Index column for settings in detail. Vigor2710 Series User’s Guide...
Page 118 Type the subnet mask if the Subnet Address type is selected. Invert Selection If it is checked, all the IP addresses except the ones listed above will be applied later while it is chosen. Below is an example of IP objects settings. Vigor2710 Series User’s Guide...
Page 119: Ip Group
This page allows you to bind several IP objects into one IP group. Set to Factory Default Clear all profiles. Click the number under Index column for settings in detail. Vigor2710 Series User’s Guide...
Page 120 Available IP Objects All the available IP objects with the specified interface chosen above will be shown in this box. Selected IP Objects Click >> button to add the selected IP objects in this box. Vigor2710 Series User’s Guide...
Page 121: Service Type Object
Specify the protocol(s) which this profile will apply to. Source/Destination Port Source Port and the Destination Port column are available for TCP/UDP protocol. It can be ignored for other protocols. The filter rule will filter out any port number. Vigor2710 Series User’s Guide...
Page 122: Service Type Group
Below is an example of service type objects settings. This page allows you to bind several service types into one group. Set to Factory Default Clear all profiles. Click the number under Index column for settings in detail. Vigor2710 Series User’s Guide...
Page 123: Keyword Object
You can set 200 keyword object profiles for choosing as black /white list in CSM >>URL Web Content Filter Profile. Set to Factory Default Clear all profiles. Click the number under Index column for setting in detail. Vigor2710 Series User’s Guide...
Page 124: Keyword Group
This page allows you to bind several keyword objects into one group. The keyword groups set here will be chosen as black /white list in CSM >>URL Web Content Filter Profile. Set to Factory Default Clear all profiles. Click the number under Index column for setting in detail. Vigor2710 Series User’s Guide...
Page 125: File Extension Object
Profile 1 with name of “default” is the default profile, some files with the file extensions specified in this profile will be ignored and not be scanned by Vigor router. Set to Factory Default Clear all profiles. Click the number under Profile column for configuration in details. Vigor2710 Series User’s Guide...
Page 126 Profile Name Type a name for this profile. Type a name for such profile and check all the items of file extension that will be processed in the router. Finally, click OK to save this profile. Vigor2710 Series User’s Guide...
Page 127: Im Object
Profile Name Type a name for this profile. Type a name for such profile and check all the items that not allowed to be used in the host. Finally, click OK to save this profile. Vigor2710 Series User’s Guide...
Page 128: P2P Object
(es) and then click OK. Later, in the CSM>>IM/P2P Filter Profile page, you can use P2P Object drop down list to choose the proper profile configured here as the standard for the host(s) to follow. Profile Name Type a name for this profile. Vigor2710 Series User’s Guide...
Page 129: Misc Object
Profile Name Type a name for this profile. Type a name for such profile and check all the protocols that not allowed to be used in the host. Finally, click OK to save this profile. Vigor2710 Series User’s Guide...
Page 130: Csm Profile
For parents, you can protect your children from viewing adult websites or chat rooms. Once you have activated your Web Filtering service in Vigor router and chosen the categories of website you wish to restrict, each URL address requested (e.g.www.bbc.co.uk) will be Vigor2710 Series User’s Guide...
Page 131: Im/P2P Filter Profile
Peer) application. CSM profile can be used in Filter Setup page. Set to Factory Default Clear all profiles. Click the number under Index column for settings in detail. Profile Name Type a name for the CSM profile. Vigor2710 Series User’s Guide...
Page 132: Url Content Filter Profile
Click CSM and click URL Content Filter Profile to open the profile setting page. You can set eight profiles as URL content filter. Simply click the index number under Profile to open the following web page. Vigor2710 Series User’s Guide...
Page 133 None – There is no log file will be recorded for this profile. Pass – Only the log about Pass will be recorded in Syslog. Block – Only the log about Block will be recorded in Syslog. Vigor2710 Series User’s Guide...
Page 134 32-character long. After specifying keywords, the Vigor router will decline the connection request to the website whose URL string matched to any user-defined keyword. It should be noticed that the more simplified the blocking Vigor2710 Series User’s Guide...
Page 135 File Extension Profile – Choose one of the profiles that you configured in Object Setting>> File Extension Objects previously for passing or blocking the file downloading. Vigor2710 Series User’s Guide...
Page 136: Web Content Filter Profile
Click CSM and click Web Content Filter Profile to open the profile setting page. You can set eight profiles as Web content filter. Simply click the index number under Profile to open the following web page. Vigor2710 Series User’s Guide...
Page 137 Block – Only the log about Block will be recorded in Syslog. All – All the actions (Pass and Block) will be recorded in Syslog. For this section, please refer to Web Content Filter user’s guide. Vigor2710 Series User’s Guide...
Page 138: Bandwidth Management
LAN. Limitation List Displays a list of specific limitations that you set on this web page. Start IP Defines the start IP address for limit session. End IP Defines the end IP address for limit session. Vigor2710 Series User’s Guide...
Page 139: Bandwidth Limit
Click this button to close the function of limit bandwidth. Default TX limit Define the default speed of the upstream for each computer in LAN. Default RX limit Define the default speed of the downstream for each computer in LAN. Vigor2710 Series User’s Guide...
Page 140 You can type in four sets of time schedule for your request. Index (1-15) in Schedule Setup All the schedules can be set previously in Application – Schedule web page and you can use the number that you have set in that web page. Vigor2710 Series User’s Guide...
Page 141: Applications
Execute auto-update with the interval set here. Enable Dynamic DNS Setup Check this box to enable DDNS function. Index Click the number below Index to access into the setting page of DDNS setup to set account(s). Vigor2710 Series User’s Guide...
Page 142 Delete a Dynamic DNS Account In the DDNS setup menu, click the Index number you want to delete and then push Clear All button to delete the account. Vigor2710 Series User’s Guide...
Page 143: Schedule
You can set up to 15 schedules. Then you can apply them to your Internet Access or VPN and Remote Access >> LAN-to-LAN settings. To add a schedule, please click any index, say Index No. 1. The detailed settings of the call schedule with index 1 are shown below. Vigor2710 Series User’s Guide...
Page 144: Upnp
It is more reliable than requiring a router to work out by itself which ports need to be opened. Further, the user does not have to manually set up port mappings or a DMZ. Vigor2710 Series User’s Guide...
Page 145 NAT router. The application will also learn the external IP address and configure port mappings on the router. Subsequently, such a facility forwards packets from the external ports of the router to the internal ports used by the application. Vigor2710 Series User’s Guide...
Page 146: Igmp
When the applications terminate abnormally, these mappings may not be removed. IGMP is the abbreviation of Internet Group Management Protocol. It is a communication protocol which is mainly used for managing the membership of Internet Protocol multicast groups. Vigor2710 Series User’s Guide...
Page 147: Wake On Lan
Firewall>>Bind IP to MAC will be shown in this drop down list. Choose the IP address from the drop down list that you want to wake up. MAC Address Type any one of the MAC address of the binded PCs. Vigor2710 Series User’s Guide...
Page 148 Wake Up Click this button to wake up the selected IP. See the following figure. The result will be shown on the box. Vigor2710 Series User’s Guide...
Page 149: Vpn And Remote Access
Click each index to edit one peer digital certificate. There are three security levels of digital signature authentication: Fill each necessary field to authenticate the remote peer. The following explanation will guide you to fill all the necessary fields. Vigor2710 Series User’s Guide...
Page 150 Click to check the specific fields of digital signature to accept the peer with matching value. The field includes Country (C), State (ST), Location (L), Organization (O), Organization Unit (OU), Common Name (CN), and Email (E). Vigor2710 Series User’s Guide...
Page 151: Lan To Lan
3 subgroups. If the fields gray out, it means you may leave it untouched. The following explanations will guide you to fill all the necessary fields. For the web page is too long, we divide the page into several sections for explanation. Vigor2710 Series User’s Guide...
Page 152 Check to enable the transmission of PING packets to a specified IP address. PING to the IP Enter the IP address of the remote host that located at the other-end of the VPN tunnel. Vigor2710 Series User’s Guide...
Page 153 IPSec Security Method This group of fields is a must for IPSec Tunnels and L2TP with IPSec Policy. Medium Authentication Header (AH) means data will be authenticated, but not be encrypted. By default, this option is active. Vigor2710 Series User’s Guide...
Page 154 You may specify a value in between 900 and 86400 seconds. IKE phase 2 key lifetime-For security reason, the lifetime of key should be defined. The default value is 3600 seconds. You may specify a value in between 600 and 86400 seconds. Vigor2710 Series User’s Guide...
Page 155 From first subnet to IP, please choose NAT, otherwise choose Route. remote network, you have to do Change default route to Check this box to change the default route with this VPN this VPN tunnel tunnel. Vigor2710 Series User’s Guide...
Page 156: Connection Management
Tool and clicking Dial button. Dial Click this button to execute dial out function. Refresh Seconds Choose the time for refresh the dial information among 5, 10, and 30. Refresh Click this button to refresh the whole connection status. Vigor2710 Series User’s Guide...
Page 157: Certificate Management
Remember to adjust the time of Vigor router before using the certificate so that you can get the correct valid period of certificate. Below shows the menu items for Certificate Management. Generate Click this button to open Generate Certificate Request window. Vigor2710 Series User’s Guide...
Page 158 Refresh Click this button to refresh the information listed below. View Click this button to view the detailed settings for certificate request. After clicking Generate, the generated information will be displayed on the window below: Vigor2710 Series User’s Guide...
Page 159: Trusted Ca Certificate
For viewing each trusted CA certificate, click View to open the certificate detail information window. If you want to delete a CA certificate, choose the one and click Delete to remove all the certificate information. Vigor2710 Series User’s Guide...
Page 160: Certificate Backup
The more bandwidth a codec uses the better the voice quality, however the codec used must be appropriate for your Internet bandwidth. Usually there will be two types of calling scenario, as illustrated below: Calling via SIP Servers Vigor2710 Series User’s Guide...
Page 161 QoS Assurance assists to assign high priority to voice traffic via Internet. You will always have the required inbound and outbound bandwidth that is prioritized exclusively for Voice traffic over Internet but you just get your data a little slower and it is tolerable for data traffic. Vigor2710 Series User’s Guide...
Page 162: Dialplan
SIP addresses. Loop through and Backup Phone Number will be displayed if you are using Vigor 2710Vn for setting the phone book. Click any index number to display the dial plan setup page. Vigor2710 Series User’s Guide...
Page 163 And when the VoIP phone is switched into the PSTN phone, the telecom co. might charge you for the connection fee. Please type in backup phone number (PSTN number) for this VoIP phone setting. Vigor2710 Series User’s Guide...
Page 164 Setup web page) as an example, the OP number of 886 will be deleted completely for the prefix number is set with 886. Replace - When you choose this mode, the OP number will be replaced by the prefix number for calling out through the Vigor2710 Series User’s Guide...
Page 165 SIP accounts. Please set up one SIP account first to make this interface available. Call barring is used to block phone calls coming from the one that is not welcomed. Click any index number to display the dial plan setup page. Vigor2710 Series User’s Guide...
Page 166 For Block Anonymous – this function can block the incoming calls without caller ID on the interface (Phone port) specified in the following window. Such control also can be done based on preconfigured schedules. Vigor2710 Series User’s Guide...
Page 167 This page allows you to process incoming or outgoing phone calls by regional. Default values (common used in most areas) will be shown on this web page. You can change the number based on the region that the router is placed. Vigor2710 Series User’s Guide...
Page 168 Dial the number typed in this field to make your phone number (ID) not displayed on the display panel of remote end. Hide caller ID [Deact] Dial the number typed in this field to release this function. Vigor2710 Series User’s Guide...
Page 169 PSTN number for dialing without passing through Internet. Please type the number in the field of phone number for PSTN relay. Then, check the Enable box to make the PSTN number available for dial whenever you need. Vigor2710 Series User’s Guide...
Page 170: Sip Accounts
The default value is 150 (sec). It is useful for a Nortel server NAT Traversal Support. Status Show the status for the corresponding SIP account. R means such account is registered on SIP server successfully. – means the account is failed to register on SIP server. Vigor2710 Series User’s Guide...
Page 171 Account Name, it is not necessary for you to check the box and set any value in this field. Password The password provided to you when you registered with a SIP service. Vigor2710 Series User’s Guide...
Page 172 Nortel – If the soft-switch that you use supports Nortel solution, you can choose this option. Ring Port Set Phone1 or Phone2 as the default ring port for this SIP account. Ring Pattern Choose a ring tone type for the VoIP phone call. Vigor2710 Series User’s Guide...
Page 173: Phone Settings
Dynamic RTP Port Start - Specifies the start port for RTP stream. The default value is 10050. Dynamic RTP Port End - Specifies the end port for RTP stream. The default value is 15000. RTP TOS – It decides the level of VoIP package. Use the Vigor2710 Series User’s Guide...
Page 174 Call Forwarding There are four options for you to choose. Disable is to close call forwarding function. Always means all the incoming calls will be forwarded into SIP URL without any reason. Busy Vigor2710 Series User’s Guide...
Page 175 Single Codec – If the box is checked, only the selected Codec will be applied. Packet Size-The amount of data contained in a single packet. The default value is 20 ms, which means the data packet will contain 20 ms voice information. Vigor2710 Series User’s Guide...
Page 176 ID type automatically. Or you can adjust tone settings manually if you choose User Defined. TOn1, TOff1, TOn2 and TOff2 mean the cadence of the tone pattern. TOn1 and TOn2 represent sound-on; TOff1 and TOff2 represent the sound-off. Vigor2710 Series User’s Guide...
Page 177 VoIP communication. Volume Gain Mic Gain (1-10)/Speaker Gain (1-10) - Adjust the volume of microphone and speaker by entering number from 1- 10. The larger of the number, the louder the volume is. Vigor2710 Series User’s Guide...
Page 178: Status
Payload Type (rfc2833) - Choose a number from 96 to 127, the default value was 101. This setting is available for the OutBand (RFC2833) mode. From this page, you can find codec, connection and other important call status for each port. Vigor2710 Series User’s Guide...
Page 179: Wireless Lan
Any authorized staff can bring a built-in WLAN client PDA or notebook into a meeting room for conference without laying a clot of LAN cable or drilling holes everywhere. Wireless LAN enables high Vigor2710 Series User’s Guide...
Page 180 WPA-Enterprise or called WPA/802.1x. In WPA-Personal, a pre-defined key is used for encryption during data transmission. WPA applies Temporal Key Integrity Protocol (TKIP) for data encryption while WPA2 applies AES. The WPA-Enterprise combines not only encryption but also authentication. Vigor2710 Series User’s Guide...
Page 181 MAC addresses to isolate users’ access from wired LAN. Manage Wireless Stations - Station List will display all the station in your wireless network and the status of their connection. Below shows the menu items for Wireless LAN. Vigor2710 Series User’s Guide...
Page 182: General Setup
Mixed (11b+11g+11n) stations simultaneously. Simply choose Mix (11b+11g+11n) mode. Index(1-15) Set the wireless LAN to work at certain time interval only. You may choose up to 4 schedules out of the 15 schedules pre-defined in Applications >> Schedule Vigor2710 Series User’s Guide...
Page 183 This feature can enhance the performance in data transmission about 40%* more (by checking Tx Burst). It is active only when both sides of Access Point and Station (in wireless client) invoke this function at the Vigor2710 Series User’s Guide...
Page 184 Rate Control It controls the data transmission rate through wireless connection. Upload – Check Enable and type the transmitting rate for data upload. Default value is 30,000 kbps. Download – Type the transmitting rate for data download. Default value is 30,000 kbps. Vigor2710 Series User’s Guide...
Page 185: Security
802.1x authentication. Either 8~63 ASCII characters, such as 012345678(or 64 Hexadecimal digits leading by 0x, such as "0x321253abcde..."). Type - Select from Mixed (WPA+WPA2) or WPA2 only. Vigor2710 Series User’s Guide...
Page 186 Four keys can be entered here, but only one key can be selected at a time. The keys can be entered in ASCII or Hexadecimal. Check the key you wish to use. Vigor2710 Series User’s Guide...
Page 187: Access Control
Delete the selected MAC address in the list. Edit Edit the selected MAC address in the list. Cancel Give up the access control set up. Click it to save the access control list. Clear All Clean all entries in the MAC address list. Vigor2710 Series User’s Guide...
Page 188: Wps
Start PBC button of network card. If you want to use PIN code, you have to know the PIN code specified in wireless client. Then provide the PIN code of the wireless client you wish to connect to the Vigor2710 Series User’s Guide...
Page 189 Display related system information for WPS. If the wireless security (encryption) function of the router is properly configured, you can see ‘Configured’ message here. SSID Display the SSID1 of the router. WPS is supported by SSID1 only. Vigor2710 Series User’s Guide...
Page 190: Wds
Provide bridge traffic between two LANs through the air. Extend the coverage range of a WLAN. To meet the above requirement, two WDS modes are implemented in Vigor router. One is Bridge, the other is Repeater. Below shows the function of WDS-bridge interface: Vigor2710 Series User’s Guide...
Page 191 Bridge 2 through WDS links. However, hosts connected to Bridge 1 CANNOT communicate with hosts connected to Bridge 3 through Bridge 2. Click WDS from Wireless LAN menu. The following page will be shown. Vigor2710 Series User’s Guide...
Page 192 “0x”. Bridge If you choose Bridge as the connecting mode, please type in the peer MAC address in these fields. Four peer MAC addresses are allowed to be entered in this page at one time. Vigor2710 Series User’s Guide...
Page 193: Ap Discovery
Please click Scan to discover all the connected APs. Scan It is used to discover all the connected AP. The results will be shown on the box above this button. Vigor2710 Series User’s Guide...
Page 194: Station List
There is a code summary below for explanation. For convenient Access Control, you can select a WLAN station and click Add to Access Control below. Refresh Click this button to refresh the status of station list. Click this button to add current typed MAC address into Access Control. Vigor2710 Series User’s Guide...
Page 195: System Maintenance
Display the ADSL firmware version. LAN------- MAC Address Display the MAC address of the LAN Interface. IP Address Display the IP address of the LAN interface. Subnet Mask Display the subnet mask address of the LAN interface. Vigor2710 Series User’s Guide...
Page 196 Firmware Version It indicates information about equipped WLAN miniPCi card. This also helps to provide availability of some features that are bound with some WLAN miniPCi. SSID Display the SSID of the router. Vigor2710 Series User’s Guide...
Page 197: 189
Periodic Inform Settings The default setting is Enable. Please set interval time or schedule time for the router to send notification to CPE. Or click Disable to close the mechanism of notification. Vigor2710 Series User’s Guide...
Page 198: Administrator Password
Go to System Maintenance >> Configuration Backup. The following windows will be popped-up, as shown below. Click Backup button to get into the following dialog. Click Save button to open another dialog for saving configuration as a file. Vigor2710 Series User’s Guide...
Page 199 The above example is using Windows platform for demonstrating examples. The Mac or Linux platform will appear different windows, but the backup function is still available. Note: Backup for Certification must be done independently. The Configuration Backup does not include information of Certificate. Vigor2710 Series User’s Guide...
Page 200: Syslog/Mail Alert
Enable syslog message Check the box listed on this web page to send the corresponding message of firewall, VPN, User Access, Call, WAN, Router/DSL information to Syslog. Enable (Alert Setup…) Check “Enable” to activate function of mail alert. Vigor2710 Series User’s Guide...
Page 201 From the Syslog screen, select the router you want to monitor. Be reminded that in Network Information, select the network adapter used to connect to the router. Otherwise, you won’t succeed in retrieving information from the router. Vigor2710 Series User’s Guide...
Page 202: Time And Date
Type the IP address of the time server. Time Zone Select the time zone where the router is located. Automatically Update Interval Select a time interval for updating from the NTP server. Click OK to save these settings. Vigor2710 Series User’s Guide...
Page 203: Management
Check it to enable this function. Get Community Set the name for getting community by typing a proper character. The default setting is public. Set Community Set community by typing a proper name. The default setting is private. Vigor2710 Series User’s Guide...
Page 204: Reboot System
Note: When the system pops up Reboot System web page after you configure web settings, please click OK to reboot your router for ensuring normal operation and preventing unexpect errors of the router in the future. Vigor2710 Series User’s Guide...
Page 205: Firmware Upgrade
Click System Maintenance>> Firmware Upgrade to launch the Firmware Upgrade Utility. Click OK. The following screen will appear. Please execute the firmware upgrade utility first. For the detailed information about firmware update, please go to Chapter 4. Vigor2710 Series User’s Guide...
Page 206: Diagnostics
(e.g., PPPoE, PPPoA, etc) is triggered by a package sending from the source IP address. Decoded Format It shows the source IP address (local), destination IP (remote) address, the protocol and length of the package. Refresh Click it to reload the page. Vigor2710 Series User’s Guide...
Page 207: Routing Table
Resolution Protocol) cache held in the router. The table shows a mapping between an Ethernet hardware address (MAC Address) and an IP address. Refresh Click it to reload the page. Clear Click it to clear the whole table. Vigor2710 Series User’s Guide...
Page 208: Dhcp Table
DHCP assigned IP address for it. Leased Time It displays the leased time of the specified PC. HOST ID It displays the host ID name of the specified PC. Refresh Click it to reload the page. Vigor2710 Series User’s Guide...
Page 209: Nat Sessions Table
It indicates the temporary port of the router used for NAT. Peer IP:Port It indicates the destination IP address and port of remote host. Interface It displays the representing number for different interface. Refresh Click it to reload the page. Vigor2710 Series User’s Guide...
Page 210: Data Flow Monitor
RX rate (kbps) Display the receiving speed of the monitored device. Sessions Display the session number that you specified in Limit Session web page. Action Block - can prevent specified PC accessing into Internet within 5 minutes. Vigor2710 Series User’s Guide...
Page 211: Traffic Graph
The remaining time will be shown on the session column. Click Diagnostics and click Traffic Graph to pen the web page. Choose WAN1 Bandwidth, Sessions, daily or weekly for viewing different traffic graph. Click Refresh to renew the graph at any time. Vigor2710 Series User’s Guide...
Page 212: Ping Diagnosis
Type in the IP address of the Host/IP that you want to ping. Click this button to start the ping work. The result will be displayed on the screen. Clear Click this link to remove the result on the window. Vigor2710 Series User’s Guide...
Page 213: Trace Route
Use the drop down list to choose the interface that you want to ping through. Host/IP Address It indicates the IP address of the host. Click this button to start route tracing work. Clear Click this link to remove the result on the window. Vigor2710 Series User’s Guide...
Page 214 This page is left blank. Vigor2710 Series User’s Guide...
Page 215: Application And Examples
Go to Certificate Management and choose Local Certificate. Vigor2710 Series User’s Guide...
Page 216 Copy and save the X509 Local Certificate Requet as a text file and save it for later use. Connect to CA server via web browser. Follow the instruction to submit the request. Below we take a Windows 2000 CA server for example. Select Request a Certificate. Vigor2710 Series User’s Guide...
Page 217 64 encoded certificate and Download CA certificate. Now you should get a certificate (.cer file) and save it. Back to Vigor router, go to Local Certificate. Click IMPORT button and browse the file to import the certificate (.cer file) into Vigor router. When finished, click refresh Vigor2710 Series User’s Guide...
Page 218 “------BEGINE CERTIFICATE------..” You may review the detail information of the certificate by clicking View button. Vigor2710 Series User’s Guide...
Page 219: Request A Ca Certificate And Set As Trusted On Windows Ca Server
Use web browser connecting to the CA server that you would like to retrieve its CA certificate. Click Retrive the CA certificate or certificate recoring list. Vigor2710 Series User’s Guide...
Page 220 You may review the detail information of the certificate by clicking View button. Note: Before setting certificate configuration, please go to System Maintenance >> Time and Date to reset current time of the router first. Vigor2710 Series User’s Guide...
Page 221: Calling Scenario For Voip Function
Display Name: David Account Name: 4321 Authentication ID: unchecked Password: **** Expiry Time: (use default value) David calls John He picks up the phone and dials 2222# (DialPlan CODEC/RTP/DTMF --- Phone Number for John) (Use default value) Vigor2710 Series User’s Guide...
Page 222 Expiry Time: (use default value) CODEC/RTP/DTMF--- David calls John (Use default value) He picks up the phone and dials 2222# (DialPlan Phone Number for John) Or, He picks up the phone and dials 1234# (John’s Account Name) Vigor2710 Series User’s Guide...
Page 223: Peer-To-Peer Calling
Display Name: Paulin Acco4unt Name: 4321 Authentication ID: unchecked Password: (blank) Expiry Time: (use default value) Paulin calls Arnor CODEC/RTP/DTMF--- He picks up the phone and dials 2222# (DialPlan (Use default value) Phone Number for John) Vigor2710 Series User’s Guide...
Page 224: Upgrade Firmware For Your Router
The Tools of Vigor router will display as shown below. 7. Choose the one that matches with your operating system and click the corresponding link to download correct firmware (zip file). 8. Next, decompress the zip file. Vigor2710 Series User’s Guide...
Page 225 You will find out two files with different extension names, xxxx.all (keep the old custom settings) and xxxx.rst (reset all the custom settings to default settings). Choose any one of them that you need. Vigor2710 Series User’s Guide...
Page 226 14. Click Send. 15. Now the firmware update is finished. Vigor2710 Series User’s Guide...
Page 227: Trouble Shooting
Turn on the router. Make sure the ACT LED blink once per second and the correspondent LAN LED is bright. If not, it means that there is something wrong with the hardware status. Simply back to “1.3 Hardware Installation” to execute the hardware installation again. And then, try again. Vigor2710 Series User’s Guide...
Page 228 Go to Control Panel and then double-click on Network Connections. Right-click on Local Area Connection and click on Properties. Select Internet Protocol (TCP/IP) and then click Properties. Vigor2710 Series User’s Guide...
Page 229 Select Obtain an IP address automatically and Obtain DNS server address automatically. Double click on the current used MacOs on the desktop. Open the Application folder and get into Network. On the Network screen, select Using DHCP from the drop down list of Configure IPv4. Vigor2710 Series User’s Guide...
Page 230: Pinging The Router From Your Computer
Open the Application folder and get into Utilities. Double click Terminal. The Terminal window will appear. Type ping 192.168.1.1 and press [Enter]. It the link is OK, the line of “64 bytes from 192.168.1.1: icmp_seq=0 ttl=255 time=xxxx ms” will appear. Vigor2710 Series User’s Guide...
Page 231: Check Online Status Page
Go to System Maintenance and choose Reboot System on the web page. The following screen will appear. Choose Using factory default configuration and click OK. After few seconds, the router will return all the settings to the factory settings. Vigor2710 Series User’s Guide...
Page 232: Technical Support
After restore the factory default setting, you can configure the settings for the router again to fit your personal request. If you need further assistance with configuration or troubleshooting of your Vigor 2710 series, please visit www.support.draytek.co.uk. Vigor2710 Series User’s Guide...

This manual is also suitable for:

Vigor2710n Vigor2710vn

Draytek Vigor2710 Series User Manual

Preface

Configuring Basic Settings

User Mode Operation

Admin Mode Operation

Application and Examples

Trouble Shooting

Quick Links

Need help?

Questions and answers

Related Manuals for Draytek Vigor2710 Series

Summary of Contents for Draytek Vigor2710 Series

This manual is also suitable for:

Table of Contents
