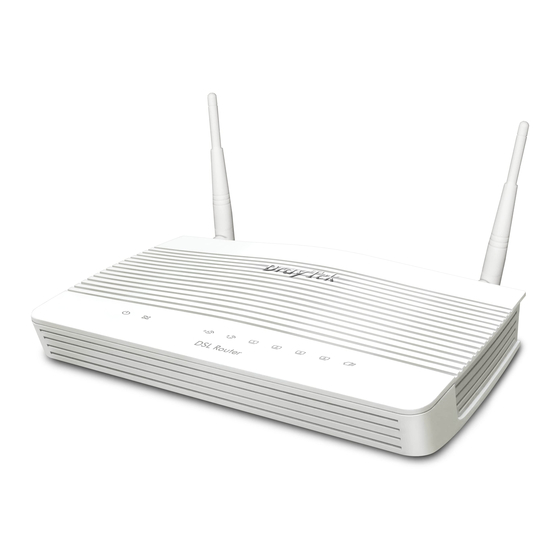

Vigor2763
VDSL2 Security Router
Quick Start Guide
(Wired model)
Guide Version: 1.3
For updates and support, visit www.draytek.com
May 2024 / Firmware V4.4.3.2
Note: Product specification is subject to continuous evolution which may
not always be reflected in current documentation. For the formal specification
and details of the supported features of your product, please refer
to the web site at www.draytek.com
i
Advertisement
Table of Contents
Related Manuals for Draytek Vigor2763
Summary of Contents for Draytek Vigor2763
- Page 1 Quick Start Guide (Wired model) Guide Version: 1.3 For updates and support, visit www.draytek.com May 2024 / Firmware V4.4.3.2 Note: Product specification is subject to continuous evolution which may not always be reflected in current documentation. For the formal specification and details of the supported features of your product, please refer to the web site at www.draytek.com...
- Page 2 We warrant to the original end user (purchaser) that the router will be free from any defects in workmanship or materials for a period of two (2) years from the date of purchase from a DrayTek authorized dealer in the UK/Ireland. Please keep your purchase receipt in a safe place as it serves as proof of date of purchase.
- Page 3 (For other countries) EU Declaration of Conformity Hereby, DrayTek Corporation declares that the equipment type Vigor2763 is in compliance with EU EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU and RoHS 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: https://fw.draytek.com.tw/Vigor2763/Document/CE/...
- Page 4 UK PSTI STATEMENT OF COMPLIANCE We, DrayTek Corp., office at No.26, Fushing Rd., Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan, declare under our sole responsibility that the product The full text of the PSTI Declaration of Conformity is available at the following internet address: https://fw.draytek.com.tw/UK/PSTI/...
-
Page 5: Table Of Contents
1. Package Contents....................1 2. Panel Explanation for Vigor2763 ................. 2 3. Hardware Installation ................... 3 3.1 Connecting up the Vigor Router....................3 3.2 Wall-Mounting the Vigor Router ....................4 4. Setup & Configuration..................5 4.1 Accessing the Router Web Interface...................5 4.2 WAN1 – ADSL & VDSL Connection Setup .................8 4.2.1 PPPoE connection with FTTC VDSL2 ................8... -
Page 6: Package Contents
DrayTek Vigor Router Quick Start Guide (This document) RJ-45 Cable (Ethernet) RJ-11 to RJ-11 Cable (Connects to your PC or Switch) (Connects to your DSL line) UK Power Adapter EU-type Power Adapter The maximum power consumption is 15 Watts. Important... -
Page 7: Panel Explanation For Vigor2763
Status Explanation Blinking The router is ready and operating normally The router is powered off (Activity) DSL connection synchronised Blinking (Slowly) DSL connection not currently synchronizing or not (DSL) detected Blinking (Quickly) DSL connection is synchronising Ethernet LAN (RJ45) is connected Blinking Data is transmitting (sending/receiving) Ethernet LAN is disconnected... -
Page 8: Hardware Installation
Power Supply: Connect the power adapter to the Vigor 2763’s PWR socket on the rear and plug the power adapter into a suitable mains socket. Turn the Vigor2763 on using its power switch. The router will start up. After completing the system test, the ACT LED will light up and start blinking once per second to indicate that it is ready for use. -
Page 9: Wall-Mounting The Vigor Router
DrayTek Vigor2763 series routers have keyhole type mounting slots on the underside to hang the router on, using screws attached to a wall or other surface. Drill two holes on the wall. The distance between the holes shall be 168mm. -
Page 10: Setup & Configuration
& & This section provides examples of how to initially access the router and configure internet access for the most common types of Internet connection in the UK. If the instructions in this quick start guide do not allow you to get online with your ISP or type of Internet connection, contact your dealer for advanced information. - Page 11 An example from Microsoft Edge, click “Continue to this webpage” to proceed: Most other browsers will present equivalent warnings. In each case, following the prompts/links will allow you to access the router's web interface. It is still encrypted with SSL/TLS. Note This warning appears because the router's default certificate is 'self-signed' rather than issued to you by a certificate authority...
- Page 12 Note If you cannot access the web interface, please go to the “Trouble Shooting” section in the User Guide to determine the cause of and solve your problem. Upon successful login, the router will display the Dashboard, which shows a summary of the router model, WAN status, front panel port status and other information: Note...
-
Page 13: Wan1 - Adsl & Vdsl Connection Setup
& – & The WAN1 interface of the Vigor2763 router can connect to VDSL2 and ADSL2+ lines. If your Internet connection uses VDSL2 and your ISP has supplied you with a Username and Password to connect to the Internet, go to section 4.2.1 PPPoE connection with FTTC VDSL2... - Page 14 Click OK on that page to apply the changes. Go to [WAN] > [Internet Access] Set the WAN1 Access Mode to PPPoE / PPPoA, then click the Details Page button to proceed: On the PPPoE / PPPoA settings tab: Select the Enable radio button at the top of the page to ensure that the PPPoE interface is enabled.
- Page 15 Click OK on this page to apply the changes and the router will then prompt to restart. Click the OK button to restart the router. Once the router has restarted, the [Online Status] > [Physical Connection] page will display the VDSL information and PPP connection status, if the WAN1 section shows an IP address, it has connected to the internet successfully:...
- Page 16 Note If the WAN 1 IP address displayed begins with 172.16.x.x, it’s possible that the ISP has not accepted the supplied Username and Password for the Internet connection. Check that the ISP Access Setup - Username and Password match the details supplied by your ISP. Go to [WAN] >...
- Page 17 Click OK on that page to apply the changes. Go to [WAN] > [Internet Access] Set the WAN1 Access Mode to MPoA / Static or Dynamic IP, then click the Details Page button to proceed: In the MPoA / Static or Dynamic IP settings: Select the Enable option and select Obtain an IP address automatically which will obtain an IP from the ISP using DHCP.
- Page 18 Click OK on this page to apply the changes and the router will then prompt to restart. Click the OK button to restart the router. Once the router has restarted, the [Online Status] > [Physical Connection] page will display the VDSL information and DHCP connection status, if the WAN1 section shows an IP address, it has connected to the internet successfully:...
-
Page 19: Pppoa Connection With Adsl / Adsl2
Go to [WAN] > [Internet Access] Set the WAN1 Access Mode to PPPoE / PPPoA and click the Details Page button to proceed: On the PPPoE / PPPoA settings tab: The details for the VPI and VCI settings for ADSL should be correct for UK usage, with 0 and 38 being the defaults. - Page 20 Click OK on this page to apply the changes and the router will then prompt to restart. Click the OK button to restart the router. Once the router has restarted, the [Online Status] > [Physical Connection] page will display the ADSL information and PPP connection status, if the WAN1 section shows an IP address, it has connected to the internet successfully: Note...
-
Page 21: Getting Further Help
This is a quick setup guide to get you online with your new router. Your Vigor2763 router is capable of very much more and has a plethora of other features. These are covered in the main user manual.
