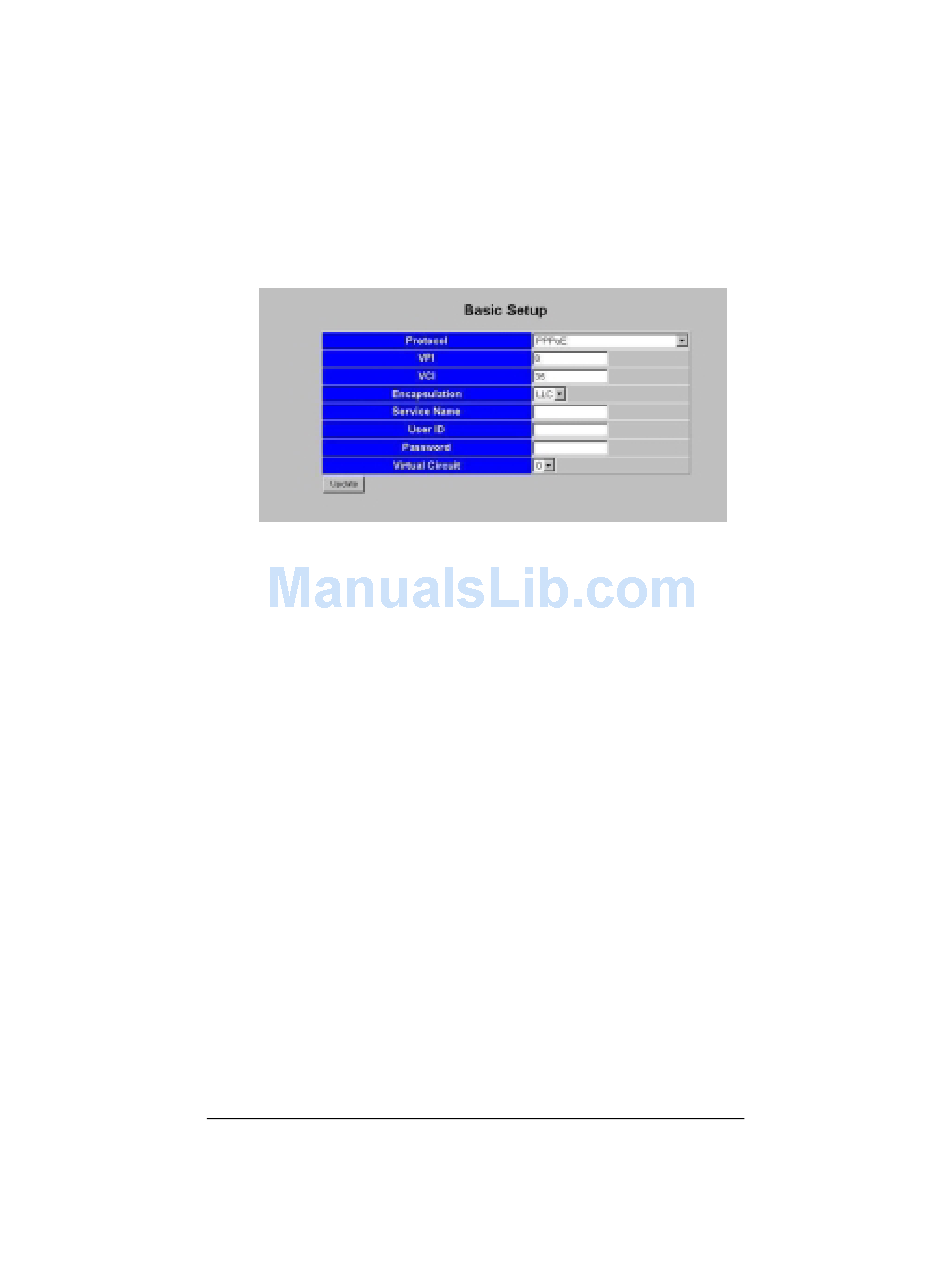

On the ADSL Duo's Basic Setup page (shown below), select
your Service Provider's most often used protocol – the one
labeled (1) in the DSL Internet Settings Tables – from the
list. The screen may change slightly, depending on the protocol
you select.
3 3 3 3
Now enter the corresponding VPI, VCI, and Encapsulation
settings in the appropriate boxes.
4 4 4 4
If you selected PPPoE as your protocol, leave the Service
Name box empty.
5 5 5 5
If you selected either PPPoE or PPPoA as your Protocol,
your provider should have given you a User ID or User
Name (usually your email address or the characters preceding
the @ sign in your email address) and a Password. (These are
NOT the User ID and Password that you used to get into the
Basic Setup menu.) If you cannot remember or cannot find
your User ID and Password, call your service provider and say
that you have misplaced your user name and password.
Then enter them as well. This information is only required
with PPPoE and PPPoA protocols.
6 6 6 6
If your Service Provider uses 1483 Bridged IP or 1483
Routed IP, you should have been given numbers for the IP
Address and Gateway. Enter these numbers in the
appropriate boxes.
7 7 7 7
Leave the Virtual Circuit box at 0.
8 8 8 8
Click Update, then Save Configuration.
