Hayes RocketModem Hardware Installation

Product Overview
The RocketModem multimodem card is Hayes
compatible and contains four or six RJ11 modem ports,
depending on the model, that can operate at speeds up
to 56 Kbps.
RocketModem features for this model include:
• Four or six RJ11 modem ports
• Bootable diagnostic tests on diskette
• Individual software controlled modem reset
capability
Note: See the Software Installation and Configuration
Guide for information about installing software,
the AT command set, and using the reset feature.
Characteristic
Supported standards
Error correction
Data compression
Fax group
Fax class
Reset
Note: If the Comtrol RocketModem is not among the
modem models listed in your software
applications modem list, you can select
SupraFAXModem 288(336) for fax emulation and
Zoom Telephonics Zoom V.34X for modem
emulation.
Utilizing V.90 Technology

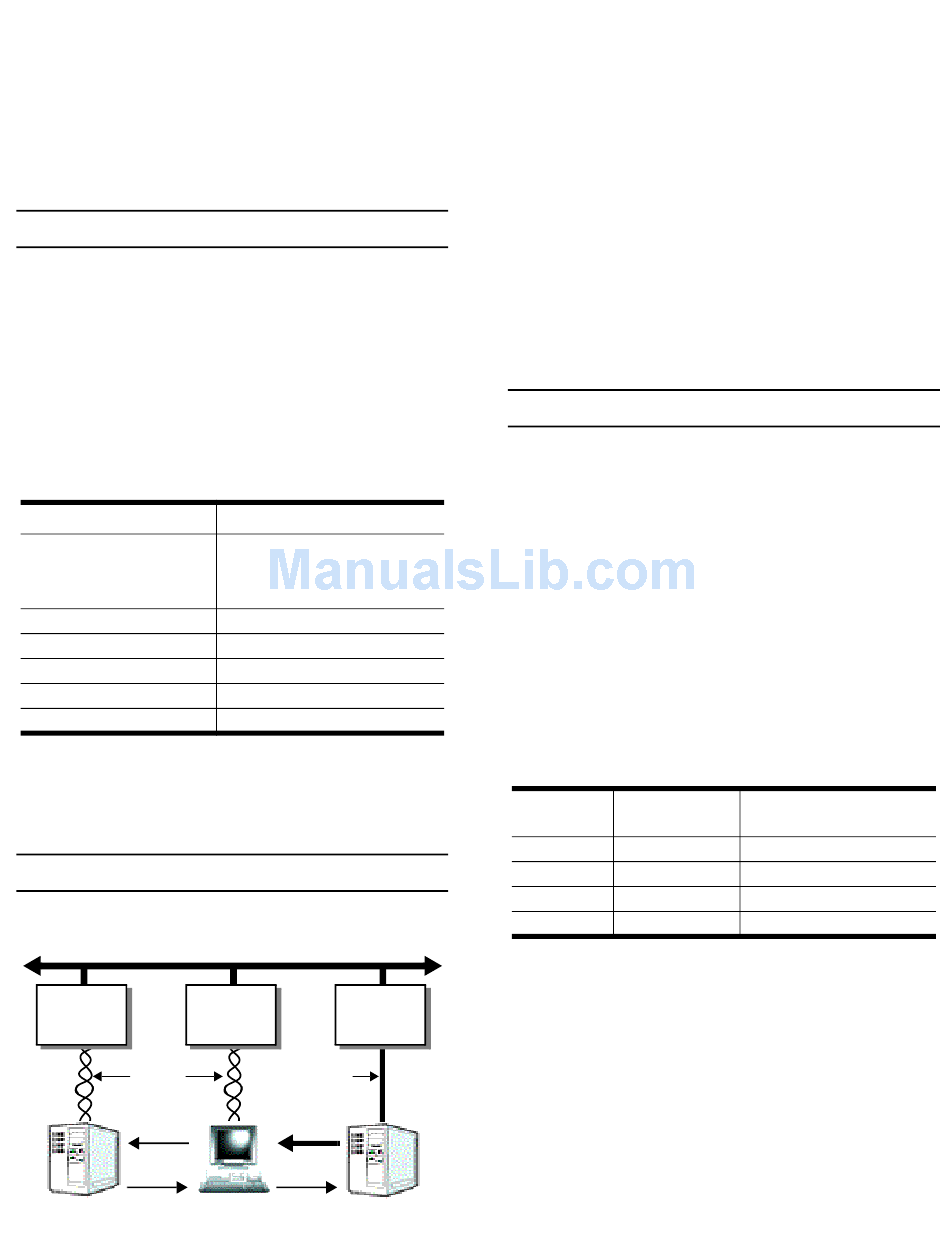

All V.90 modems are analog line devices. The following
figure shows when you can and cannot achieve 56 Kbps.
Digital Telephone Network
Telco
Office
Analog
Lines
33.6K
Data
Rate
33.6K
V.90
Server
RocketModem™ i V.90
Hardware Installation Card
®
RocketModem Support
V.90, K56Plus, V.34,
V.32turbo, V.32bis, V.32,
V.22bis, V.23, V.21, Bell
212A, Bell 183
V.42, MNP2-4, MNP10
V.42bis, MNP5
Group 3
Class 1.0 and Class 2
Software controlled
Telco Telco
Office Office
Digital
Line
56K
Data
Rate
33.6K
V.90 Digital
User Server
• V.90 modems can receive data at rates up to 56 Kbps,
provided the data is being transmitted by a digital
modem on a digital (e.g., T1 or ISDN) line.
• V.90 modems can send data over analog (twisted
pair) phone lines at a maximum rate of 33.6 Kbps—
even if communicating with other V.90 modems.
• The actual data rate achieved depends on the age
and condition of the analog phone lines, and may be
lower than 33.6 Kbps.
European: Before Installing Hardware
CAUTION
Before installing this card, ensure that the power drawn
by this card, together with the host and any auxiliary
cards drawing power from the host, is within the rating
of the host power supply. Equipment must be installed
such that, with the exception of connections to the host,
the clearance and creepage distances shown in the
following table are maintained between the card and
other assemblies that use or generate the voltages
shown in the table. The larger distances shown in
(brackets) apply where the local environment within the
host is subject to conductive pollution or dry non-
conductive pollution which could become conductive due
to condensation (Pollution Degree 3 environments).
Failure to maintain these minimum distances would
invalidate the approval.
Note: Obtain advice from a telecommunications safety
engineer for a host or other expansion cards fitted
in the host using or generating voltages greater
than 300 V (rms or dc).
Minimum
Creepage
Clearance
2.0 mm 2.4 (3.8) mm
2.6 mm 3.0 (4.8) mm
4.0 mm 5.0 (8.0) mm
4.0 mm 6.4 (10.0) mm
Voltage
Up to 50 Vrms or Vdc
Up to 125 Vrms or Vdc
Up to 250 Vrms or Vdc
Up to 300 Vrms or Vdc
