PANEL DESCRIPTION

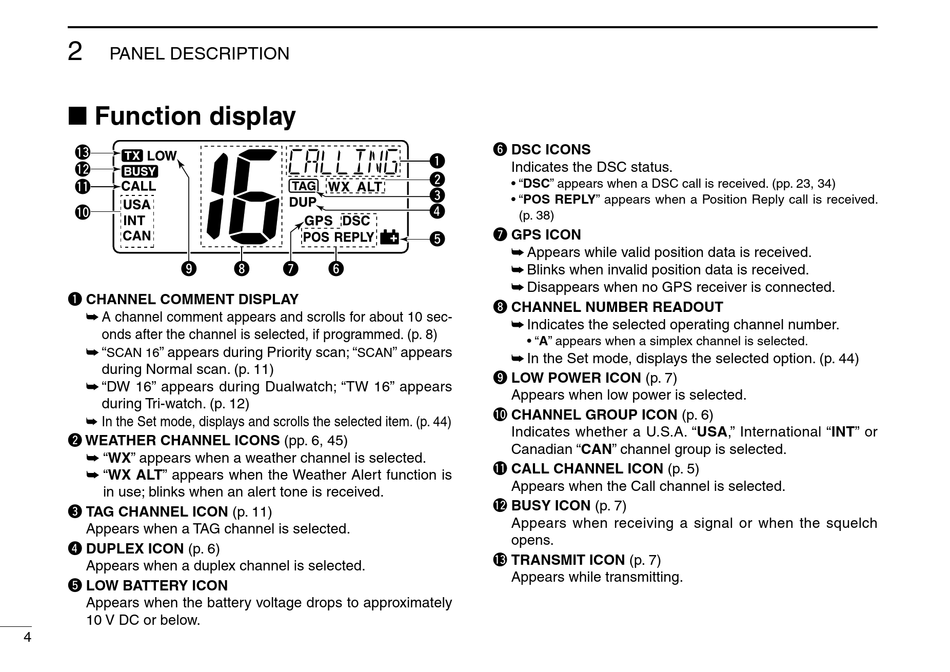

n Function display
!3
!2
!1
!0
o
q CHANNEL COMMENT DISPLAY
➥ A channel comment appears and scrolls for about 10 sec-
onds after the channel is selected, if programmed. (p. 8)
➥ " " appears during Priority scan; "
SCAN 16
during Normal scan. (p. 11)
➥ "DW 16" appears during Dualwatch; "TW 16" appears
during Tri-watch. (p. 12)
➥ In the Set mode, displays and scrolls the selected item. (p. 44)
w WEATHER CHANNEL ICONS (pp. 6, 45)
➥ "WX" appears when a weather channel is selected.
➥ "WX ALT" appears when the Weather Alert function is
in use; blinks when an alert tone is received.
e TAG CHANNEL ICON (p. 11)
Appears when a TAG channel is selected.
r DUPLEX ICON (p. 6)
Appears when a duplex channel is selected.
t LOW BATTERY ICON
Appears when the battery voltage drops to approximately
10 V DC or below.
4
i u y
" appears
SCAN
y DSC ICONS
q
Indicates the DSC status.
w
• "DSC" appears when a DSC call is received. (pp. 23, 34)
e
• "POS REPLY" appears when a Position Reply call is received.
r
(p. 38)
u GPS ICON
t
➥ Appears while valid position data is received.
➥ Blinks when invalid position data is received.
➥ Disappears when no GPS receiver is connected.
i CHANNEL NUMBER READOUT
➥ Indicates the selected operating channel number.
• "A" appears when a simplex channel is selected.
➥ In the Set mode, displays the selected option. (p. 44)
o LOW POWER ICON (p. 7)
Appears when low power is selected.
!0 CHANNEL GROUP ICON (p. 6)
Indicates whether a U.S.A. "USA," International "INT" or
Canadian "CAN" channel group is selected.
!1 CALL CHANNEL ICON (p. 5)
Appears when the Call channel is selected.
!2 BUSY ICON (p. 7)
Appears when receiving a signal or when the squelch
opens.
!3 TRANSMIT ICON (p. 7)
Appears while transmitting.
