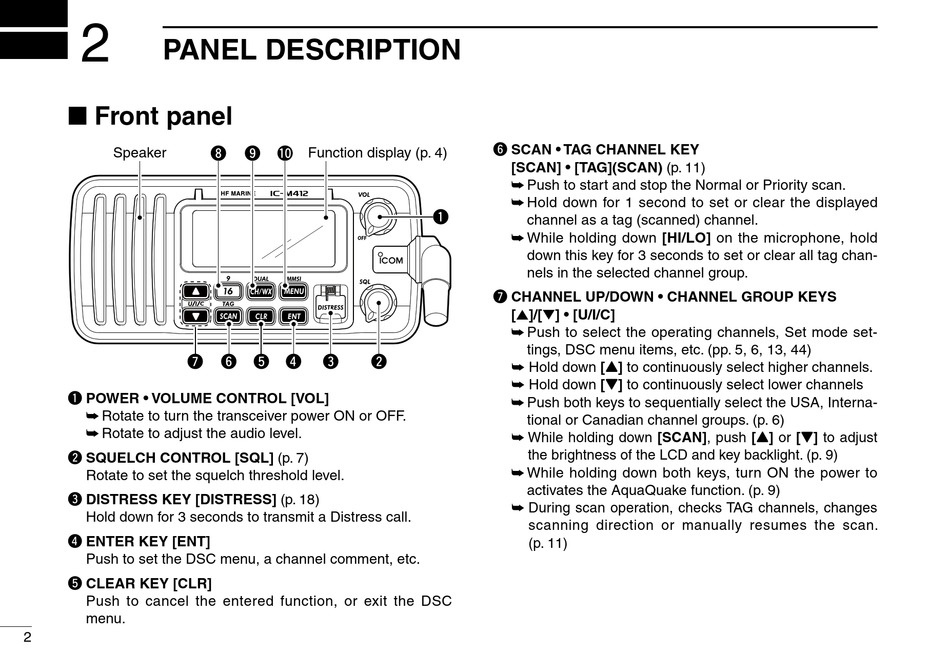

PANEL DESCRIPTION

n Front panel
Speaker
u
q POWER • VOLUME CONTROL [VOL]
➥ Rotate to turn the transceiver power ON or OFF.
➥ Rotate to adjust the audio level.
w SQUELCH CONTROL [SQL] (p. 7)
Rotate to set the squelch threshold level.
e DISTRESS KEY [DISTRESS] (p. 18)
Hold down for 3 seconds to transmit a Distress call.
r ENTER KEY [ENT]
Push to set the DSC menu, a channel comment, etc.
t CLEAR KEY [CLR]
Push to cancel the entered function, or exit the DSC
menu.
2
Function display (p. 4)
i o !0
y t r e w
y SCAN • TAG CHANNEL KEY
[SCAN] • [TAG](SCAN) (p. 11)
➥ Push to start and stop the Normal or Priority scan.
➥ Hold down for 1 second to set or clear the displayed
q
channel as a tag (scanned) channel.
➥ While holding down [HI/LO] on the microphone, hold
down this key for 3 seconds to set or clear all tag chan-
nels in the selected channel group.
u CHANNEL UP/DOWN • CHANNEL GROUP KEYS
[s]/[t] • [U/I/C]
➥ Push to select the operating channels, Set mode set-
tings, DSC menu items, etc. (pp. 5, 6, 13, 44)
➥ Hold down [Y] to continuously select higher channels.
➥ Hold down [Z] to continuously select lower channels
➥ Push both keys to sequentially select the USA, Interna-
tional or Canadian channel groups. (p. 6)
➥ While holding down [SCAN], push [Y] or [Z] to adjust
the brightness of the LCD and key backlight. (p. 9)
➥ While holding down both keys, turn ON the power to
activates the AquaQuake function. (p. 9)
➥ During scan operation, checks TAG channels, changes
scanning direction or manually resumes the scan.
(p. 11)
